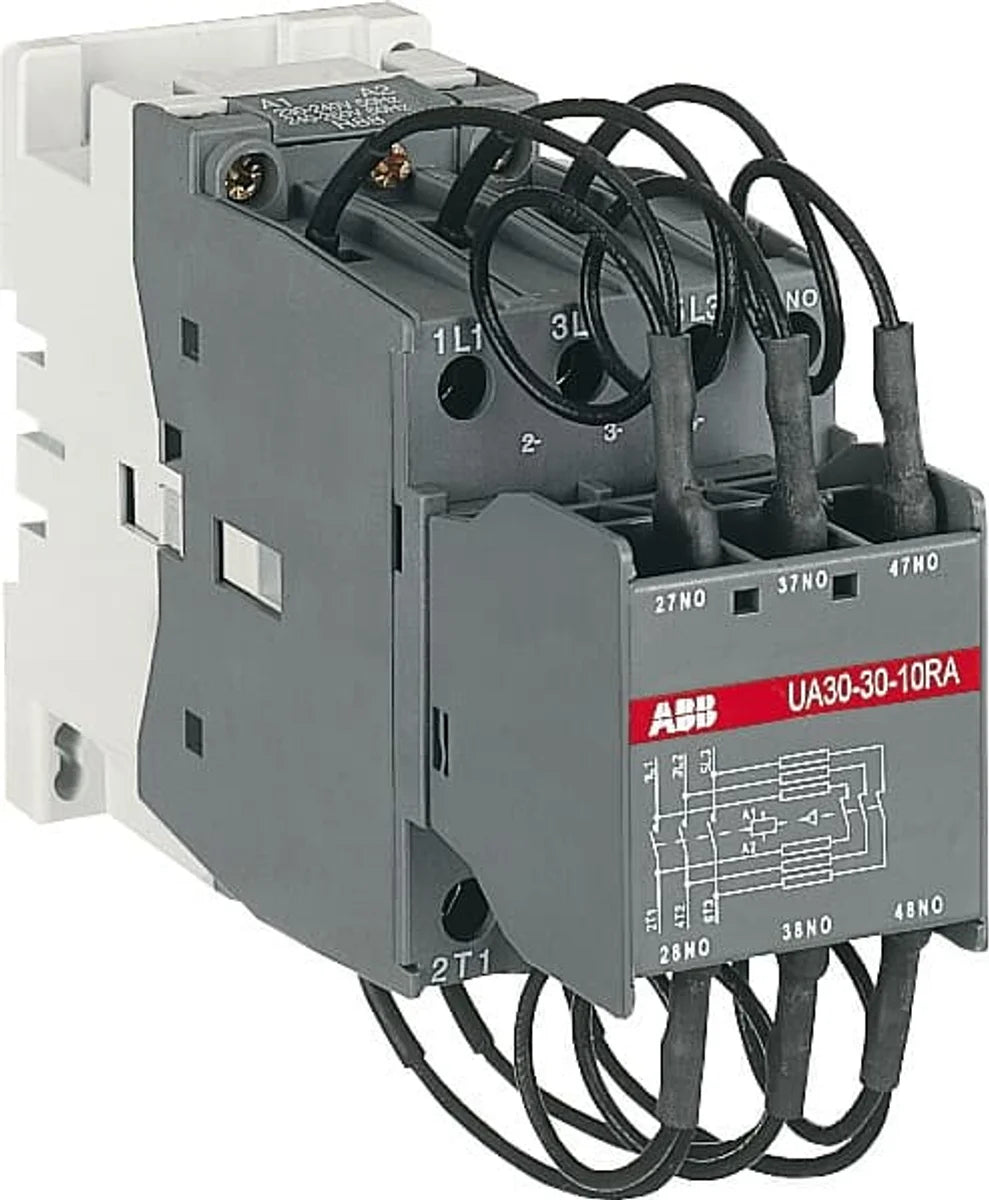

ABB 1SBL281024R8010 UA30-30-10RA 220-230V 50Hz / 230-240V 60Hz 3-Pole Contactor
Brand:
ABB
Reference No:
1SBL281024R8010
Catalog No:
UA30-30-10RA 220-230V 50Hz / 230-240V 60Hz
Series:
UA
Tariff Code (GTIP):
85364900
Stock: 275
Delivery time: 1 business day(s)
Shipping Origin: Turkey EXW
$121.95
- Description
The ABB UA30-30-10RA 220-230V 50Hz / 230-240V 60Hz (SKU: 1SBL281024R8010) is a 3-pole industrial power contactor from ABB's UA series, designed for reliable motor switching and load control in demanding industrial environments. With a dual-rated coil voltage of 220–230V at 50Hz and 230–240V at 60Hz, the UA30-30-10RA 220-230V 50Hz / 230-240V 60Hz is suitable for both European and American grid frequencies, offering genuine installation flexibility. Compact and robust at 135 × 155 × 63 mm and just 0.81 kg, this contactor is built to IEC 60947-4 standards for motor control applications.
Technical Specifications
| Catalog Number | UA30-30-10RA 220-230V 50Hz / 230-240V 60Hz |
| SKU | 1SBL281024R8010 |
| Brand | ABB |
| Series | UA |
| Model Number | UA30-30-10RA |
| Product Type | Contactor |
| Number of Poles | 3 |
| Coil Voltage (50Hz) | 220–230V AC |
| Coil Voltage (60Hz) | 230–240V AC |
| Dimensions (H × W × D) | 135 × 155 × 63 mm |
| Weight | 0.81 kg |
| EAN / Barcode | 3471522302809 |
Certifications & Standards
- CE: Conformité Européenne — meets EU safety, health, and environmental requirements
- UKCA: UK Conformity Assessed — approved for the Great Britain market post-Brexit
- CCC: China Compulsory Certification — mandatory for products sold in China
- CQC: China Quality Certification — voluntary quality mark for the Chinese market
- UL: Underwriters Laboratories — North American safety certification
- IEC/EN 60947-1: General rules for low-voltage switchgear and controlgear
- IEC/EN 60947-4: Electromechanical contactors and motor starters
- IEC 60947-5: Control circuit devices and switching elements
- IEC 60715: Dimensions for low-voltage switchgear and controlgear assemblies — DIN rail mounting
- IEC 60529: Degrees of protection provided by enclosures (IP Code)
- IEC 60068-2: Environmental testing — climatic and mechanical durability
- REACH: EU regulation on Registration, Evaluation, Authorisation and Restriction of Chemicals
- RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
- WEEE: Waste Electrical and Electronic Equipment Directive — responsible end-of-life disposal
Technical Details
Catalog No
UA30-30-10RA 220-230V 50Hz / 230-240V 60Hz
Number of Poles
3
Delivery Date (Days)
1 days
Model Number
UA30-30-10RA
Tariff Code
85364900
