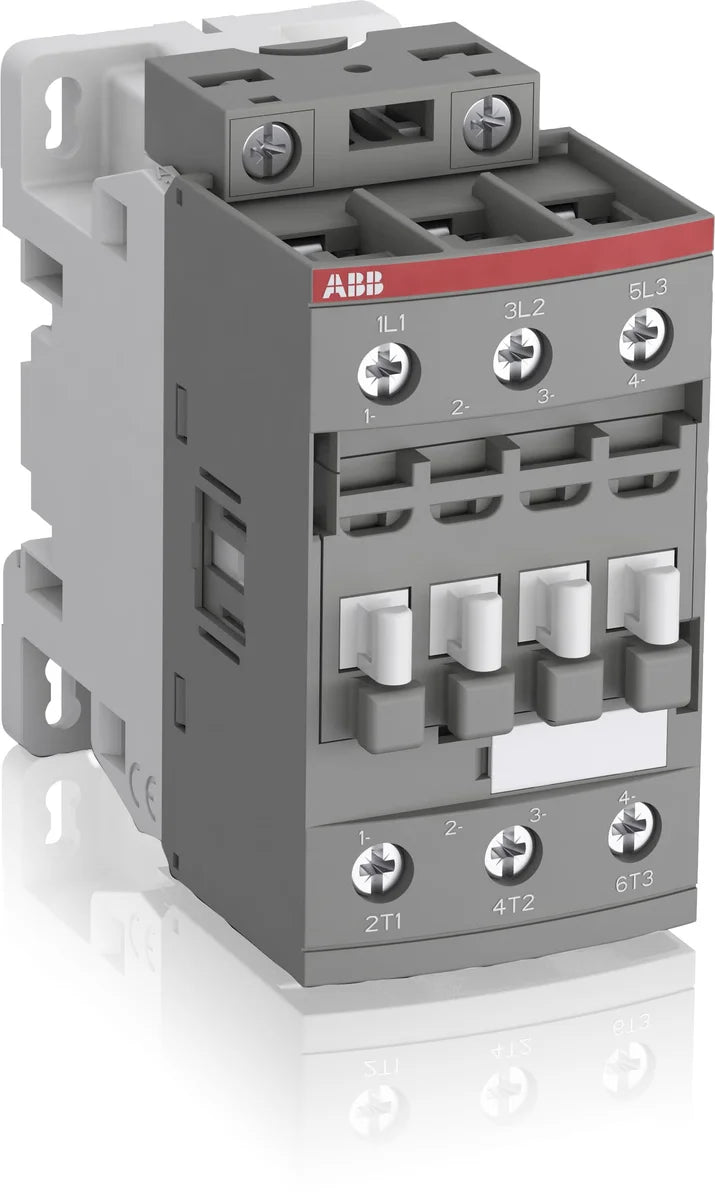

ABB 1SBL237001R1100 AF26-30-00-11 3-Pole 45A 690V 11kW 24-60V AC/DC Coil Power Contactor AC Switching

The ABB AF26-30-00-11 (SKU: 1SBL237001R1100) is a 3-pole power contactor designed for AC switching applications in industrial automation and control panel environments. Part of ABB's AF-series, this contactor delivers a rated current of 45 A at up to 690 V AC, with an 11 kW power rating and a wide-range coil accepting 24–60 V AC (50/60 Hz) and 20–60 V DC — enabling flexible integration across diverse power supply configurations. Its compact 45 × 86 × 86 mm footprint and lightweight 0.31 kg construction make it ideal for space-constrained installations on DIN rail or panel assemblies.

Technical Specifications

Certifications & Standards

• CE: European Conformity — meets EU safety, health, and environmental requirements
• CCC: China Compulsory Certification for electrical equipment
• CQC: China Quality Certification Centre voluntary product certification
• ABS: American Bureau of Shipping type approval for marine applications
• BV: Bureau Veritas marine and industrial certification
• CB: IECEE CB Scheme international safety certification
• CSA: Canadian Standards Association certification
• UL: Underwriters Laboratories product safety certification
• UL 60335-2-40: UL standard for safety of heat pumps and air conditioners
• UL 60335-2-40 LZGH2 A2L: UL certification for A2L refrigerant applications
• UL 60947-4-1: UL standard for electromechanical contactors and motor starters
• CSA C22.2 No. 60335-2-40: Canadian standard for heat pump and A/C equipment
• CSA C22.2 No. 60335-2-40 LZGH2 A2L: CSA certification for A2L refrigerant applications
• CSA C22.2 No. 60947-4-1: Canadian standard for contactors and motor starters
• CSA C22.2 No. 60335: CSA standard for household and similar electrical appliances
• CSA C22.2 No. 60947: CSA standard for low-voltage switchgear and controlgear
• IEC 60947-1 / EN 60947-1: General rules for low-voltage switchgear and controlgear
• IEC 60947-4 / EN 60947-4: Contactors and motor starters — electromechanical contactors
• IEC/EN 60947-1: Harmonised international/European standard for low-voltage switchgear
• IEC/EN 60947-4: Harmonised international/European standard for contactors and starters
• IEC 60068-2: Environmental testing — mechanical and climatic test methods
• EN 45555-94: General methods for assessing the energy-related aspects of networked products
• REACH: EU regulation on chemical substances — compliance verified
• RoHS: Restriction of Hazardous Substances Directive compliance
• WEEE: Waste Electrical and Electronic Equipment Directive compliance
• UKCA: UK Conformity Assessed marking for Great Britain market
