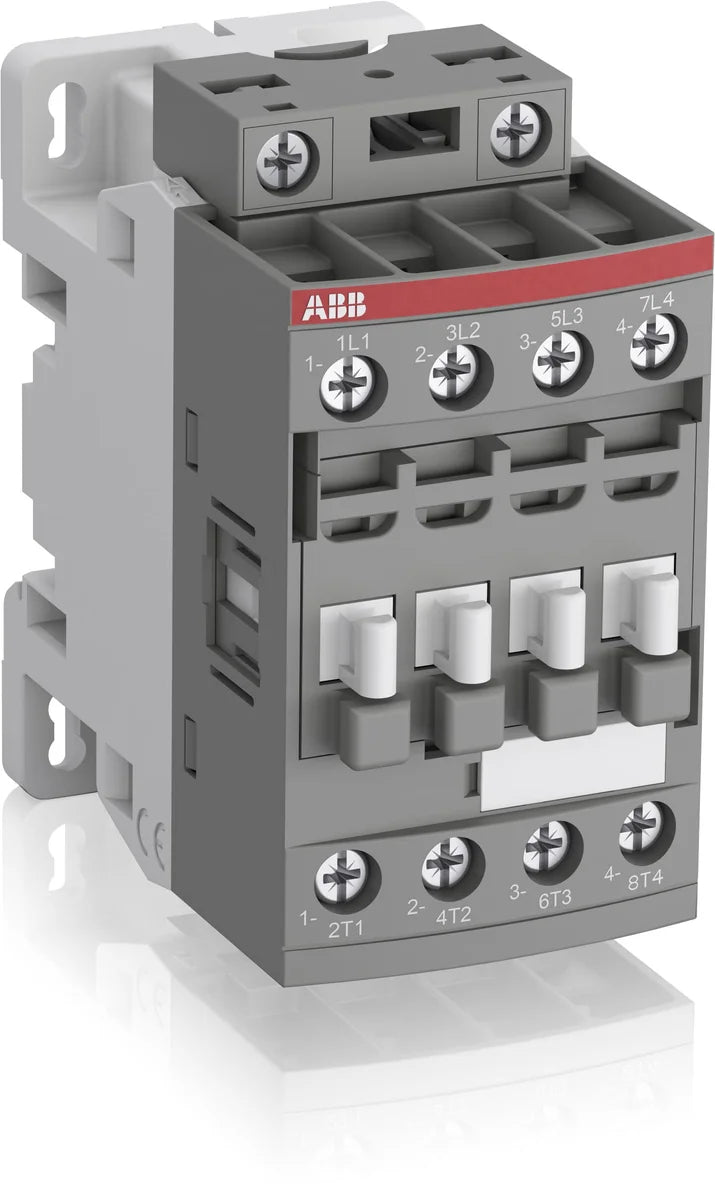

ABB 1SBL177201R1100 AF16-40-00-11 4-Pole 30A 690V AC 24-60V Coil Power Contactor AC Switching
Brand:
ABB
Reference No:
1SBL177201R1100
Catalog No:
AF16-40-00-11
Series:
AF
Tariff Code (GTIP):
85364900
Stock: 2
Delivery time: 1 business day(s)
Shipping Origin: Turkey EXW
$33.83
- Description
The ABB AF16-40-00-11 power contactor (SKU: 1SBL177201R1100) is a 4-pole AC switching contactor rated at 30 A and 690 V IEC, designed for reliable motor switching and load control in industrial automation and control panel applications. With a wide-range coil accepting 24–60 V AC (50/60 Hz) and 20–60 V DC, the AF16-40-00-11 offers exceptional flexibility across global installations. Rated at 7.5 kW at 400 V AC, its compact 45 × 86 × 77 mm footprint and 0.27 kg weight make it an efficient choice for space-constrained panels.
Technical Specifications
| Catalog Number | AF16-40-00-11 |
| SKU | 1SBL177201R1100 |
| Brand | ABB |
| Series | AF |
| Model | AF16 |
| EAN / Barcode | 3471523115118 |
| Product Type | Power Contactor, AC Switching |
| Number of Poles | 4 |
| Rated Current | 30 A |
| Rated Voltage | 690 V IEC / 600 V UL |
| Motor Rating | 7.5 kW @ 400 V AC |
| Coil Voltage (AC) | 24–60 V, 50/60 Hz |
| Coil Voltage (DC) | 20–60 V DC |
| Dimensions (W × H × D) | 45 mm × 86 mm × 77 mm |
| Weight | 0.27 kg |
Certifications & Standards
- CE: European Conformity — meets EU electrical equipment directives
- UKCA: UK Conformity Assessed — compliant for Great Britain market
- UL: UL Listed for use in North American applications
- UL 60947-1: Low-voltage switchgear and controlgear — general rules
- UL 60947-4-1: Contactors and motor starters
- UL 60335-2-40: Household and similar electrical appliances — HVAC/R
- UL 60335-2-40 LZGH2A2L: UL recognized component mark for HVAC/R
- CSA: Canadian Standards Association certified
- CSA C22.2 No. 60335-2-40: CSA standard for HVAC/R appliances
- CSA C22.2 No. 60335-2-40 LZGH2A2L: CSA recognized component mark
- CSA C22.2 No. 60947: Canadian standard for low-voltage switchgear
- CAN/CSA C22.2 No. 60947-1: General rules for low-voltage switchgear
- CAN/CSA C22.2 No. 60947-4-1: Contactors and motor starters
- IEC 60947-1 / EN 60947-1: Low-voltage switchgear — general rules
- IEC 60947-4 / EN 60947-4: Contactors and motor starters
- IEC/EN 60947-1: Low-voltage switchgear general rules (combined)
- IEC/EN 60947-4: Contactors and motor starters (combined)
- IEC 60068-2: Environmental testing for electrotechnical products
- CCC: China Compulsory Certification
- CQC: China Quality Certification Centre
- ABS: American Bureau of Shipping — marine type approval
- BV: Bureau Veritas — international classification society approval
- CB: CB Scheme — international electrotechnical safety testing
- EN 45555: General methods for assessment of the ability to recover resources from electrical and electronic equipment
- EN 45555-92: Supplementary standard for resource recovery assessment
- REACH: Compliant with EU chemical substance regulations (ECHA)
- RoHS: Restriction of Hazardous Substances — lead-free, compliant
- WEEE: Waste Electrical and Electronic Equipment directive compliant
Applications & Use Cases
- Motor switching and control in HVAC systems and air-handling units
- Industrial automation control panels requiring compact 4-pole contactors
- Pump and fan motor control in building services and water treatment
- Machine tool and conveyor line switching applications
- Refrigeration and air-conditioning equipment (UL 60335-2-40 rated)
- Marine and offshore installations (ABS, BV approved)
- North American (UL/CSA) and international (IEC/CE) projects requiring dual compliance
Technical Details
Catalog No
AF16-40-00-11
Number of Poles
4
Delivery Date (Days)
1 days
Model Number
AF16-40-00-11
Tariff Code
85364900
