ABB 1SBL157001R1310 AF12-30-10-13 3-Pole 12A 690V AC 100-250V Coil Power Contactor AC Switching

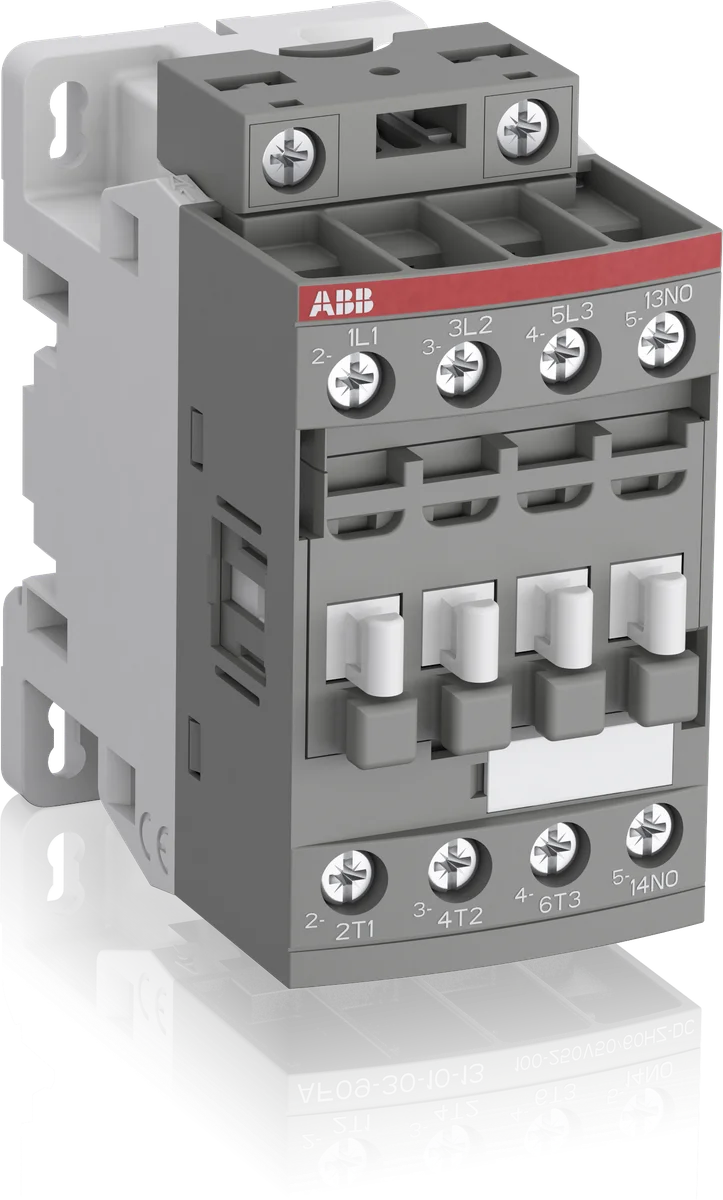

The ABB AF12-30-10-13 power contactor (SKU: 1SBL157001R1310) is a 3-pole AC switching contactor rated at 28 A and 690 V IEC, designed for demanding industrial motor control and switching applications. Part of ABB's versatile AF-series lineup, the AF12-30-10-13 features a wide-range coil accepting 100–250 V AC/DC (50/60 Hz), eliminating the need for multiple coil variants across global installations. Rated at 5.5 kW at 400 V AC (AC-3) and 7-1/2 hp at 480 V UL, this compact contactor fits tightly in control panels with dimensions of only 45 mm × 86 mm × 77 mm and a lightweight 0.27 kg body.

Technical Specifications

Certifications & Standards

• CE: European Conformity — meets EU safety, health, and environmental requirements
• UKCA: UK Conformity Assessed — compliance for Great Britain market
• UL: UL Listed — Underwriters Laboratories safety certification for North America
• UL 60947-4-1: UL standard for low-voltage contactors and motor starters
• UL 60335-2-40: UL standard for heat pumps, air-conditioners, and dehumidifiers (ref: LZGH2A2L)
• CSA: CSA Group certified — Canadian Standards Association approval
• CSA C22.2 No. 60947-4-1: Canadian standard for low-voltage contactors and motor starters
• CSA C22.2 No. 60335-2-40 (LZGH2A2L): CSA standard for HVAC switching equipment
• CSA C22.2 No. 60335: CSA household and commercial electrical equipment standard
• CSA C22.2 No. 60947: CSA low-voltage switchgear and controlgear standard
• CCC: China Compulsory Certification — mandatory certification for the Chinese market
• CQC: China Quality Certification — voluntary quality standard for electrical products in China
• ABS: American Bureau of Shipping — marine and offshore equipment certification
• BV: Bureau Veritas — international classification and certification
• CB: CB Scheme (IEC System for Conformity Testing) — international safety certification
• IEC 60947-1 / EN 60947-1: General rules for low-voltage switchgear and controlgear
• IEC 60947-4 / EN 60947-4: Standard for contactors and motor starters
• IEC 60947-5: Control circuit devices and switching elements
• IEC 60068-2-27: Environmental testing — mechanical shock
• EN 45555: General methods for the assessment of the ability to recycle and recover electrical and electronic equipment
• EN 45555-92: Supplementary assessment standard for recyclability and recoverability
• REACH: EU regulation on Registration, Evaluation, Authorisation and Restriction of Chemicals
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• WEEE: Waste Electrical and Electronic Equipment Directive compliance

Applications & Use Cases

• Motor switching and control in industrial automation panels
• HVAC systems — air-conditioners, heat pumps, compressors, and fans
• Machine tool and conveyor belt motor control
• Pump and compressor on/off switching in process industries
• OEM control panels requiring compact, globally certified contactors
• Marine and offshore installations (ABS/BV certified)
