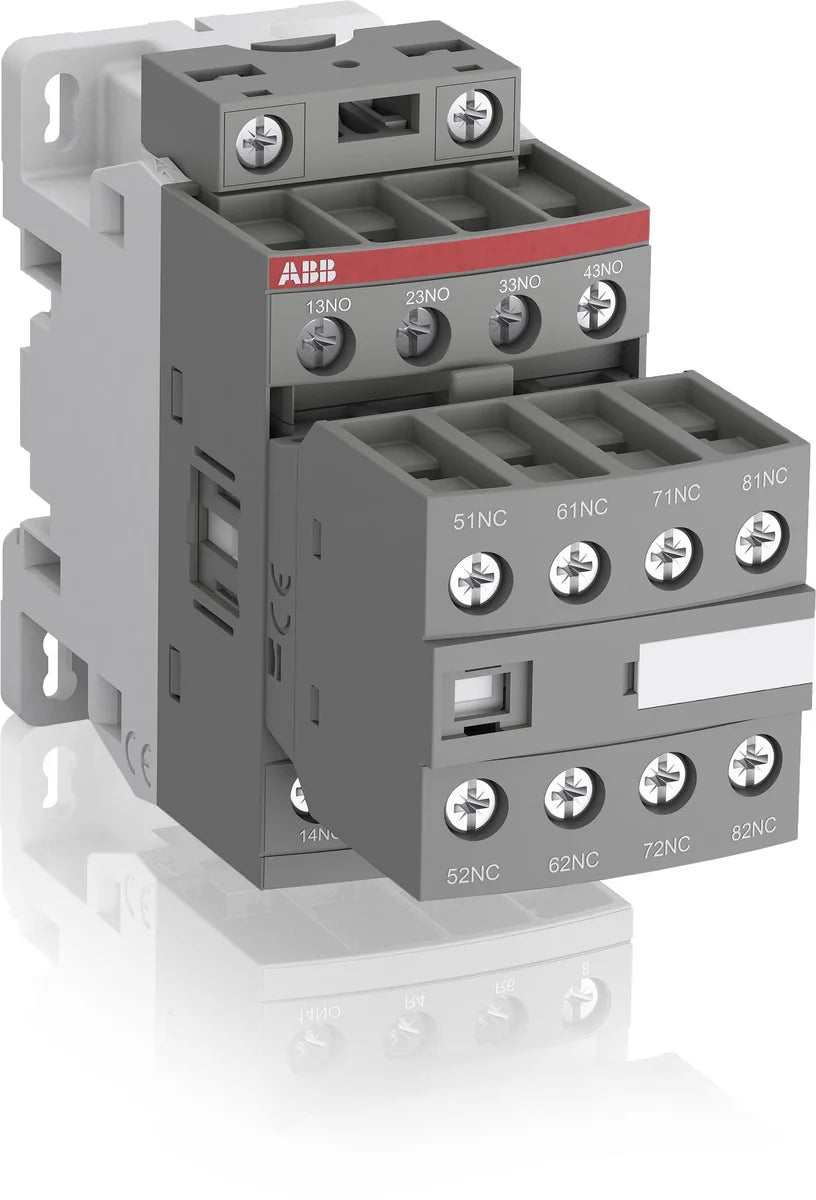

ABB 1SBH137001R1353 NF53E-13 8-Pole 100-250V AC/DC 690V IEC Contactor Relay

The ABB NF53E-13 contactor relay (SKU: 1SBH137001R1353) is an 8-pole industrial control relay designed for signalling, interlocking, and auxiliary switching applications in control panels and automation systems. Rated up to 690 V IEC / 600 V UL, the NF53E-13 accepts a wide-range coil voltage of 100–250 V AC/DC (50/60 Hz), making it highly versatile across global installations. Compact at just 87 × 113 × 47 mm and weighing only 0.32 kg, it fits easily into space-constrained enclosures.

Technical Specifications

Certifications & Standards

• IEC 60947-5-1: Low-voltage switchgear — control circuit devices and switching elements
• IEC 60947-1 / EN 60947-1 / IEC/EN 60947-1 / IEC60947-1: General rules for low-voltage switchgear and controlgear
• IEC 60947-5 / EN 60947-5 / IEC/EN 60947-5: Control circuit devices and switching elements
• IEC 60068-227: Environmental testing standard
• CE: Conformité Européenne — meets EU safety, health, and environmental requirements
• UKCA: UK Conformity Assessed — compliant for Great Britain market
• UL: UL Listed — Underwriters Laboratories safety certification (North America)
• UL 508: Industrial control equipment standard
• UL 60335-2-40 LZGH2 A2L: UL standard for particular requirements (A2L refrigerant applications)
• CSA C22.2 No.14-13: Industrial control equipment — Canadian Standards Association
• CSA C22.2 No.60335-2-40 LZGH2 A2L: CSA standard for A2L refrigerant applications
• CSA C22.2 No.60335: CSA household and similar electrical appliances standard
• CSA C22.2 No.14: CSA industrial control equipment standard
• CSA: Canadian Standards Association certification
• DNV: Det Norske Veritas — marine and offshore type approval
• LR: Lloyd's Register — marine type approval
• RINA: Registro Italiano Navale — marine classification approval
• RMRS: Russian Maritime Register of Shipping — marine approval
• EN45555: General methods for the assessment of the ability to recover resources from electrical and electronic equipment
• EN45555-92: Supplementary standard for resource recovery assessment
• REACH: Compliant with EU regulation on registration, evaluation, authorisation and restriction of chemicals
• RoHS: Restriction of Hazardous Substances — compliant for EU and global markets
• WEEE: Waste Electrical and Electronic Equipment directive compliant
• CCC: China Compulsory Certification — approved for the Chinese market

Applications & Use Cases

• Control panel interlocking and signalling circuits
• Industrial automation and PLC output expansion
• Motor control centres requiring auxiliary switching
• Marine and offshore control systems (DNV, LR, RINA, RMRS approved)
• HVAC equipment with A2L refrigerants (UL/CSA 60335-2-40 LZGH2 A2L)
• Multi-voltage global installations (100–250 V AC/DC coil)
