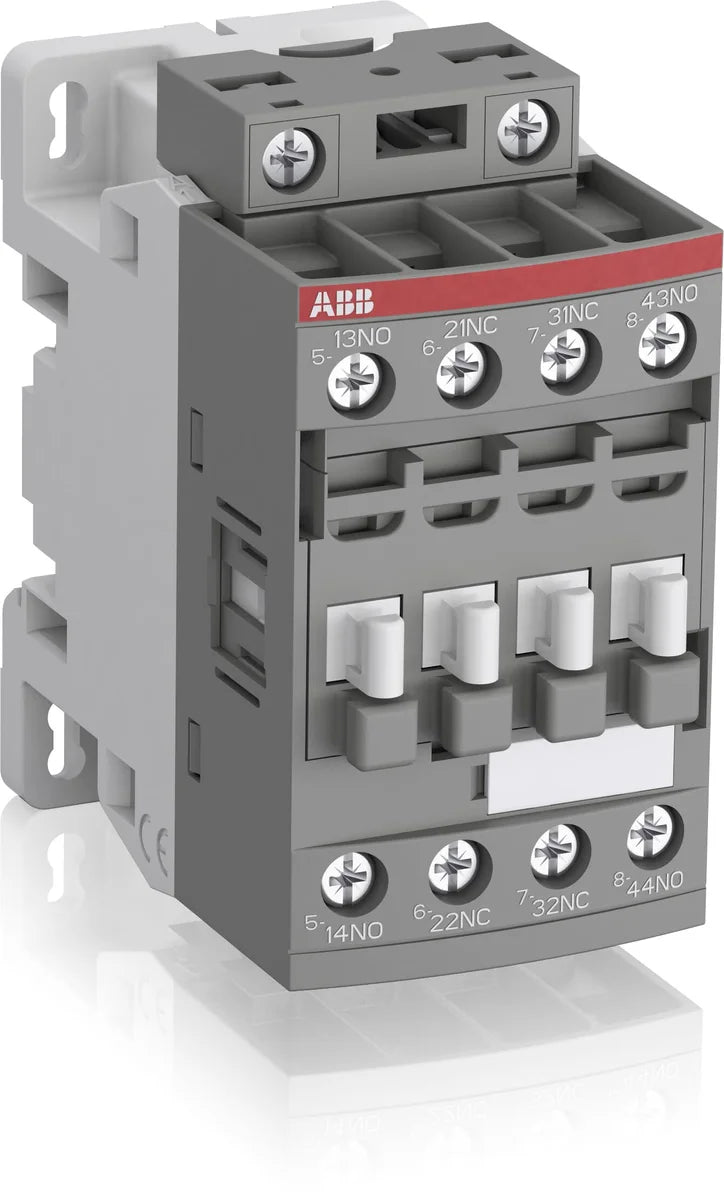

ABB 1SBH137001R1322 NF22E-13 4-Pole 690V AC/DC 100-250V Coil Contactor Relay
Brand:
ABB
Reference No:
1SBH137001R1322
Catalog No:
NF22E-13
Series:
NF
Tariff Code (GTIP):
85364900
Stock: 250
Delivery time: 1 business day(s)
Shipping Origin: Turkey EXW
$18.87
- Description
The ABB NF22E-13 contactor relay (SKU: 1SBH137001R1322) is a 4-pole industrial control relay rated at 690 V IEC / 600 V UL, designed for demanding control circuit and automation panel applications. Featuring a wide-range coil voltage of 100–250 V AC/DC (50/60 Hz), the NF22E-13 offers exceptional versatility across global installations. Compact in form at 87 × 79 × 47 mm and weighing just 0.27 kg, this ABB NF Series relay delivers reliable switching performance in space-constrained control panels.
Technical Specifications
| Catalog Number | NF22E-13 |
| SKU | 1SBH137001R1322 |
| Brand | ABB |
| Series | NF |
| EAN / Barcode | 3471523100138 |
| Product Type | Contactor Relay |
| Number of Poles | 4 |
| Rated Voltage | 690 V IEC / 600 V UL |
| Coil Voltage | 100–250 V AC/DC, 50/60 Hz |
| Dimensions (W × D × H) | 87 × 79 × 47 mm |
| Weight | 0.27 kg |
Certifications & Standards
- CE: Conformité Européenne — meets EU safety, health, and environmental requirements
- UKCA: UK Conformity Assessed — compliant for Great Britain market
- UL: UL Listed for North American safety requirements
- DNV: Det Norske Veritas — approved for marine and offshore applications
- KC: Korea Certification mark
- LR: Lloyd's Register — marine type approval
- RINA: Registro Italiano Navale — Italian naval register approval
- RMRS: Russian Maritime Register of Shipping approval
- IEC 60947-5-1: Low-voltage switchgear — control circuit devices and switching elements
- IEC 60947-1: General rules for low-voltage switchgear and controlgear
- EN 60947-1: European harmonised standard for low-voltage switchgear — general rules
- IEC 60947-5: Control circuit devices and switching elements
- EN 60947-5: European harmonised standard — control circuit devices
- IEC/EN 60947-1: Combined IEC/EN general rules for low-voltage switchgear
- IEC/EN 60947-5: Combined IEC/EN standard for control circuit devices
- IEC60947-1: Low-voltage switchgear and controlgear general rules
- IEC 60068-227: Environmental testing standard
- UL 60335-2-40 LZGH2A2L: UL standard for safety of household appliances — particular requirements
- UL 508: UL standard for industrial control equipment
- CSA C22.2 No.60335-2-40 LZGH2A2L: Canadian standard for household appliances — particular requirements
- CSA C22.2 No.14-13: Canadian standard for industrial control equipment
- CSA C22.2 No.60335: Canadian standard for household and similar electrical appliances
- CSA C22.2 No.14: Canadian standard for industrial control equipment
- CSA: Canadian Standards Association certified
- EN45555: General methods for the assessment of the ability to be repaired, reused, upgraded, and recycled
- EN45555-92: Sustainability requirements for electrical and electronic products
- REACH: Compliant with EU REACH regulation on chemical substances
- RoHS: Restriction of Hazardous Substances — EU Directive 2011/65/EU compliant
- WEEE: Waste Electrical and Electronic Equipment Directive compliant
- CCC: China Compulsory Certification
Applications & Use Cases
- Control circuit switching in industrial automation and motor control centres
- Machine building and OEM panel wiring requiring a wide coil voltage range
- Marine and offshore installations (DNV, LR, RINA, RMRS approved)
- HVAC and building management systems
- Process control panels in chemical, oil & gas, and water treatment plants
- Global export projects requiring multi-certification compliance (CE, UKCA, UL, CSA, CCC)
Technical Details
Catalog No
NF22E-13
Number of Poles
4
Delivery Date (Days)
1 days
Model Number
NF22E-13
Tariff Code
85364900
