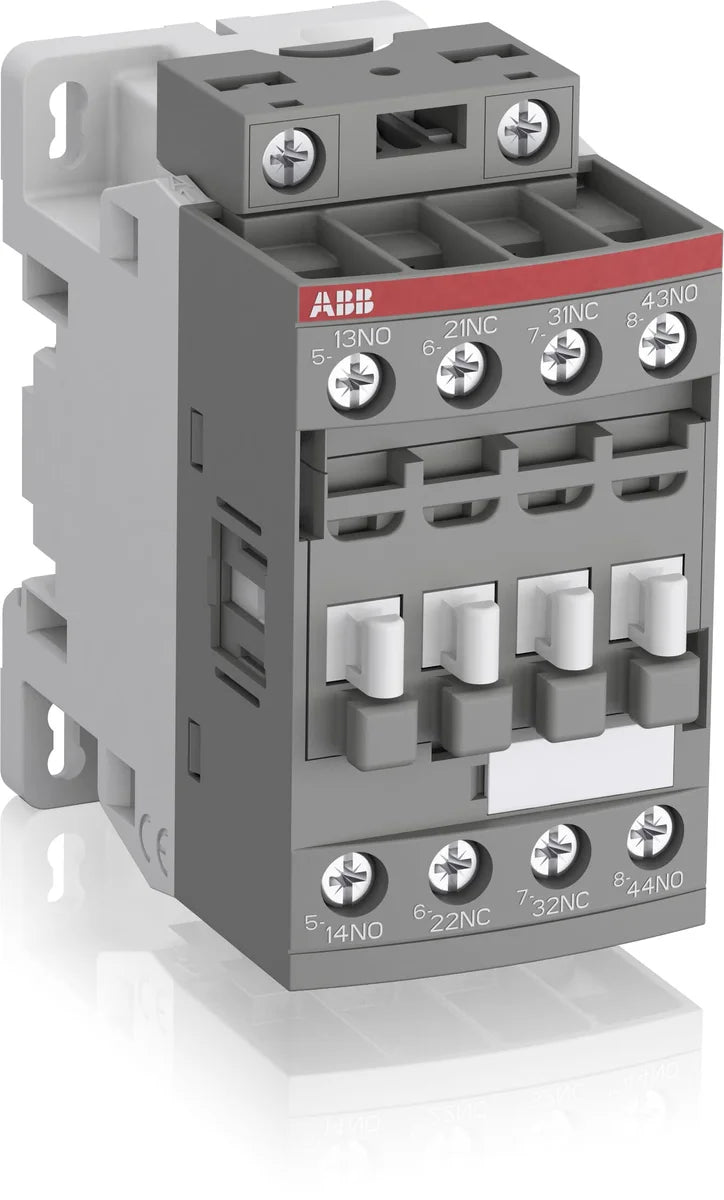

ABB 1SBH136001R2131 NFZ31E-21 24-60V AC/DC 4-Pole Contactor Relay
Brand:
ABB
Reference No:
1SBH136001R2131
Catalog No:
NFZ31E-21
Series:
NFZ
Tariff Code (GTIP):
85364900
Stock: 17
Delivery time: 1 business day(s)
Shipping Origin: Turkey EXW
$30.12
- Description
The ABB NFZ31E-21 contactor relay (SKU: 1SBH136001R2131) is a 4-pole control relay from the ABB NFZ series, designed for 24–60V AC (50/60Hz) and 20–60V DC coil operation. Compact at 87 × 79 × 47 mm and weighing just 0.31 kg, the NFZ31E-21 suits a wide range of industrial control panel and automation applications requiring reliable switching and signal interfacing.
Technical Specifications
| Catalog Number | NFZ31E-21 |
| SKU | 1SBH136001R2131 |
| Brand | ABB |
| Series | NFZ |
| Model Number | NFZ31E-21 |
| Product Type | Contactor Relay |
| Number of Poles | 4 |
| Coil Voltage (AC) | 24–60 V, 50/60 Hz |
| Coil Voltage (DC) | 20–60 V DC |
| Dimensions (H × W × D) | 87 × 79 × 47 mm |
| Weight | 0.31 kg |
| EAN | 3471523101814 |
Certifications & Standards
- CE: Conformité Européenne — European market compliance
- UKCA: UK Conformity Assessed — Great Britain market compliance
- CCC: China Compulsory Certification
- CQC: China Quality Certification
- DNV: Det Norske Veritas — marine and offshore approval
- KC: Korea Certification mark
- LR: Lloyd's Register — marine type approval
- RINA: Registro Italiano Navale — marine approval
- RMRS: Russian Maritime Register of Shipping
- UL: Underwriters Laboratories — UL 508 and UL 60335-2-40 LZGH2 A2L listed
- IEC 60947-5-1: Low-voltage switchgear — control circuit devices and switching elements
- IEC 60947-5: Low-voltage switchgear — control circuit devices (general)
- IEC 60947-1: Low-voltage switchgear and controlgear — general rules
- EN 60947-1: European harmonised standard — general rules for low-voltage switchgear
- EN 60947-5: European harmonised standard — control circuit devices
- IEC/EN 60947-1: Combined IEC/EN compliance for general switchgear rules
- IEC/EN 60947-5: Combined IEC/EN compliance for control circuit devices
- IEC 60068-2: Environmental testing standard
- SEMI F47-0706: Semiconductor equipment voltage sag immunity standard
- UL 508: Industrial control equipment standard
- UL 60335-2-40 LZGH2 A2L: Safety of household and similar appliances — heat pumps (A2L refrigerant)
- CSA C22.2 No.14-13: Industrial control equipment — Canadian standard
- CSA C22.2 No.60335-2-40 LZGH2 A2L: Canadian standard — heat pump appliances (A2L refrigerant)
- CSA C22.2 No.60335: Canadian standard — safety of household appliances
- CSA C22.2 No.14: Canadian standard — industrial control equipment (general)
- CSA: Canadian Standards Association certification
- EN45555: General methods for the assessment of the ability of electrical and electronic products to be repaired and to undergo preparation for reuse
- EN45555-92: Extended product sustainability assessment standard
- REACH: EU regulation on registration, evaluation and authorisation of chemicals
- RoHS: Restriction of Hazardous Substances — EU Directive 2011/65/EU compliant
- WEEE: Waste Electrical and Electronic Equipment Directive compliant
Applications & Use Cases
- Control panel interlocking and signal switching in industrial automation systems
- HVAC and refrigeration equipment control (A2L refrigerant-compatible applications)
- Semiconductor fabrication equipment requiring SEMI F47 voltage sag immunity
- Marine and offshore control systems (DNV, LR, RINA, RMRS approved)
- Motor starter auxiliary control circuits
- Building automation and energy management systems
Technical Details
Catalog No
NFZ31E-21
Number of Poles
4
Delivery Date (Days)
1 days
Model Number
NFZ31E-21
Tariff Code
85364900
