- ABB 1SBH101001R2622 NS22E-26 230V 50/60Hz 4-Pole Contactor Relay ABB 1SBH101001R2622 NS22E-26 230V 50/60Hz 4-Pole Contactor Relay
% $-15.95

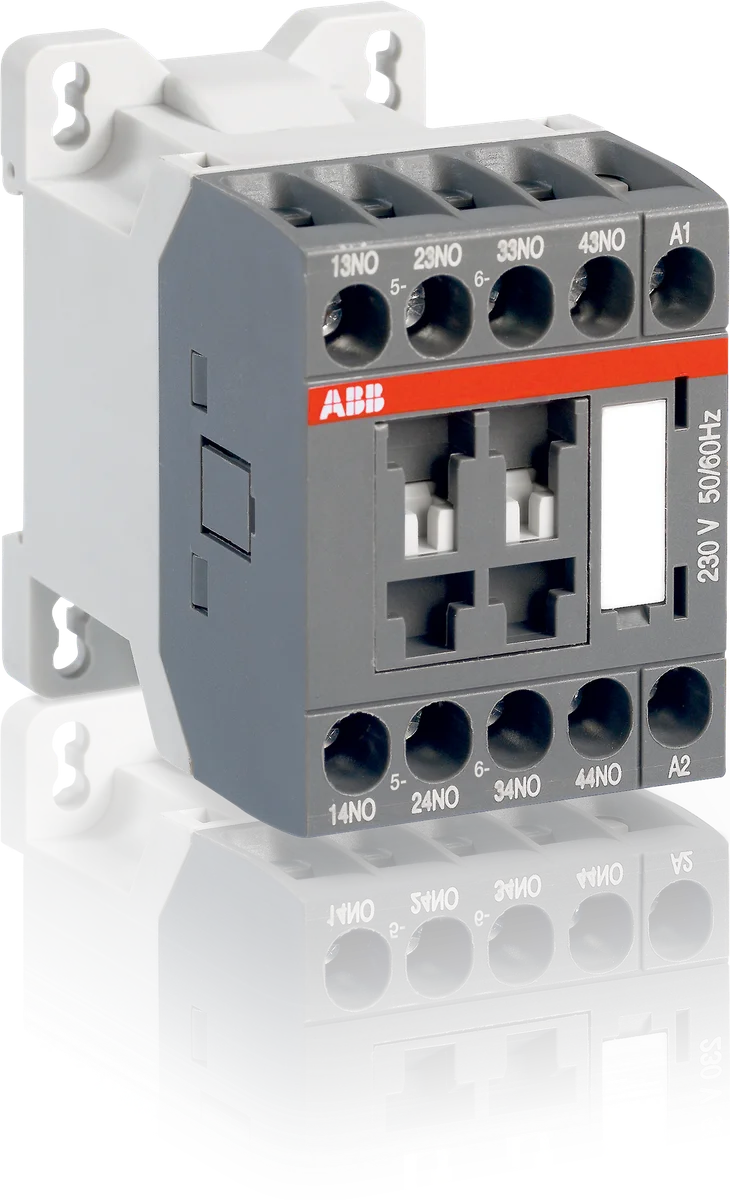

ABB 1SBH101001R2622 NS22E-26 230V 50/60Hz 4-Pole Contactor Relay
Brand:
ABB
Reference No:
1SBH101001R2622
Catalog No:
NS22E-26
Series:
NS
Tariff Code (GTIP):
85364900
- Description
The ABB NS22E-26 contactor relay (SKU 1SBH101001R2622) is a 4-pole control relay designed for use in industrial automation, motor control circuits, and control panel switching applications. Rated at 230V 50/60Hz coil voltage, the NS22E-26 delivers reliable auxiliary switching performance in a compact 45 × 72.5 × 68 mm package weighing just 0.22 kg. Part of ABB's trusted NS series, this contactor relay meets a comprehensive range of international standards including IEC, UL, CSA, CE, and UKCA.
Technical Specifications
| Catalog Number | NS22E-26 |
| SKU | 1SBH101001R2622 |
| Brand | ABB |
| Series | NS |
| Product Type | Contactor Relay |
| Number of Poles | 4 |
| Coil Voltage | 230V 50/60Hz |
| Dimensions (W × D × H) | 45 × 72.5 × 68 mm |
| Weight | 0.22 kg |
| EAN | 3471523000261 |
Certifications & Standards
- IEC 60947-5-1 / EN 60947-5-1: Low-voltage switchgear and controlgear — control circuit devices and switching elements
- IEC 60947-5: Low-voltage switchgear and controlgear — control circuit devices
- IEC 60947-1: Low-voltage switchgear and controlgear — general rules
- IEC 60715: Dimensions of low-voltage switchgear and controlgear — standardised mounting on rails
- IEC 60068-2-27: Environmental testing — shock
- UL 508: Industrial control equipment (UL Listed)
- CSA C22.2 N°14: Industrial control equipment (CSA certified)
- CSA C22.2 / CSA: Canadian Standards Association approval
- VDE: German electrotechnical certification
- CE: European conformity marking
- UKCA: UK Conformity Assessed marking
- CCC: China Compulsory Certification
- RoHS II: Restriction of Hazardous Substances Directive (recast)
- RoHS: Restriction of Hazardous Substances compliance
- WEEE: Waste Electrical and Electronic Equipment Directive compliance
Applications & Use Cases
- Motor control circuits in industrial automation systems
- Auxiliary switching in control panels and distribution boards
- Interlocking and signalling circuits in machine control
- HVAC and building automation control wiring
- Process control and factory automation installations
Technical Details
Catalog No
NS22E-26
Number of Poles
4
Model Number
NS22E-26
Tariff Code
85364900
