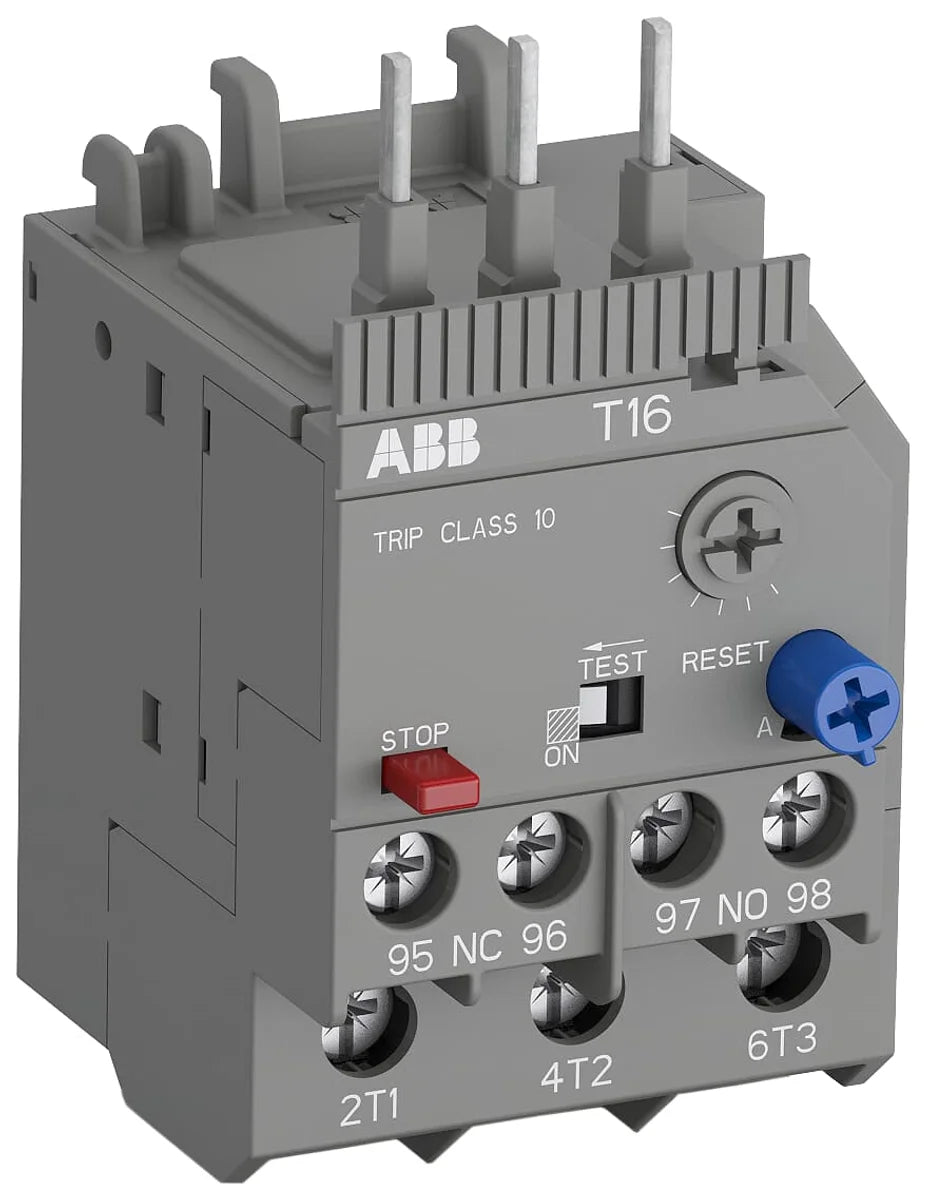

ABB 1SAZ711201R1043 T16-10 Thermal Overload Relay 7.6-10A 3P

The ABB T16-10 Thermal Overload Relay (SKU: 1SAZ711201R1043) is a 3-pole thermal overload relay with an adjustable current range of 7.6–10A, engineered for reliable motor protection in demanding industrial automation and control panel applications. Designed to safeguard motors against sustained overloads and phase loss, the T16-10 delivers precise, dependable tripping performance in compact industrial environments. Its robust construction and broad certification portfolio make it a trusted choice for engineers and procurement professionals worldwide.

Technical Specifications

Certifications & Standards

• RoHS II: Compliant with the EU Restriction of Hazardous Substances Directive (recast), ensuring restricted substances are within permitted limits
• UL: Listed by Underwriters Laboratories for safety in North American markets
• IEC 60947-1: Meets the general rules for low-voltage switchgear and controlgear
• EN 60947-1: European adoption of IEC 60947-1 for low-voltage switchgear and controlgear
• IEC/EN 60947: Full compliance with the IEC/EN 60947 series covering low-voltage switchgear and controlgear
• IEC 60068-2: Tested per environmental testing procedures for durability under thermal and mechanical stress
• EN 60947: European standard series for low-voltage switchgear and controlgear
• EN 60947-4: Covers contactors and motor-starters, including thermal overload relays
• EN 60947-5: Covers control circuit devices and switching elements
• CSA: Certified by the Canadian Standards Association for Canadian and North American markets
• RoHS: Compliant with Restriction of Hazardous Substances requirements
• REACH: Compliant with EU REACH regulation on chemical substances
• WEEE: Compliant with the EU Waste Electrical and Electronic Equipment Directive
• CCC: China Compulsory Certification for the Chinese market
• CE: Bears the CE mark confirming conformity with applicable EU directives
• UKCA: UK Conformity Assessed marking for the Great Britain market post-Brexit
• EAC: Eurasian Conformity mark for the Eurasian Economic Union markets

Applications & Use Cases

The ABB T16-10 thermal overload relay is widely deployed across industrial automation systems, motor control centers (MCCs), and control panels wherever reliable overload protection of 3-phase motors is required. Typical applications include HVAC systems, conveyor drives, pump stations, compressor controls, and general-purpose motor starters. Its 7.6–10A adjustment range makes the T16-10 ideal for protecting small to medium AC induction motors, and its compact 48 x 82 x 63 mm footprint ensures straightforward integration into space-constrained enclosures. The T16-10's global certification suite supports deployment across North American, European, UK, Chinese, and Eurasian markets without additional compliance overhead.
