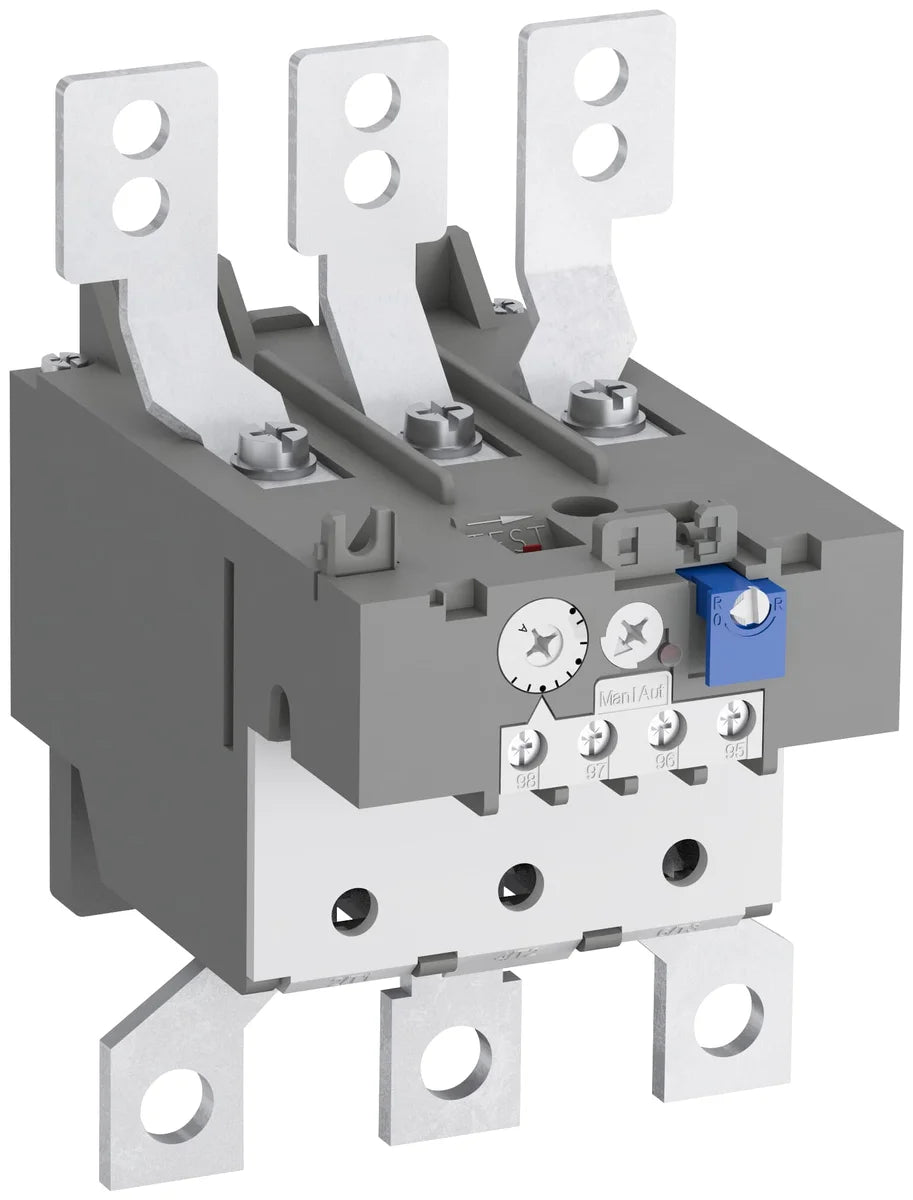

ABB 1SAZ421201R1003 TA200DU-135 Thermal Overload Relay 100-135A 3P

The ABB TA200DU-135 thermal overload relay (SKU: 1SAZ421201R1003) delivers dependable motor protection across a 100–135 A current range, making it an essential component for industrial automation and heavy-duty control panel applications. Designed for 3-pole configurations, this relay guards motors against overload, phase imbalance, and sustained overcurrent conditions. The TA200DU-135 is engineered to integrate seamlessly with compatible ABB contactors in demanding industrial environments.

Technical Specifications

Certifications & Standards

• UL: Listed to applicable UL standards for industrial control equipment
• DNV: Det Norske Veritas type approval for marine and offshore applications
• LR: Lloyd's Register approval for shipboard use
• IEC 60947-1: General rules for low-voltage switchgear and controlgear
• EN 60947-1: European harmonised standard — general rules for low-voltage switchgear
• IEC/EN 60947: Comprehensive low-voltage switchgear and controlgear series compliance
• IEC 60068-2: Environmental testing for electronic and electrical items
• EN 60947: European standard for low-voltage switchgear and controlgear
• EN 60947-4: Contactors and motor-starters — electromechanical contactors and motor-starters
• EN 60947-5: Control circuit devices and switching elements
• EN 45555: General methods for the assessment of the ability to recover raw materials from electrical and electronic equipment
• CSA: Canadian Standards Association certification for North American markets
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• REACH: Compliant with EU REACH regulation (EC) No 1907/2006 on chemical substances
• WEEE: Waste Electrical and Electronic Equipment Directive compliance
• CCC: China Compulsory Certification for the Chinese market
• CE: Conformité Européenne — meets EU health, safety, and environmental requirements
• UKCA: UK Conformity Assessed marking for Great Britain market access
• EAC: Eurasian Conformity marking for the Eurasian Economic Union

Applications & Use Cases

The ABB TA200DU-135 thermal overload relay is purpose-built for protecting three-phase AC motors in high-current industrial automation systems. Typical applications include compressor drives, pump stations, conveyor systems, HVAC equipment, and large fans where motor currents fall within the 100–135 A range. Its broad certification portfolio — covering UL, CSA, CE, UKCA, CCC, DNV, and LR — makes the TA200DU-135 suitable for global deployments across onshore industrial facilities, marine vessels, and offshore installations. Engineers and procurement professionals specify this relay when building motor control centres (MCCs), control panels, and motor starter assemblies requiring fully certified, DIN rail-compatible thermal protection.
