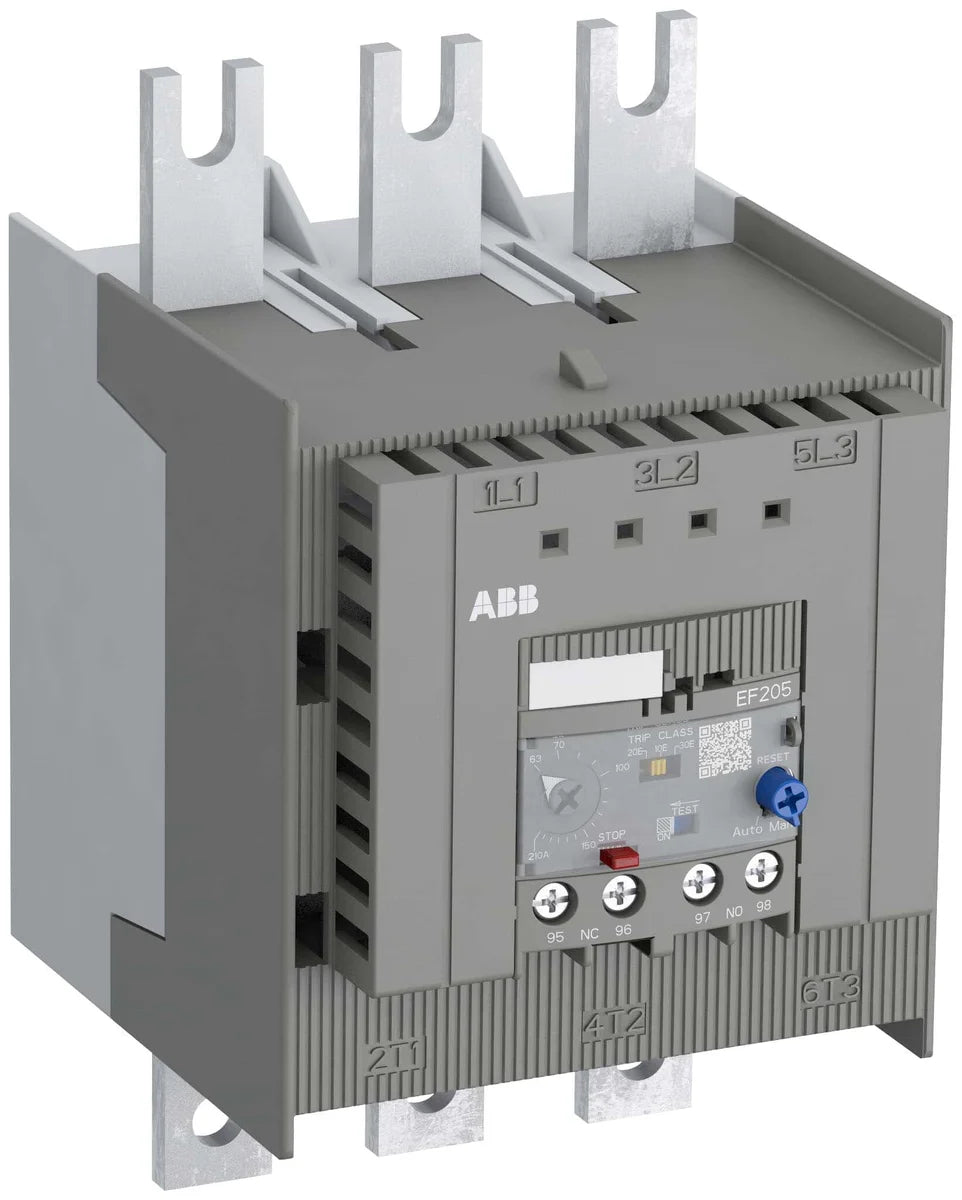

ABB 1SAX531001R1101 EF205-210 63-210A 3P Electronic Overload Relay

The ABB EF205-210 electronic overload relay (SKU: 1SAX531001R1101) provides precise motor protection across a wide 63–210 A adjustment range with a compact 3-pole design. As part of the EF205 series, this relay delivers advanced electronic overload detection suited to demanding industrial automation and control panel applications, and carries an extensive portfolio of global approvals including ATEX, UL, CE, and CCC certification.

Technical Specifications

Certifications & Standards

• ATEX: Certified for use in explosive atmospheres (European Directive 2014/34/EU)
• IECEx: International certification for equipment in explosive atmospheres
• RINA: Registro Italiano Navale — marine type approval
• RMRS: Russian Maritime Register of Shipping approval
• UL: Underwriters Laboratories listing for North American market
• IEC/EN 60947-1: Low-voltage switchgear and controlgear — general rules
• IEC/EN 60947-4: Contactors and motor starters
• IEC/EN 60947-5: Control circuit devices and switching elements
• IEC 60068-2: Environmental testing — climatic and mechanical durability
• EN 60947-1: European harmonised standard — low-voltage switchgear general rules
• EN 60947-4: European harmonised standard — contactors and motor starters
• EN 60947-5: European harmonised standard — control circuit devices
• EN 45555: General methods for the assessment of the ability to recover materials and components from electrical and electronic equipment
• UL 2799: UL standard for electrical systems using solid-state inverters and converters
• CSA: Canadian Standards Association certification
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• REACH: Compliant with EU REACH Regulation (EC) No 1907/2006
• WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive
• CCC: China Compulsory Certification for the Chinese market
• CE: Conforms to European Union health, safety, and environmental requirements
• UKCA: UK Conformity Assessed marking for Great Britain market
• EAC: Eurasian Conformity mark for the Customs Union (Russia, Belarus, Kazakhstan)

Applications & Use Cases

The ABB EF205-210 electronic overload relay is engineered for motor protection in heavy-duty industrial environments. Its broad 63–210 A setting range makes it suitable for large motors in manufacturing automation, pump stations, compressor drive panels, HVAC plant rooms, and process control installations. The ATEX and IECEx approvals extend its use to oil & gas, chemical, and mining facilities where explosive atmospheres may be present. Marine approvals (RINA, RMRS) qualify the EF205-210 for shipboard motor control centres and offshore installations.
