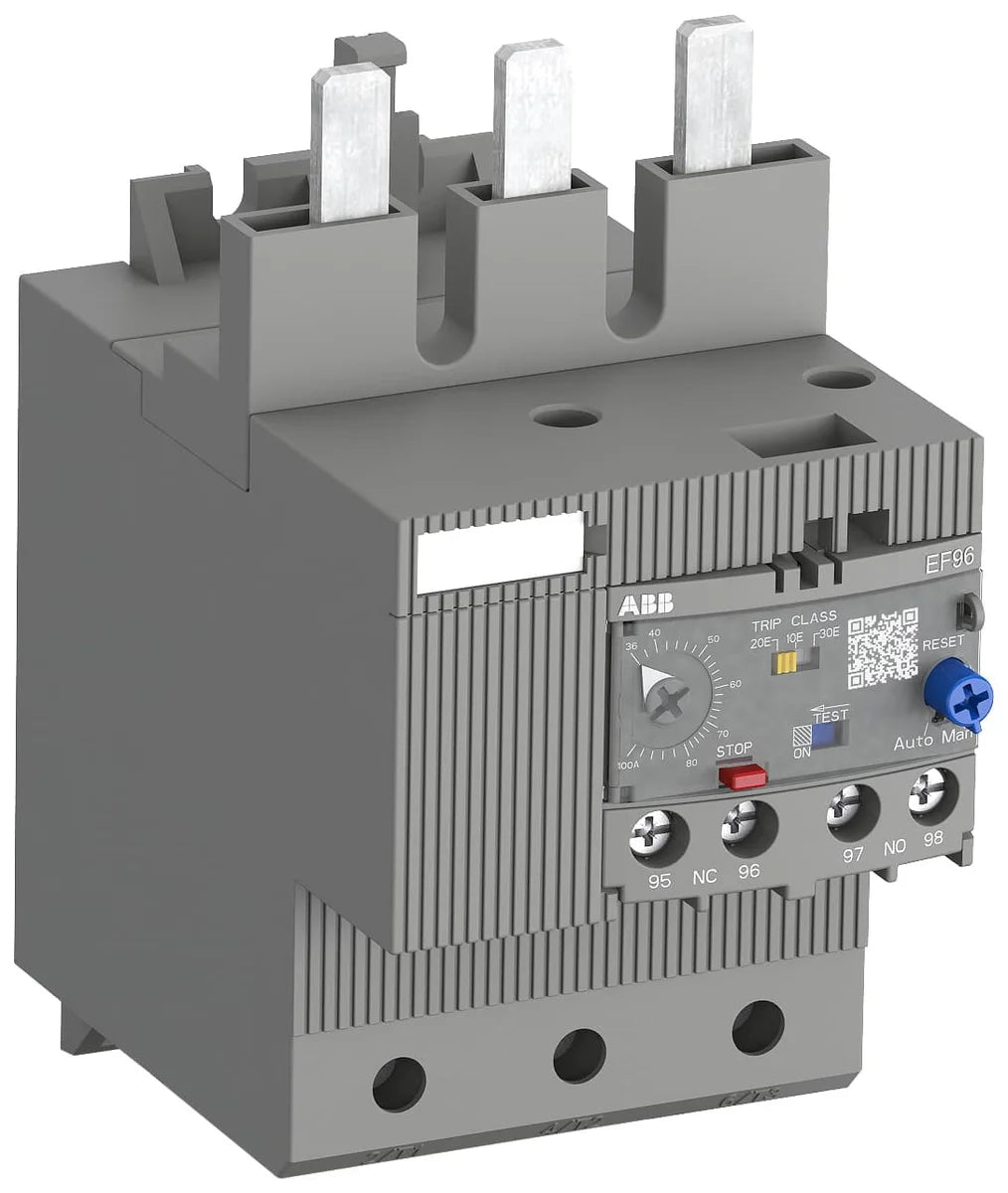

ABB 1SAX341001R1101 EF96-100 Electronic Overload Relay 36-100A 3P

The ABB EF96-100 (SKU: 1SAX341001R1101) is an electronic overload relay engineered for reliable motor protection in demanding industrial automation environments. Covering a rated current range of 36 to 100 A across 3 poles, the EF96-100 delivers precise, adjustable overload detection to safeguard motors and control panel equipment. Compact in form at 139 × 107 × 75.5 mm and weighing just 0.857 kg, it is designed for straightforward integration into modern motor control and protection assemblies.

Technical Specifications

Certifications & Standards

• ATEX: Approved for use in explosive atmospheres (EU Directive 2014/34/EU)
• IECEx: International certification for equipment in explosive atmospheres
• UL: Underwriters Laboratories listed — North American safety standard
• LR: Lloyd's Register type approval for marine and offshore applications
• RINA: Italian Naval Register certification for marine equipment
• RMRS: Russian Maritime Register of Shipping approval
• IEC 60947-1: General rules for low-voltage switchgear and controlgear
• EN 60947-1: European harmonised standard — general rules for LV switchgear
• IEC/EN 60947: Comprehensive LV switchgear and controlgear series compliance
• IEC 60068-2: Environmental testing standards (climatic and mechanical)
• EN 60947-4: Contactors and motor-starters standard
• EN 60947-5: Control circuit devices and switching elements standard
• EN 45555: General methods for the assessment of the ability to recover materials and energy from electrical and electronic equipment
• UL 2799: UL standard for electrical energy storage systems
• CSA: Canadian Standards Association — North American market compliance
• RoHS: Restriction of Hazardous Substances — EU Directive 2011/65/EU compliant
• REACH: EU chemical safety regulation (EC No 1907/2006) compliant
• WEEE: Waste Electrical and Electronic Equipment Directive compliant
• CCC: China Compulsory Certification for the Chinese market
• CE: Conformité Européenne — EU market declaration of conformity
• UKCA: UK Conformity Assessed — Great Britain market marking
• EAC: Eurasian Conformity mark for EAEU member states

Applications & Use Cases

The ABB EF96-100 electronic overload relay is ideally suited for motor protection in heavy industrial applications where accurate trip thresholds and robust certification coverage are essential. Typical deployment scenarios include large pump stations, compressor drives, conveyor systems, HVAC plant rooms, and offshore or marine motor control panels where ATEX or LR/RINA ratings are mandatory. Its 36–100 A adjustment range makes it a versatile choice for motor starters built around ABB contactors in the EF96 series ecosystem, reducing the need for multiple relay variants across a site.
