ABB 1SAP541510R0001 CP6415 15in TFT Touch 1024x768 Chromium HMI Operator Panel

% $-2,449.50
ABB 1SAP541510R0001 CP6415 HMI Operator Panel - 15in TFT Touch Chromium
ABB 1SAP541510R0001 CP6415 HMI Operator Panel - 15in TFT Touch Chromium

ABB 1SAP541510R0001 CP6415 15in TFT Touch 1024x768 Chromium HMI Operator Panel

Brand: ABB
Reference No: 1SAP541510R0001
Catalog No: CP6415
Series: Devices
Tariff Code (HS): 852859
Communication: 2x Industrial Ethernet, 2x USB
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$2,449.50

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

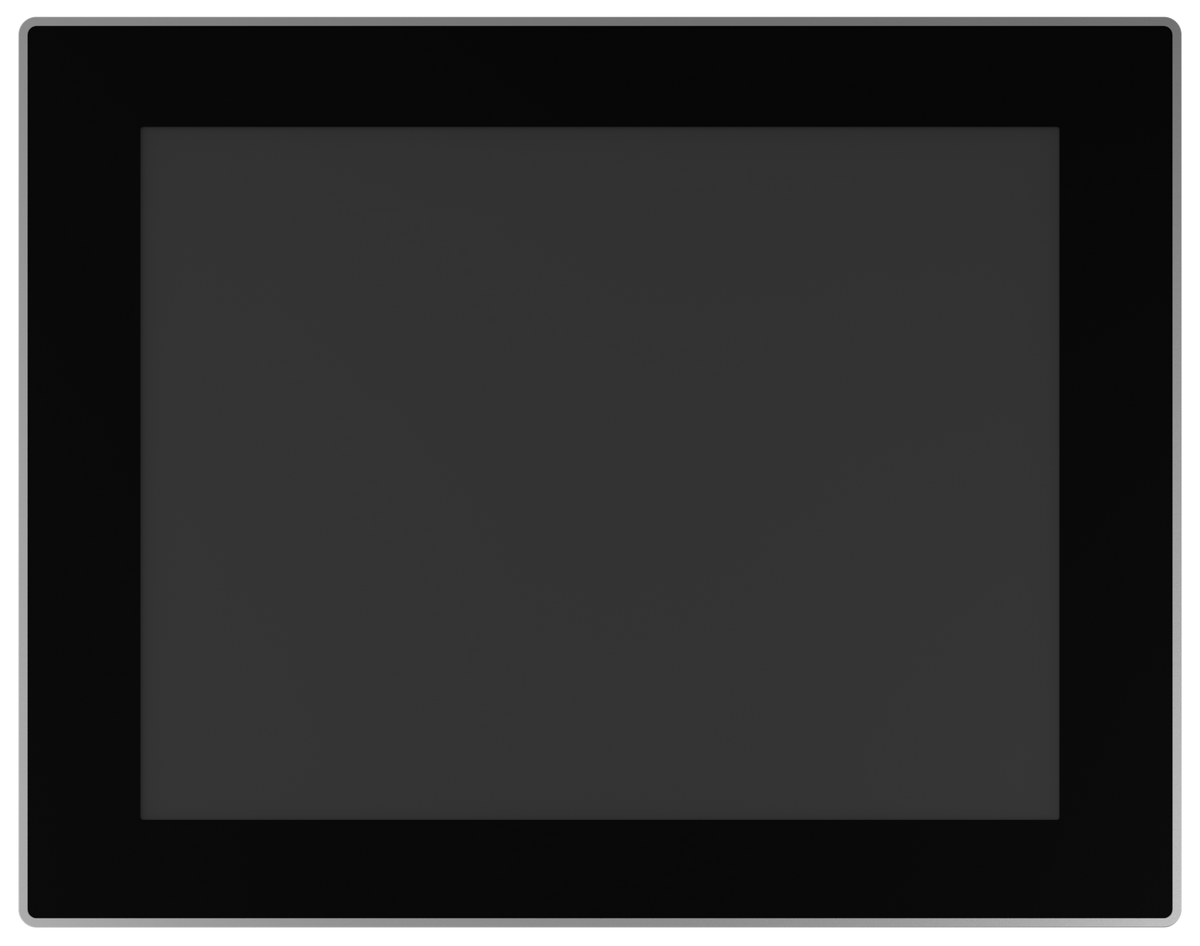

The ABB 1SAP541510R0001 (CP6415) is a CP600 control panel with a 15 inch TFT touchscreen, 1024x768 pixel resolution, 64K colors and a built-in Chromium browser. It carries IP66 front protection, runs on 18-32 V DC, and connects via two Industrial Ethernet ports and two USB ports for PB610 applications across a -20 to +60 degree C ambient range.

Technical Specifications

Order code 1SAP541510R0001
Type code CP6415
Brand ABB
Series CP600
EAN 4013614553264
Screen Size 15 in
Screen Resolution 1024 x 768 pixel
Display Type TFT touchscreen, Chromium Browser
Screen Color Capability Color, 64K colors
Degree of Protection Front IP66
Supply Voltage 18-32 V DC
Hardware Interfaces 2x Industrial Ethernet, 2x USB
Memory Size 150000 kB
Security 50
Built-In Depth 47 mm
Ambient Air Temperature (Operation) -20 to +60 degC
Net Weight 3.19 kg
Gross Weight 3.5 kg
Dimensions (D x H x W) 47 x 307 x 392 mm

Selection Notes

At 15 inches and 1024x768 pixels, the CP6415 uses the CP600 (non-Pro) platform's dual Industrial Ethernet ports, dual USB ports and -20 to +60 degree C ambient rating. Its 3.19 kg weight and 47 mm built-in depth are worth checking against door or panel clearance before specifying — both increase with screen size in this family. The built-in Chromium browser supports web-based dashboards alongside standard PB610 HMI projects.

Technical Details

Short Description
ABB CP6415 HMI panel, 15in TFT touch, 1024x768, Chromium browser, dual Ethernet, IP66.
Mounting Type
Panel/flush mount
Protection Type
Front IP66
Catalog No
CP6415
Delivery Date (Days)
30 days
Model Number
CP6415
Tariff Code
852859
