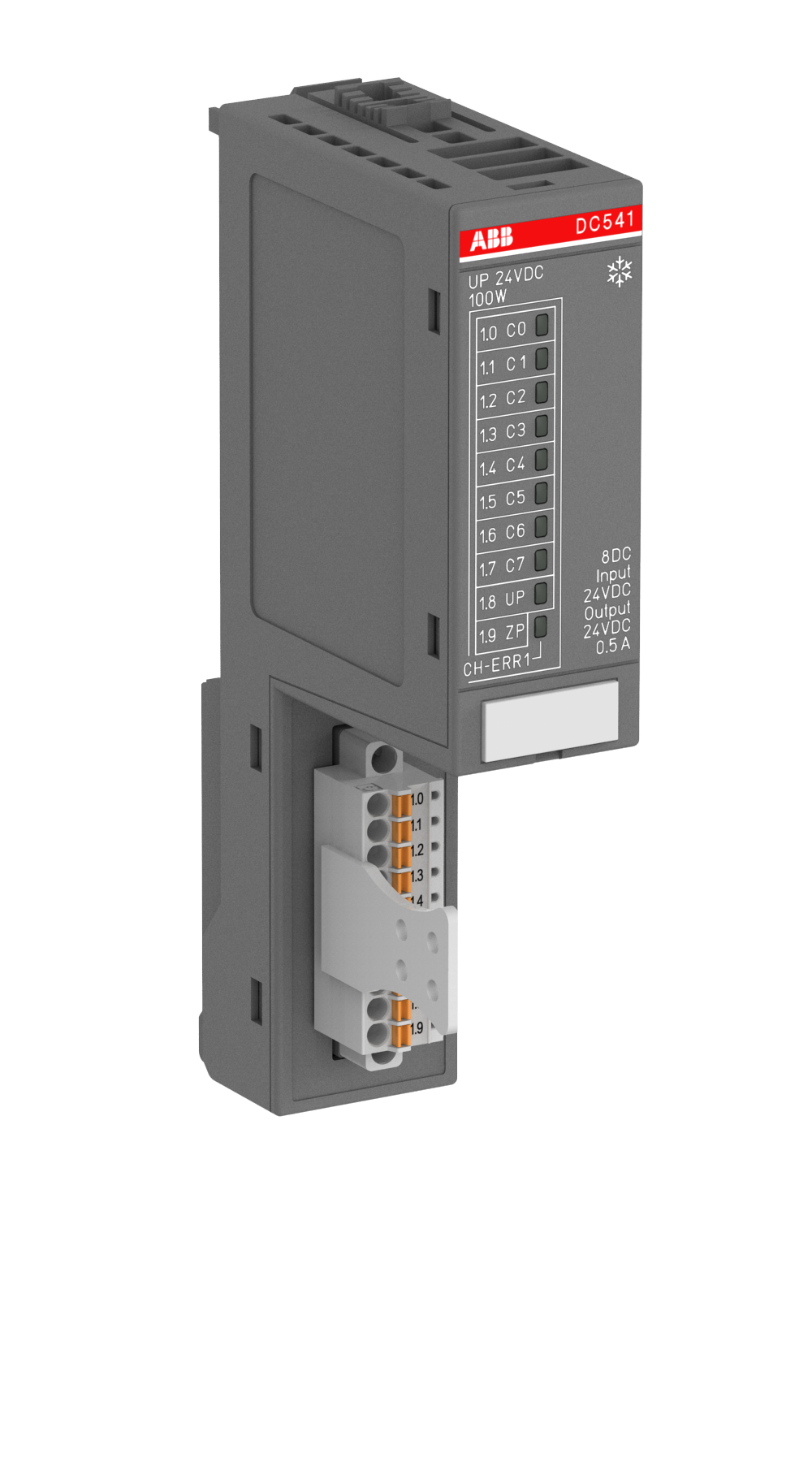

ABB 1SAP470000R0001 DC541-CM-XC 8 DI/DO 24V DC 0.5A PLC I/O Module

% $-339.25
ABB 1SAP470000R0001 DC541-CM-XC PLC I/O Module – 8 DI/DO, 24V DC 0.5A
ABB 1SAP470000R0001 DC541-CM-XC PLC I/O Module – 8 DI/DO, 24V DC 0.5A

ABB 1SAP470000R0001 DC541-CM-XC 8 DI/DO 24V DC 0.5A PLC I/O Module

Brand: ABB
Reference No: 1SAP470000R0001
Catalog No: DC541-CM-XC
Series: S500 I/O modules
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$339.25

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB DC541-CM-XC (order code 1SAP470000R0001) is an AC500-XC function module with 8 fast configurable digital inputs/outputs rated 24V DC, 0.5A, wired in a 1-wire scheme. IP20 rated and weighing 0.09 kg, it mounts on an S500 terminal base to add fast digital I/O to extreme-conditions AC500 systems.

Technical Specifications

Order code 1SAP470000R0001
Type code DC541-CM-XC
Brand ABB
Series AC500-XC – S500 I/O modules
EAN 4016779846127
Function 8 fast configurable DI/DO 24V DC 0.5A. To be mounted on terminal base. 1-wire
Number of Digital Configurable I/Os 8
Degree of Protection IP20
Ambient Air Temperature (Operation) -30...+70 degrees C
Ambient Air Temperature (Storage) -40...+85 degrees C
Net Weight 0.09 kg
Net Depth / Length 62 mm
Net Height 135 mm
Net Width 28 mm
Gross Weight 0.133 kg

Selection Notes

The 1-wire scheme and 0.5A switching current on all 8 channels suit this module to fast digital signalling (sensors, indicator lamps, small solenoids) rather than higher-current actuators, and 'fast configurable' means each channel's input/output direction is set in software rather than fixed in hardware. It mounts on an S500 terminal base, not directly on the backplane; a standard-temperature rack can use the non-XC version instead of this XC-rated module.

Technical Details

Short Description
ABB DC541-CM-XC function module: 8 fast DI/DO, 24V DC 0.5A, 1-wire, IP20, XC rated.
Mounting Type
Terminal-base mounted module
Protection Type
IP20
Catalog No
DC541-CM-XC
Delivery Date (Days)
30 days
Model Number
DC541-CM-XC
Tariff Code
853710
