ABB 1SAP460400R0001 FM502-CMS-XC 16 AI 2 DI 2 DC 1 Encoder PLC I/O Module

% $-2,553.00

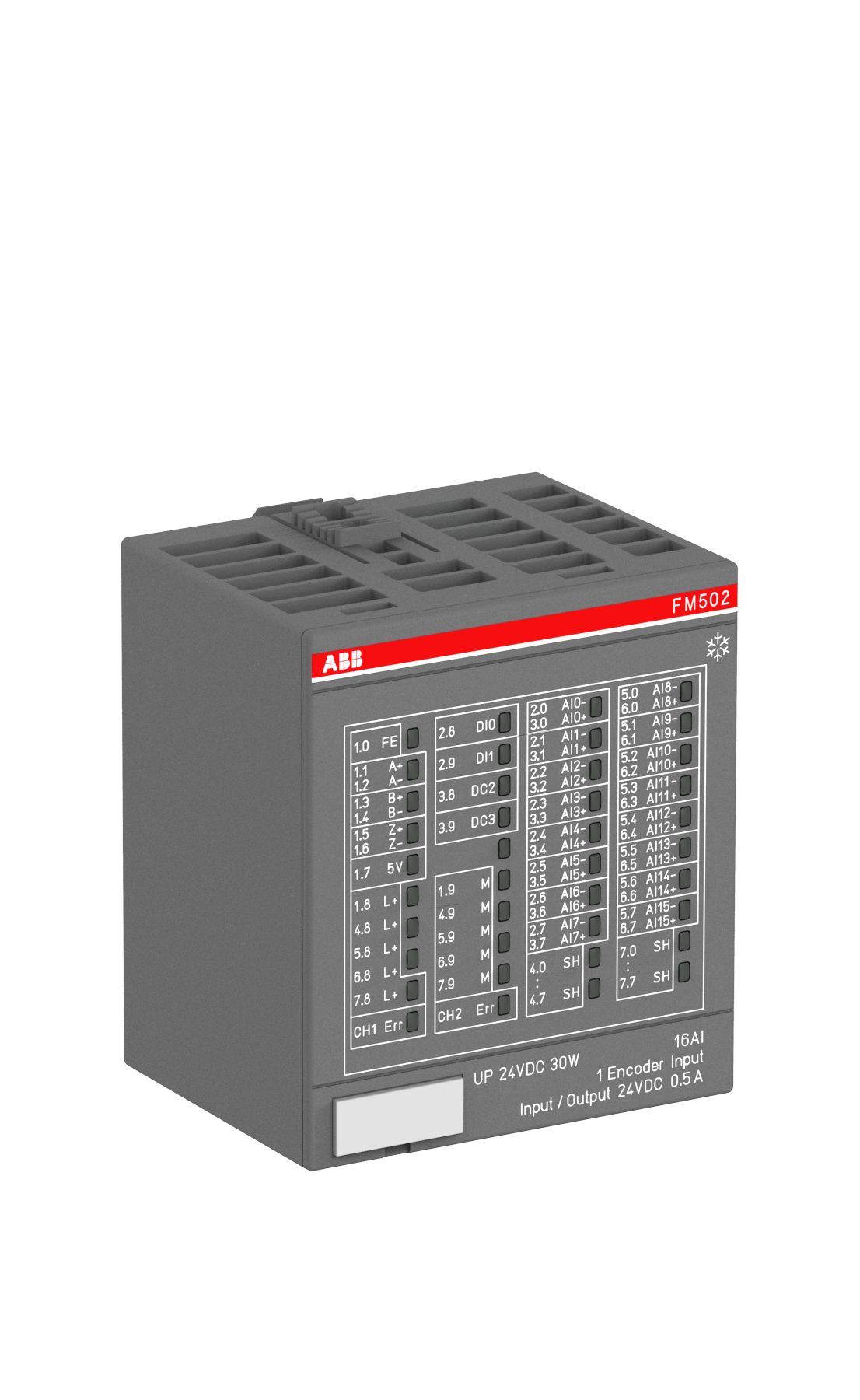

ABB 1SAP460400R0001 FM502-CMS-XC PLC I/O Module – 16 AI, 2 DI, 2 DC, 1 encoder
ABB 1SAP460400R0001 FM502-CMS-XC PLC I/O Module – 16 AI, 2 DI, 2 DC, 1 encoder

ABB 1SAP460400R0001 FM502-CMS-XC 16 AI 2 DI 2 DC 1 Encoder PLC I/O Module

Brand: ABB
Reference No: 1SAP460400R0001
Catalog No: FM502-CMS-XC
Series: Condition Monitoring CMS
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$2,553.00

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB FM502-CMS-XC (order code 1SAP460400R0001) is an AC500-XC condition monitoring function module with 16 analog inputs, 2 digital inputs, 2 digital/DC channels, and 1 encoder input. IP20 rated and weighing 0.147 kg, it mounts on a terminal base to collect vibration and speed data for machine condition monitoring.

Technical Specifications

Order code 1SAP460400R0001
Type code FM502-CMS-XC
Brand ABB
Series AC500-XC – Condition Monitoring CMS
EAN 4016779866200
Function 16 AI. 2 DI. 2 DC. 1 Encoder
Number of Digital Configurable I/Os 2
Degree of Protection IP20
Ambient Air Temperature (Operation) -30...+70 degrees C
Ambient Air Temperature (Storage) -40...+85 degrees C
Net Weight 0.147 kg
Net Depth / Length 62 mm
Net Height 76 mm
Net Width 67.5 mm
Gross Weight 0.175 kg

Selection Notes

16 analog inputs plus a dedicated encoder input size this module for vibration and speed monitoring on a single machine train, more channel density than a general-purpose S500 analog module offers. It needs the no-slot terminal base when only Ethernet reporting is required, or the 2-slot base when a CM5xx fieldbus module must sit alongside it; a standard-temperature rack can use the non-XC version of this function module.

Technical Details

Short Description
ABB FM502-CMS-XC condition monitoring module: 16 AI, 2 DI, 2 DC, 1 encoder input, XC rated.
Protection Type
IP20
Catalog No
FM502-CMS-XC
Delivery Date (Days)
30 days
Model Number
FM502-CMS-XC
Tariff Code
853710
