ABB 1SAP450900R0001 AO522-XC 8 AO U/I 16-Bit XC PLC I/O Module

% $-753.25

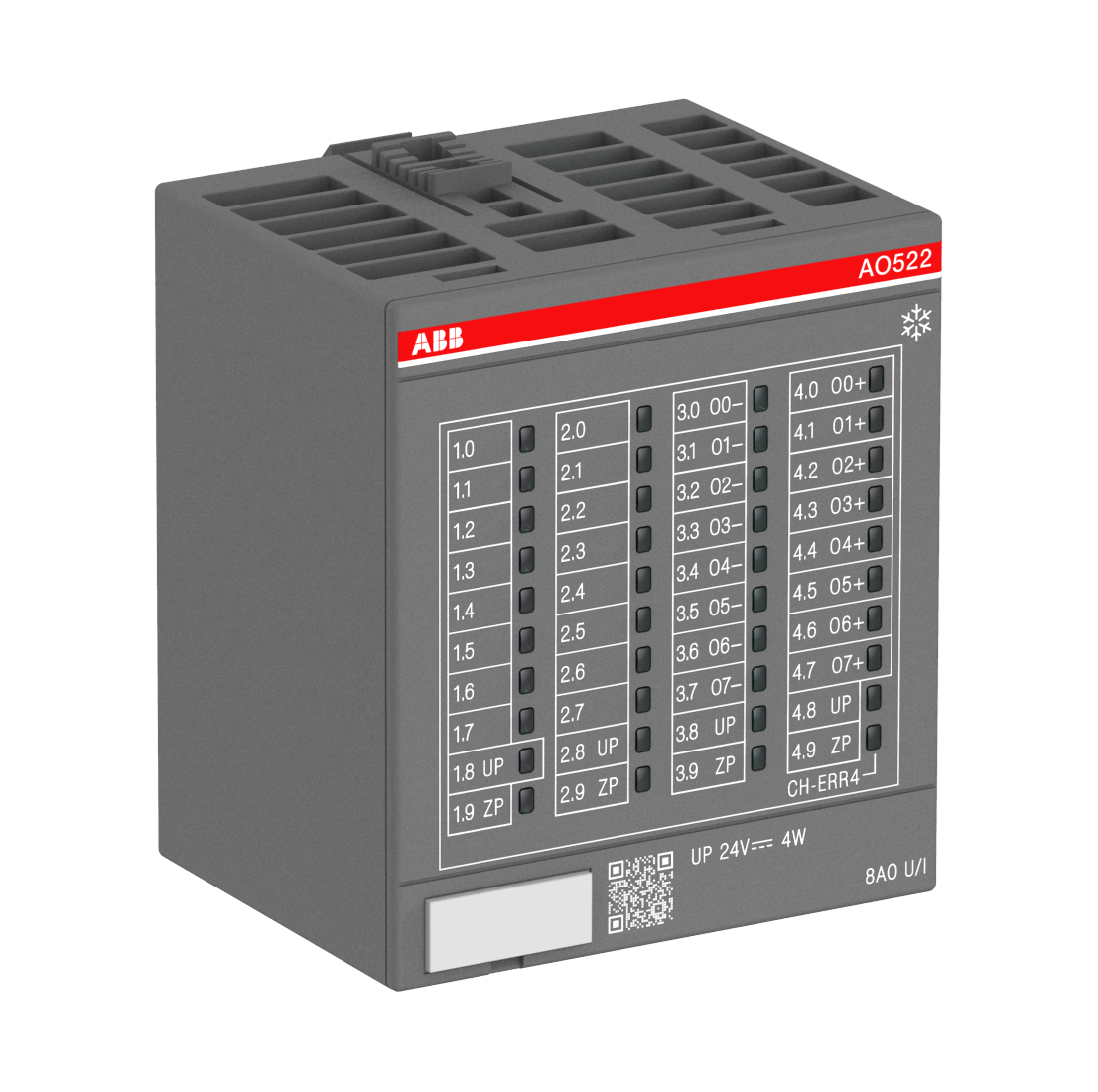

ABB 1SAP450900R0001 AO522-XC PLC analog output module - 8 AO channels 16-bit
ABB 1SAP450900R0001 AO522-XC PLC analog output module - 8 AO channels 16-bit

ABB 1SAP450900R0001 AO522-XC 8 AO U/I 16-Bit XC PLC I/O Module

Brand: ABB
Reference No: 1SAP450900R0001
Catalog No: AO522-XC
Series: S500 I/O modules
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$753.25

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB AO522-XC (order code 1SAP450900R0001) is an S500 analog output module for the AC500-XC extended-temperature PLC line, providing 8 output channels configurable for voltage or current signals at 16-bit resolution including sign. It uses 1-wire hookup, weighs 0.108 kg, and carries an IP20 housing rating for mounting in extended-temperature cabinets.

Technical Specifications

Order Code 1SAP450900R0001
Type Code AO522-XC
Brand ABB
Series S500 I/O modules
EAN 4053546121438
Net Weight 0.108 kg
Gross Weight 0.132 kg
Dimensions (L x H x W) 62 x 76 x 67.5 mm
Function 8 AO: U, I
Analog Outputs 8
Output Signal U, I
Resolution Analog Output 16 bit
Degree of Protection Housing IP20

Selection Notes

Choose the AO522-XC for actuator or valve-positioner loops that need 16-bit output precision across 8 channels — the extra resolution over the 13-bit output modules in this family matters on fine-control analog loops such as proportional valves. Where 16 output channels are needed in one slot at the cost of 13-bit resolution, the higher-channel analog output module in the same line is the better fit.

Technical Details

Short Description
S500 analog output module (AO522-XC) - 8 AO channels, U/I signal types, 16-bit resolution, IP20.
Protection Type
IP20
Catalog No
AO522-XC
Delivery Date (Days)
30 days
Model Number
AO522-XC
Tariff Code
853710
