ABB 1SAP450500R0001 AC522-XC 8 Configurable AI/AO U/I/RTD 13-Bit XC PLC I/O Module

% $-537.63

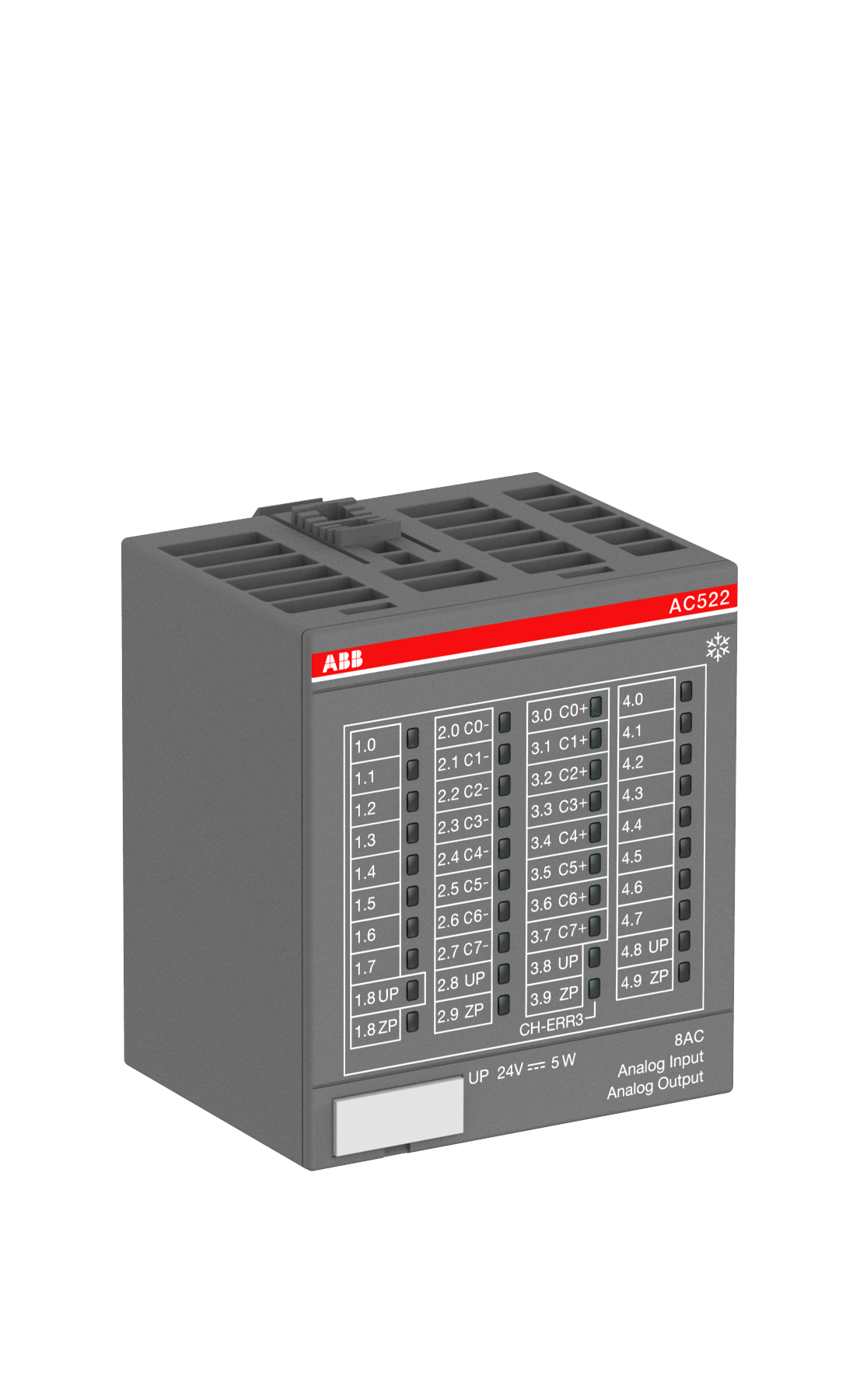

ABB 1SAP450500R0001 AC522-XC PLC analog I/O module - 8 configurable AI/AO channels
ABB 1SAP450500R0001 AC522-XC PLC analog I/O module - 8 configurable AI/AO channels

ABB 1SAP450500R0001 AC522-XC 8 Configurable AI/AO U/I/RTD 13-Bit XC PLC I/O Module

Brand: ABB
Reference No: 1SAP450500R0001
Catalog No: AC522-XC
Series: S500 I/O modules
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$537.63

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB AC522-XC (order code 1SAP450500R0001) is an S500 analog I/O module for the AC500-XC extended-temperature PLC line, offering 8 configurable analog channels that can be wired as AI (U, I, RTD) or AO (U, I) in two groups of 4. Resolution is 13-bit, the housing is IP20, and wiring is 1-wire pluggable.

Technical Specifications

Order Code 1SAP450500R0001
Type Code AC522-XC
Brand ABB
Series S500 I/O modules
EAN 4053546045413
Net Weight 0.128 kg
Gross Weight 0.152 kg
Dimensions (L x H x W) 62 x 76 x 67.5 mm
Function 4 channels: AI U, I, RTD, DI or AO U, I. 4 channels: AI U, I, RTD or AO U
Number of Analog Configurable I/Os 8
Input Signal U, I, RTD
Output Signal U, I
Resolution Analog Input 13 bit, Analog Output 13 bit
Degree of Protection Housing IP20

Selection Notes

Specify the AC522-XC where a single I/O slot needs to flex between analog input and output duty — the 8 configurable channels let a panel designer reassign the AI/AO mix after commissioning instead of locking it in at the order stage. Where the application only ever needs pure analog input or pure analog output at a higher channel count, a dedicated single-function module in the same AC500-XC line uses the board space more efficiently.

Technical Details

Short Description
S500 analog I/O module (AC522-XC) - 8 configurable AI/AO channels, U/I/RTD/DI signals, 13-bit, IP20, eXtreme Conditions.
Protection Type
IP20
Catalog No
AC522-XC
Delivery Date (Days)
30 days
Model Number
AC522-XC
Tariff Code
853710
