ABB 1SAP450000R0001 AX522-XC 8 AI 8 AO U/I/RTD 13-Bit XC PLC I/O Module

% $-646.88

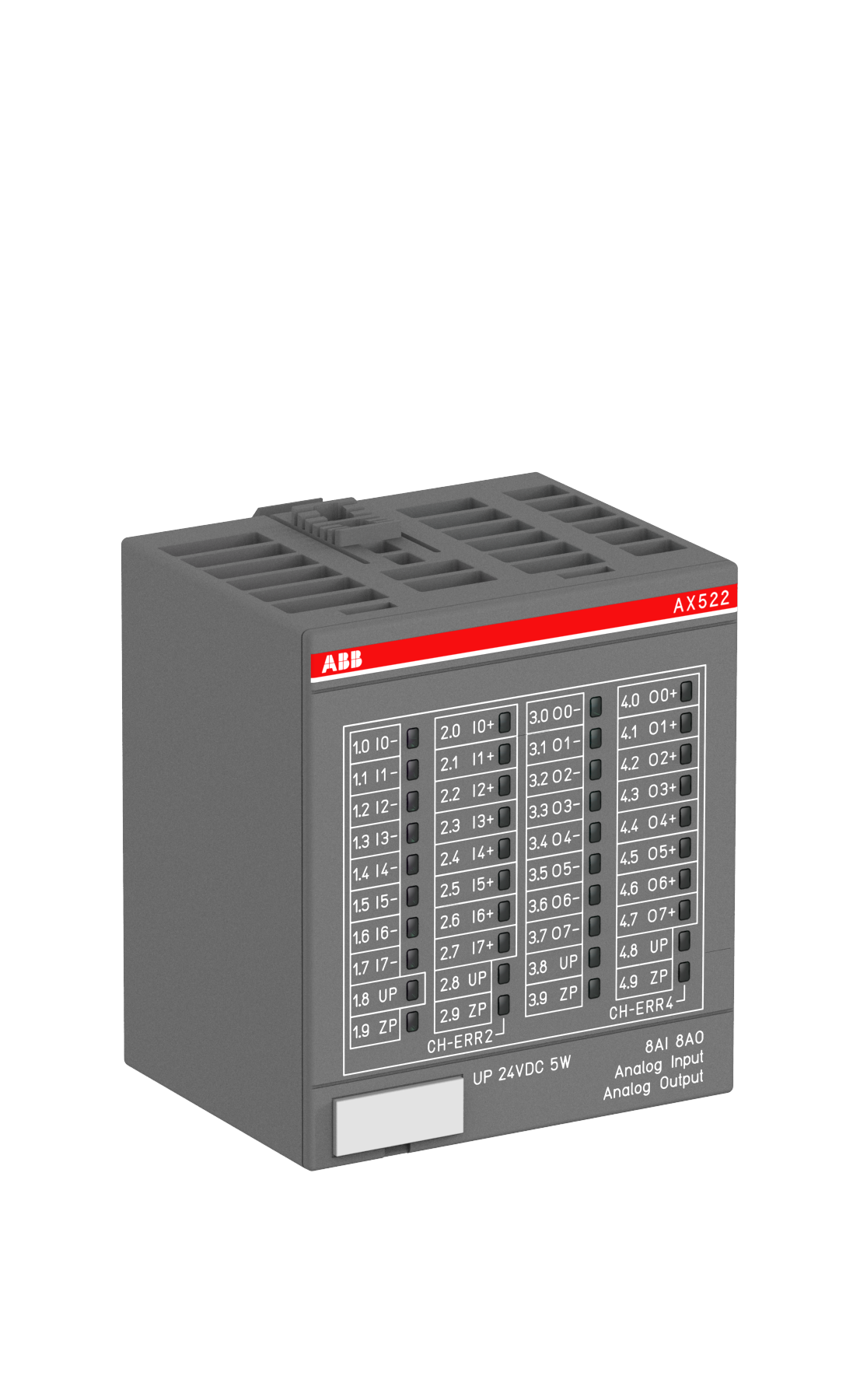

ABB 1SAP450000R0001 AX522-XC PLC analog I/O module - 8 AI 8 AO channels
ABB 1SAP450000R0001 AX522-XC PLC analog I/O module - 8 AI 8 AO channels

ABB 1SAP450000R0001 AX522-XC 8 AI 8 AO U/I/RTD 13-Bit XC PLC I/O Module

Brand: ABB
Reference No: 1SAP450000R0001
Catalog No: AX522-XC
Series: S500 I/O modules
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$646.88

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB AX522-XC (order code 1SAP450000R0001) is an S500 analog I/O module for the AC500-XC line with 8 analog inputs (U, I, RTD) and 8 analog outputs split into 4 configurable for voltage or current and 4 fixed for voltage, all at 13-bit resolution. It uses 1-wire hookup and operates from -30 to +70 C.

Technical Specifications

Order Code 1SAP450000R0001
Type Code AX522-XC
Brand ABB
Series S500 I/O modules
EAN 4016779846141
Net Weight 0.127 kg
Gross Weight 0.151 kg
Dimensions (L x H x W) 62 x 76 x 67.5 mm
Function 8 AI: U, I, RTD. 4 AO: U, I. 4 AO: U
Analog Inputs 8
Input Signal U, I, RTD, DI
Analog Outputs 8
Output Signal 4 AO: U, I. 4 AO: U
Resolution Analog Input 13 bit, Analog Output 13 bit
Degree of Protection Housing IP20
Ambient Temperature Operation -30...+70 C, storage -40...+85 C

Selection Notes

Use the AX522-XC where a panel needs twice the channel density of the 4-AI/4-AO analog module in the same line without adding a second slot — 8 inputs and 8 outputs cover a larger mixed analog loop on one card. Because only half the output channels support current output, confirm each output's signal-type assignment against the Input/Output Signal rows before wiring.

Technical Details

Short Description
S500 analog I/O module (AX522-XC) - 8 AI + 8 AO channels (4 U/I + 4 U outputs), 13-bit, IP20, eXtreme Conditions.
Protection Type
IP20
Catalog No
AX522-XC
Delivery Date (Days)
30 days
Model Number
AX522-XC
Tariff Code
853710

Downloads
