ABB 1SAP440800R0001 DO526-XC 8 DO 24VDC 2A eXtreme Conditions PLC I/O Module

% $-385.25

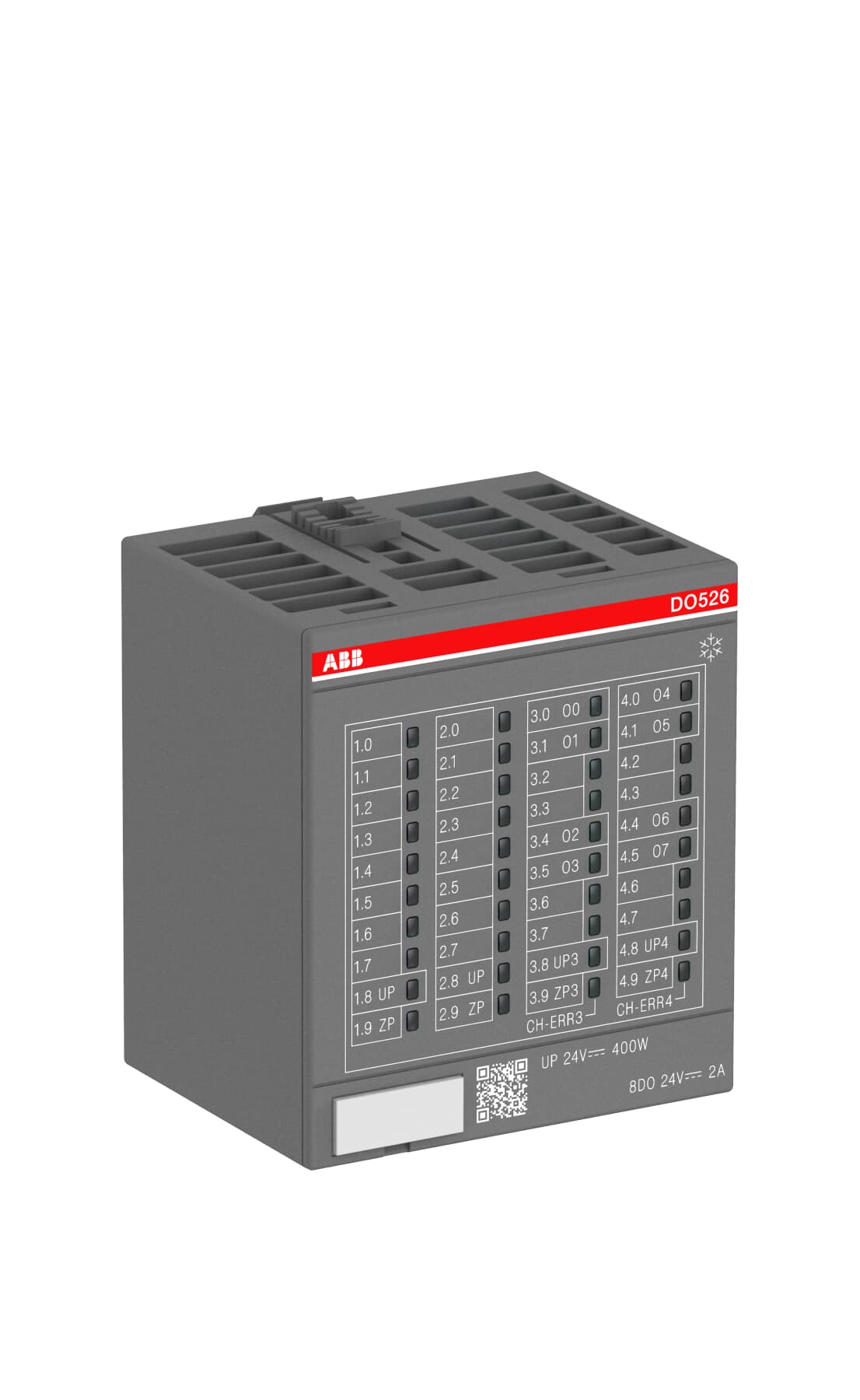

ABB 1SAP440800R0001 DO526-XC 8 DO 24VDC 2A digital output module – PLC I/O Module
ABB 1SAP440800R0001 DO526-XC 8 DO 24VDC 2A digital output module – PLC I/O Module

ABB 1SAP440800R0001 DO526-XC 8 DO 24VDC 2A eXtreme Conditions PLC I/O Module

Brand: ABB
Reference No: 1SAP440800R0001
Catalog No: DO526-XC
Series: S500 I/O modules
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$385.25

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB DO526-XC (order code 1SAP440800R0001) is an 8-channel 24 V DC transistor output module for the AC500-XC platform, switching up to 2 A per point, four times the per-channel current of the 32-channel output module in the same series. It carries an IP20 enclosure rating for the eXtreme Conditions temperature range.

Technical Specifications

Order code 1SAP440800R0001
Type code DO526-XC
Brand ABB
Series AC500-XC S500 I/O modules
Function 8 DO: 24VDC 2A, 1-wire
Number of Digital Outputs 8
Output Type Transistor
Output Voltage Type DC
Output Current 2 A
Output Voltage Maximum 20.4-28.8 V
Degree of Protection IP20
Supply Voltage 20.4-28.8 V DC
Net Weight 0.134 kg
Gross Weight 0.158 kg
Dimensions, L x H x W 62 x 76 x 67.5 mm
EAN 4013614529511

Selection Notes

DO526-XC trades channel density for per-point current: 8 outputs rated 2 A each, four times the 0.5 A limit on the 32-channel transistor output module in this series. That headroom lets it drive small motor brakes, contactor coils, or multiple relay coils directly without an interposing relay. Use a higher-channel-count output module instead when the load is light — indicator lamps, small relays — and channel density matters more than per-point current.

Technical Details

Short Description
S500 digital output module: 8 DO, 24 V DC 2 A transistor, IP20, eXtreme Conditions.
Protection Type
IP20
Catalog No
DO526-XC
Delivery Date (Days)
30 days
Model Number
DO526-XC
Tariff Code
853710
