ABB 1SAP440700R0001 DO524-XC 32 DO 24VDC 0.5A eXtreme Conditions PLC I/O Module

% $-304.75

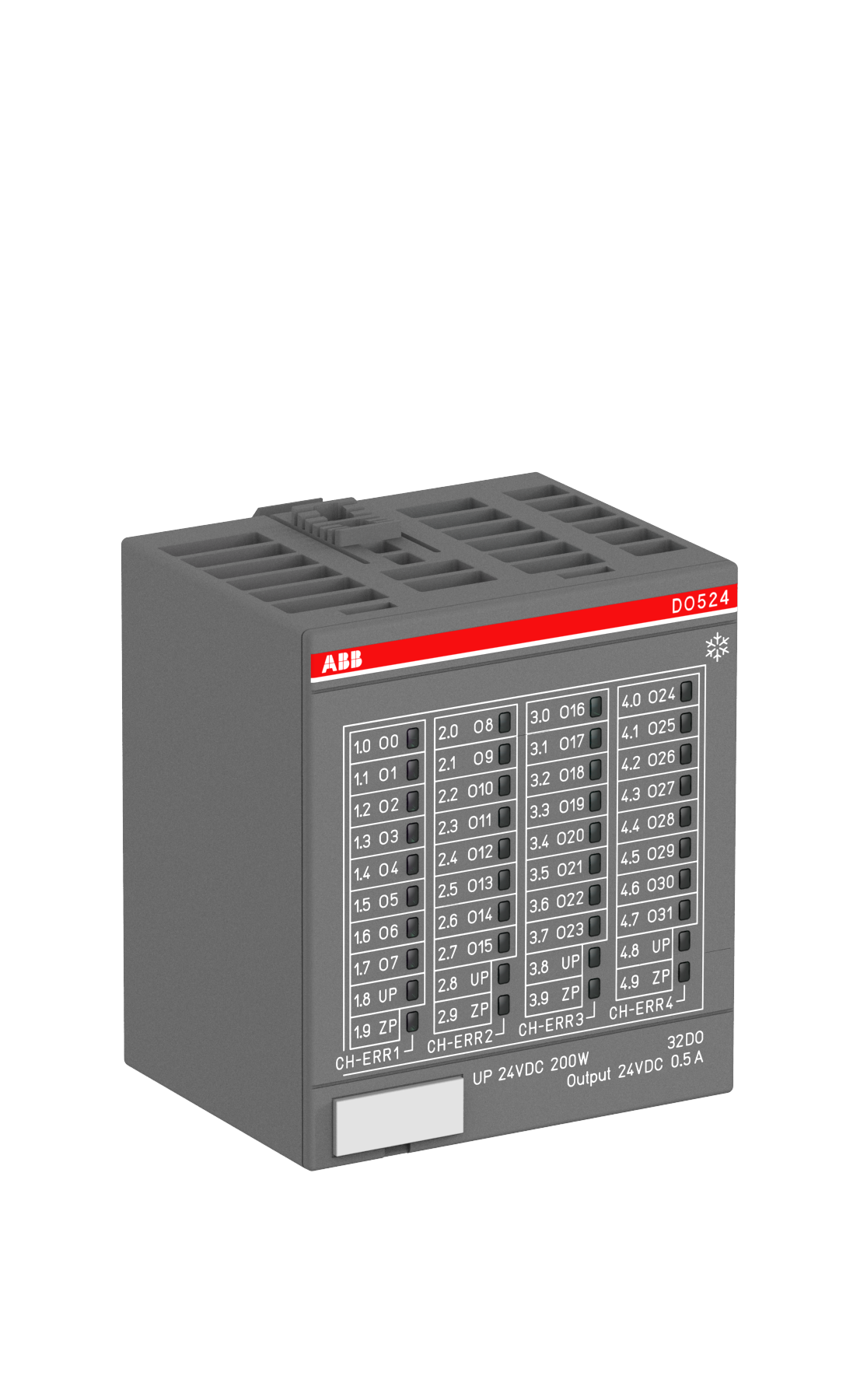

ABB 1SAP440700R0001 DO524-XC 32 DO 24VDC 0.5A digital output module – PLC I/O Module
ABB 1SAP440700R0001 DO524-XC 32 DO 24VDC 0.5A digital output module – PLC I/O Module

ABB 1SAP440700R0001 DO524-XC 32 DO 24VDC 0.5A eXtreme Conditions PLC I/O Module

Brand: ABB
Reference No: 1SAP440700R0001
Catalog No: DO524-XC
Series: S500 I/O modules
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$304.75

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB DO524-XC (order code 1SAP440700R0001) is a 32-channel 24 V DC transistor output module for the AC500-XC platform, switching up to 0.5 A per point over 1-wire connections. It runs on a 20.4-28.8 V DC supply and carries an IP20 enclosure rating built for the -30C to +70C eXtreme Conditions range.

Technical Specifications

Order code 1SAP440700R0001
Type code DO524-XC
Brand ABB
Series AC500-XC S500 I/O modules
Function 32 DO: 24VDC 0.5A, 1-wire
Number of Digital Outputs 32
Output Type Transistor
Output Voltage Type DC
Output Current 0.5 A
Output Voltage Maximum 20.4-28.8 V
Degree of Protection IP20
Supply Voltage 20.4-28.8 V DC
Net Weight 0.11 kg
Gross Weight 0.134 kg
Dimensions, L x H x W 62 x 76 x 67.5 mm
EAN 4013614482724

Selection Notes

DO524-XC puts 32 transistor outputs rated 0.5 A each in one module, enough density for lamp banks, small relay coils, or solenoid pilots without stacking several output modules. The 1-wire termination fits standard 24 V DC loads rather than sensors needing a third wire — this is an output-only module paired with inputs handled elsewhere in the rack. For heavier loads per point, an 8-channel output module rated at higher current per point is the better fit than adding more 0.5 A channels.

Technical Details

Short Description
S500 digital output module: 32 DO, 24 V DC 0.5 A transistor, IP20, eXtreme Conditions.
Protection Type
IP20
Catalog No
DO524-XC
Delivery Date (Days)
30 days
Model Number
DO524-XC
Tariff Code
853710
