ABB 1SAP440500R0001 DC523-XC 24 Configurable DI/DO 24 VDC 0.5A XC PLC I/O Module

% $-290.38

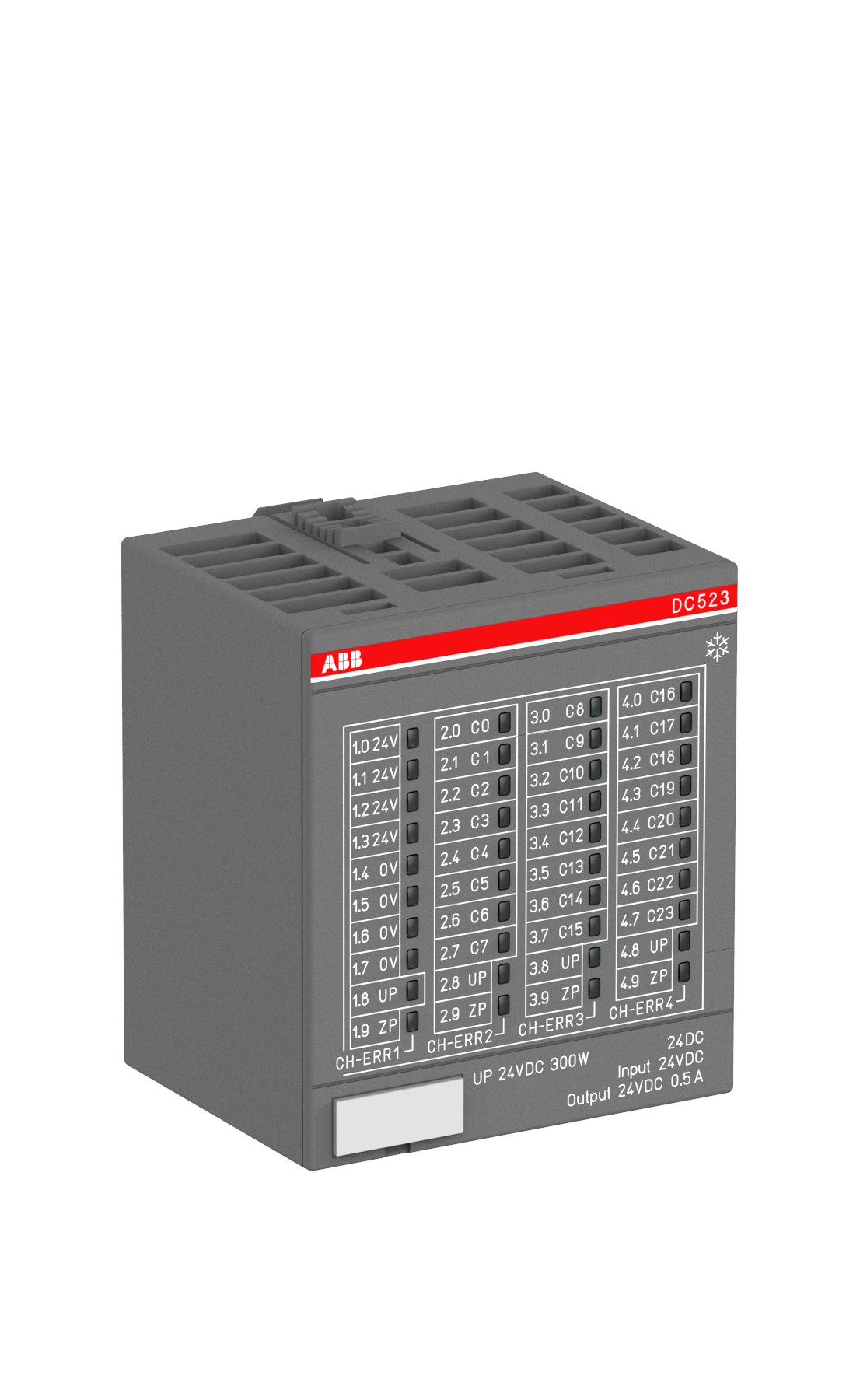

ABB 1SAP440500R0001 DC523-XC PLC digital I/O module - 24 configurable DI/DO
ABB 1SAP440500R0001 DC523-XC PLC digital I/O module - 24 configurable DI/DO

ABB 1SAP440500R0001 DC523-XC 24 Configurable DI/DO 24 VDC 0.5A XC PLC I/O Module

Brand: ABB
Reference No: 1SAP440500R0001
Catalog No: DC523-XC
Series: S500 I/O modules
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$290.38

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB DC523-XC (order code 1SAP440500R0001) is an S500 digital I/O module for the AC500-XC line offering 24 channels individually configurable as DI or DO at 24 V DC, 0.5 A transistor outputs. It provides 4 auxiliary 0 V and 4 auxiliary 24 V DC terminals for 2 to 3-wire hookup, operates -30 to +70 C, and carries an IP20 rating.

Technical Specifications

Order Code 1SAP440500R0001
Type Code DC523-XC
Brand ABB
Series S500 I/O modules
EAN 4016779846134
Net Weight 0.118 kg
Gross Weight 0.142 kg
Dimensions (L x H x W) 62 x 76 x 67.5 mm
Function 24 configurable DI/DO: 24VDC 0.5A. 4 aux. terminals 0V. 4 aux. terminals 24VDC
Number of Digital Configurable I/Os 24
Input Current 5 mA
Output Transistor, 0.5 A
Degree of Protection IP20
Supply Voltage 20.4...28.8 V DC
Ambient Temperature Operation -30...+70 C, storage -40...+85 C

Selection Notes

Specify the DC523-XC when a digital rack needs the highest configurable channel density in the DC5xx group — 24 points in one slot covers a larger mixed DI/DO station than the 16-channel module without adding a second card. Where only 16 configurable points are needed, the smaller module in the same line frees panel space and lowers cost.

Technical Details

Short Description
S500 digital I/O module (DC523-XC) - 24 configurable DI/DO channels, 24 V DC, 0.5 A, IP20.
Protection Type
IP20
Catalog No
DC523-XC
Delivery Date (Days)
30 days
Model Number
DC523-XC
Tariff Code
853710
