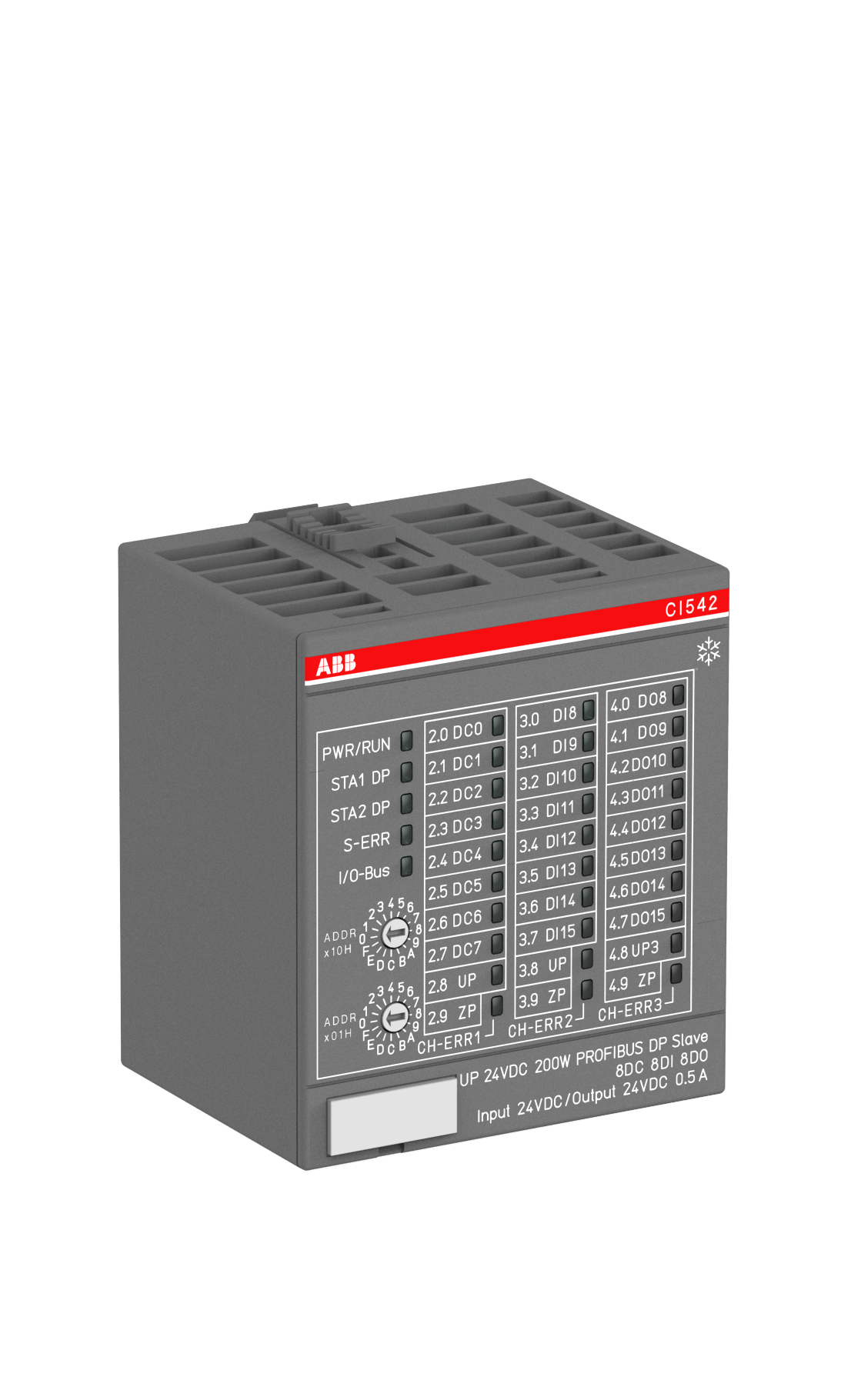

ABB 1SAP424200R0001 CI542-DP-XC PROFIBUS Slave 8DI 8DO 8 Configurable Remote I/O Remote I/O Module

% $-362.25
ABB 1SAP424200R0001 CI542-DP-XC PROFIBUS slave 8DI 8DO 8 configurable – Remote I/O Module
ABB 1SAP424200R0001 CI542-DP-XC PROFIBUS slave 8DI 8DO 8 configurable – Remote I/O Module

ABB 1SAP424200R0001 CI542-DP-XC PROFIBUS Slave 8DI 8DO 8 Configurable Remote I/O Remote I/O Module

Brand: ABB
Reference No: 1SAP424200R0001
Catalog No: CI542-DP-XC
Series: Communication interface modules
Tariff Code (HS): 853710
Communication: PROFIBUS DP slave, RS-485
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$362.25

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB CI542-DP-XC (order code 1SAP424200R0001) is a PROFIBUS DP slave interface module for the AC500-XC platform, with 8 digital inputs, 8 digital outputs, and 8 configurable DI/DO points built in, 24 digital points total with no analog channels. It extends with up to 10 additional S500 I/O modules on the same PROFIBUS node.

Technical Specifications

Order code 1SAP424200R0001
Type code CI542-DP-XC
Brand ABB
Series AC500-XC Communication interface modules
Function PROFIBUS slave. 8 DI: 24VDC. 8 DO: 24VDC 0.5A. 8 configurable DI/DO: 24VDC 0.5A
Hardware Interfaces, RS-485 1
Number of Digital Inputs 8
Number of Digital Outputs 8
Number of Digital Configurable I/Os 8
Input Voltage Type DC
Input Voltage 24 V DC
Input Current 5 mA
Delay Time 0.1-32 ms
Output Type Transistor
Output Current 0.5 A
Output Voltage Maximum 20.4-28.8 V
Degree of Protection IP20
Supply Voltage 20.4-28.8 V DC
Ambient Air Temperature, Operation -30C to +70C
Ambient Air Temperature, Storage -40C to +85C
Net Weight 0.138 kg
Dimensions, L x H x W 62 x 76 x 67.5 mm
EAN 4016779866330

Selection Notes

CI542-DP-XC replaces the analog channels found on its analog-equipped sibling with 8 configurable DI/DO points instead, giving 24 digital points on board (8 DI, 8 DO, 8 configurable) plus the same extension slot for up to 10 additional S500 modules on the PROFIBUS node. The configurable channels can be set as input or output per point, which absorbs late changes in I/O count without a hardware swap. Choose the analog-equipped sibling instead when the station needs voltage, current, or RTD measurement.

Technical Details

Short Description
PROFIBUS slave interface module: 8 DI, 8 DO, 8 configurable DI/DO, extendable to 10 modules.
Protection Type
IP20
Catalog No
CI542-DP-XC
Delivery Date (Days)
30 days
Model Number
CI542-DP-XC
Tariff Code
853710
