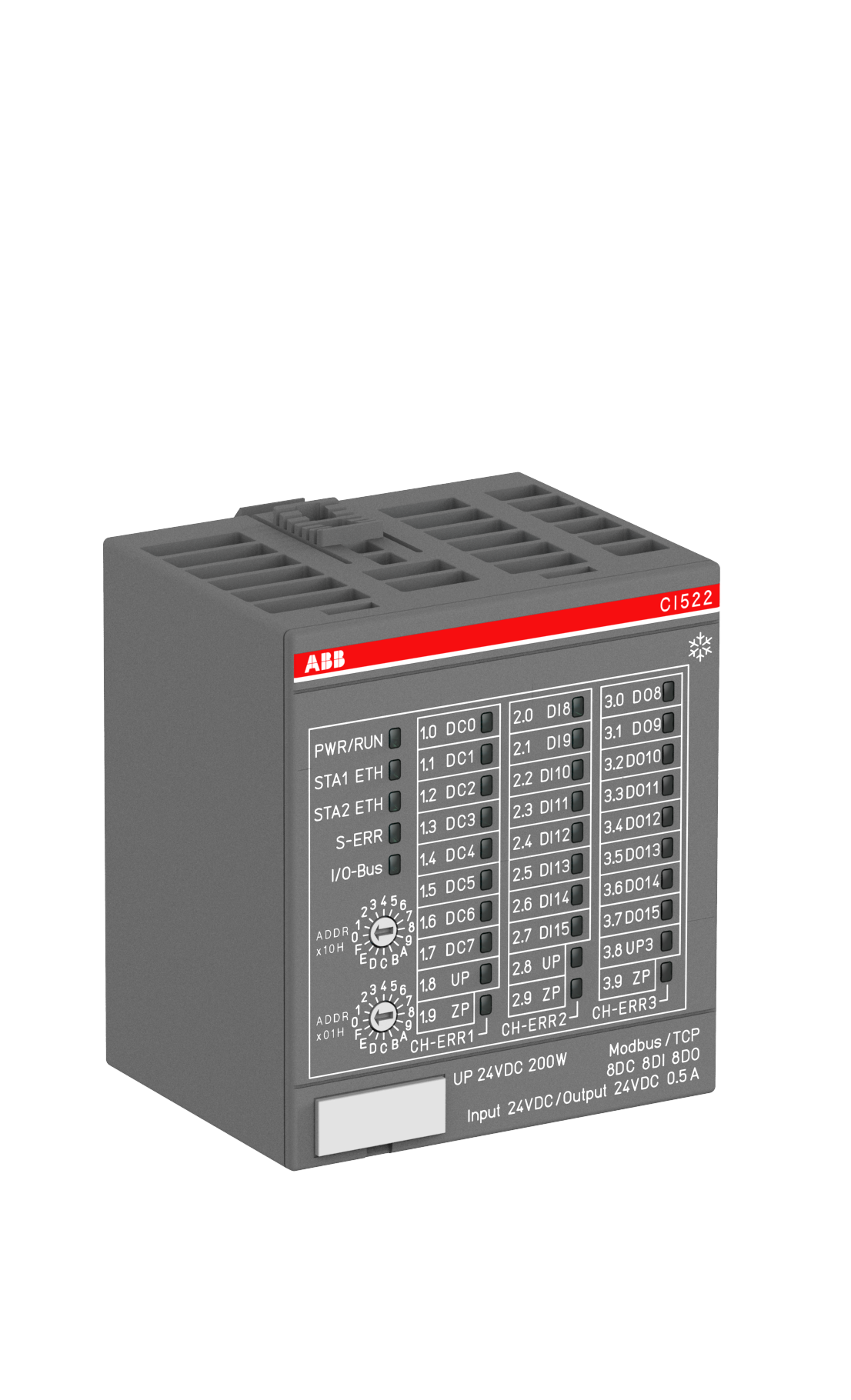

ABB 1SAP422200R0001 CI522-MODTCP-XC Modbus TCP 8DI 8DO 8 Configurable Remote I/O Remote I/O Module

% $-376.63
ABB 1SAP422200R0001 CI522-MODTCP-XC Modbus TCP 8DI 8DO 8 configurable – Remote I/O Module
ABB 1SAP422200R0001 CI522-MODTCP-XC Modbus TCP 8DI 8DO 8 configurable – Remote I/O Module

ABB 1SAP422200R0001 CI522-MODTCP-XC Modbus TCP 8DI 8DO 8 Configurable Remote I/O Remote I/O Module

Brand: ABB
Reference No: 1SAP422200R0001
Catalog No: CI522-MODTCP-XC
Series: Communication interface modules
Tariff Code (HS): 853710
Communication: Modbus TCP server
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$376.63

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB CI522-MODTCP-XC (order code 1SAP422200R0001) is a Modbus TCP server interface module for the AC500-XC platform, with 8 digital inputs, 8 digital outputs, and 8 configurable DI/DO points built in, 24 digital points total with no analog channels onboard. It extends with up to 10 additional S500 I/O modules on the node.

Technical Specifications

Order code 1SAP422200R0001
Type code CI522-MODTCP-XC
Brand ABB
Series AC500-XC Communication interface modules
Function Modbus TCP server. 8 DI: 24VDC. 8 DO: 24VDC 0.5A. 8 configurable DI/DO: 24VDC 0.5A
Number of Digital Inputs 8
Number of Digital Outputs 8
Number of Digital Configurable I/Os 8
Input Voltage Type DC
Input Voltage 24 V DC
Input Current 5 mA
Delay Time 0.1-32 ms
Output Type Transistor
Output Current 0.5 A
Output Voltage Maximum 20.4-28.8 V
Degree of Protection IP20
Supply Voltage 20.4-28.8 V DC
Net Weight 0.138 kg
Dimensions, L x H x W 62 x 76 x 67.5 mm
EAN 4013614485947

Selection Notes

CI522-MODTCP-XC is a Modbus TCP server head module built around 24 digital points (8 DI, 8 DO, 8 configurable DI/DO) with no analog channels, extendable with up to 10 additional S500 I/O modules on the same node. The 8 configurable points can be set as input or output per channel, which absorbs late I/O-count changes without a hardware swap. Choose an analog-equipped sibling instead when the application needs voltage, current, or RTD measurement.

Technical Details

Short Description
Modbus TCP server interface module: 8 DI, 8 DO, 8 configurable DI/DO, extendable to 10.
Protection Type
IP20
Catalog No
CI522-MODTCP-XC
Delivery Date (Days)
30 days
Model Number
CI522-MODTCP-XC
Tariff Code
853710
