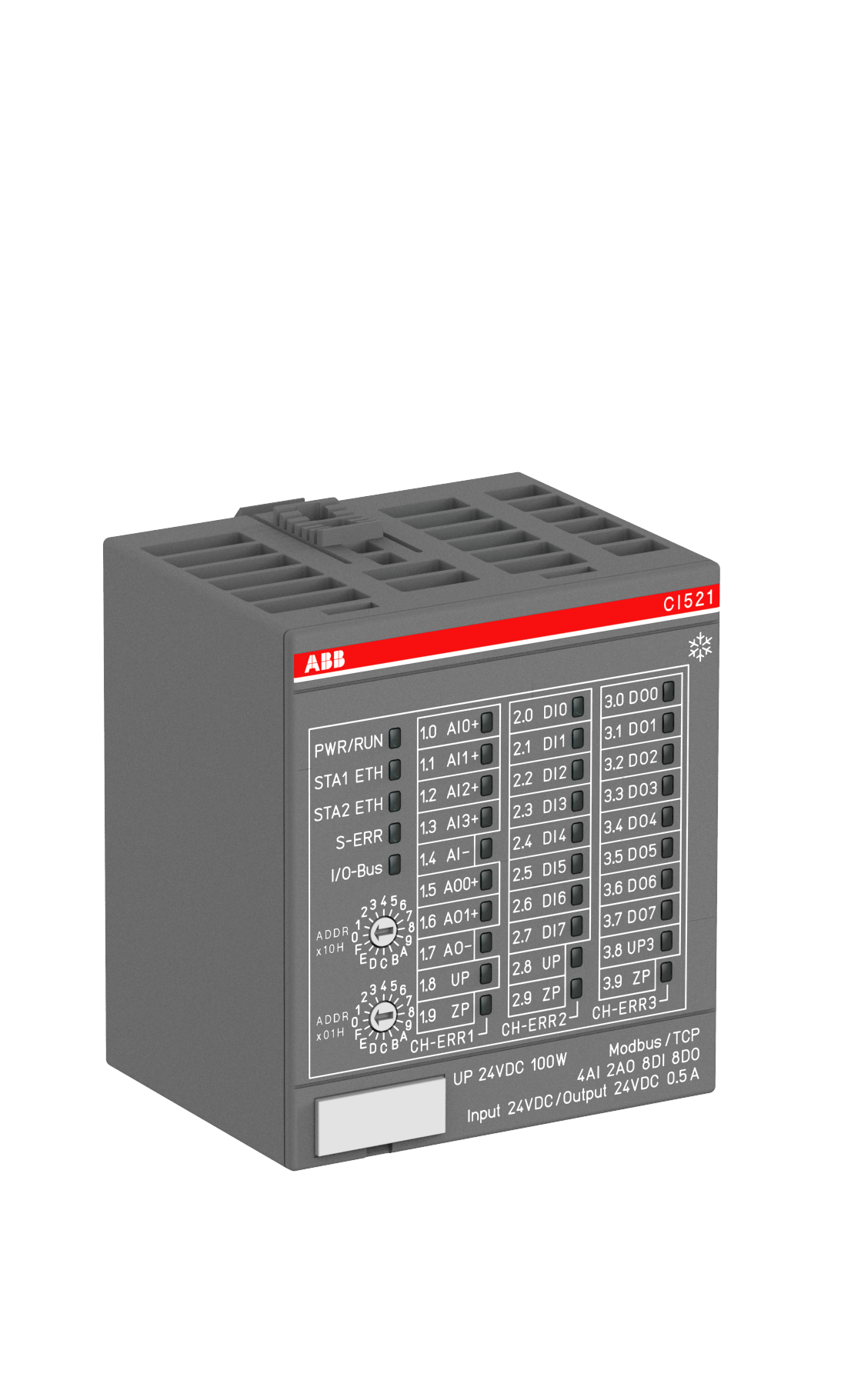

ABB 1SAP422100R0001 CI521-MODTCP-XC Modbus TCP 4AI 2AO 8DI 8DO Remote I/O Module

% $-684.25
ABB 1SAP422100R0001 CI521-MODTCP-XC Modbus TCP 4AI 2AO 8DI 8DO – Remote I/O Module
ABB 1SAP422100R0001 CI521-MODTCP-XC Modbus TCP 4AI 2AO 8DI 8DO – Remote I/O Module

ABB 1SAP422100R0001 CI521-MODTCP-XC Modbus TCP 4AI 2AO 8DI 8DO Remote I/O Module

Brand: ABB
Reference No: 1SAP422100R0001
Catalog No: CI521-MODTCP-XC
Series: Communication interface modules
Tariff Code (HS): 853710
Communication: Modbus TCP server
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$684.25

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB CI521-MODTCP-XC (order code 1SAP422100R0001) is a Modbus TCP server interface module for the AC500-XC platform, with 4 analog inputs, 2 analog outputs, 8 digital inputs, and 8 digital outputs built in. It extends with up to 10 additional S500 I/O modules on the same node and carries an IP20 enclosure rating.

Technical Specifications

Order code 1SAP422100R0001
Type code CI521-MODTCP-XC
Brand ABB
Series AC500-XC Communication interface modules
Function Modbus TCP server. 4 AI: U, I, RTD. 2 AO: U, I. 8 DI: 24VDC. 8 DO: 24VDC 0.5A
Analog Inputs 4
Analog Outputs 2
Number of Digital Inputs 8
Number of Digital Outputs 8
Input Voltage Type DC
Input Voltage 24 V DC
Input Current 5 mA
Delay Time 0.1-32 ms
Output Type Transistor
Output Current 0.5 A
Output Voltage Maximum 20.4-28.8 V
Degree of Protection IP20
Supply Voltage 20.4-28.8 V DC
Net Weight 0.138 kg
Dimensions, L x H x W 62 x 76 x 67.5 mm
EAN 4013614485923

Selection Notes

CI521-MODTCP-XC is a Modbus TCP server head module with 4 AI (U/I/RTD), 2 AO, 8 DI, and 8 DO onboard, extendable with up to 10 additional S500 I/O modules on the same node. Ethernet-based Modbus TCP masters poll it directly without a separate fieldbus gateway. Choose a digital-only sibling instead when the station only needs digital I/O and no analog channels.

Technical Details

Short Description
Modbus TCP server interface module: 4 AI, 2 AO, 8 DI, 8 DO, extendable to 10 I/O modules.
Protection Type
IP20
Catalog No
CI521-MODTCP-XC
Delivery Date (Days)
30 days
Model Number
CI521-MODTCP-XC
Tariff Code
853710
