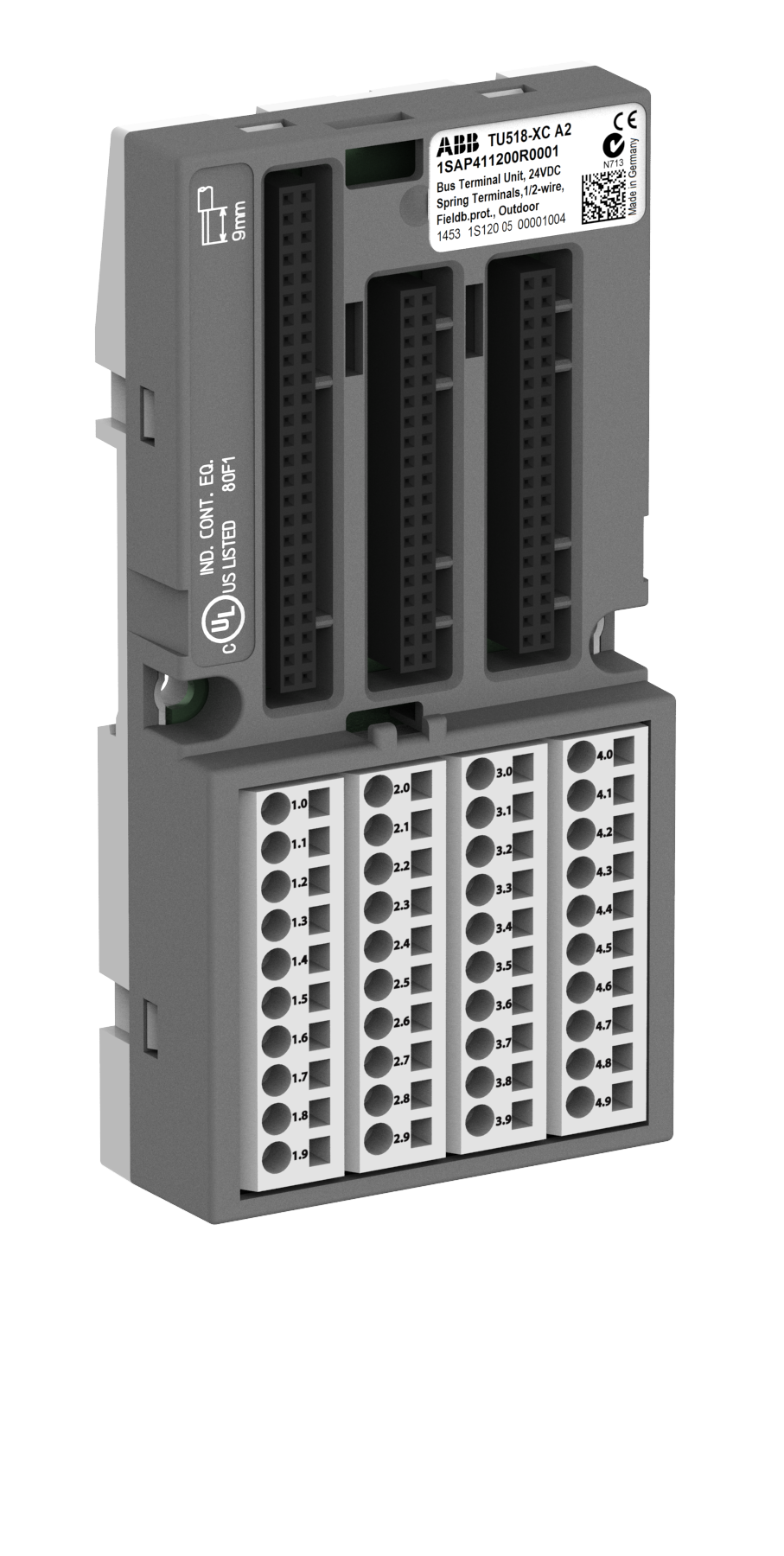

ABB 1SAP411200R0001 TU518-XC Spring Terminal Serial Interface PLC Connection Module

% $-69.00
ABB 1SAP411200R0001 TU518-XC serial interface terminal unit – PLC Connection Module
ABB 1SAP411200R0001 TU518-XC serial interface terminal unit – PLC Connection Module

ABB 1SAP411200R0001 TU518-XC Spring Terminal Serial Interface PLC Connection Module

Brand: ABB
Reference No: 1SAP411200R0001
Catalog No: TU518-XC
Series: Communication interface modules
Tariff Code (HS): 853890
Communication: Serial protocols, spring terminals
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$69.00

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB TU518-XC (order code 1SAP411200R0001) is an S500 interface terminal unit for serial-protocol communication modules on the AC500-XC platform, terminating field wiring through spring terminals alone, without a D-Sub connector of any kind. It carries an IP20 enclosure rating for eXtreme Conditions duty on the AC500-XC DIN-rail backplane assembly.

Technical Specifications

Order code 1SAP411200R0001
Type code TU518-XC
Brand ABB
Series AC500-XC Communication interface modules
Function For serial protocols. Spring terminals
Degree of Protection IP20
Ambient Air Temperature, Operation -30C to +70C
Ambient Air Temperature, Storage -40C to +85C
Net Weight 0.162 kg
Gross Weight 0.195 kg
Dimensions, L x H x W 28 x 135 x 67.5 mm
EAN 4016779866392

Selection Notes

TU518-XC terminates serial-protocol interface modules on spring terminals directly, without the D-Sub connector used on some sibling terminal units — useful when field wiring lands on a terminal block rather than a pre-made D-Sub cable. It is a passive carrier with no switching or logic function of its own. Match it to the serial interface module it is rated for rather than an Ethernet or 230 V AC/relay terminal unit.

Technical Details

Short Description
S500 serial interface terminal unit, spring terminals only, IP20, eXtreme Conditions.
Mounting Type
Terminal unit
Protection Type
IP20
Catalog No
TU518-XC
Delivery Date (Days)
30 days
Model Number
TU518-XC
Tariff Code
853890
