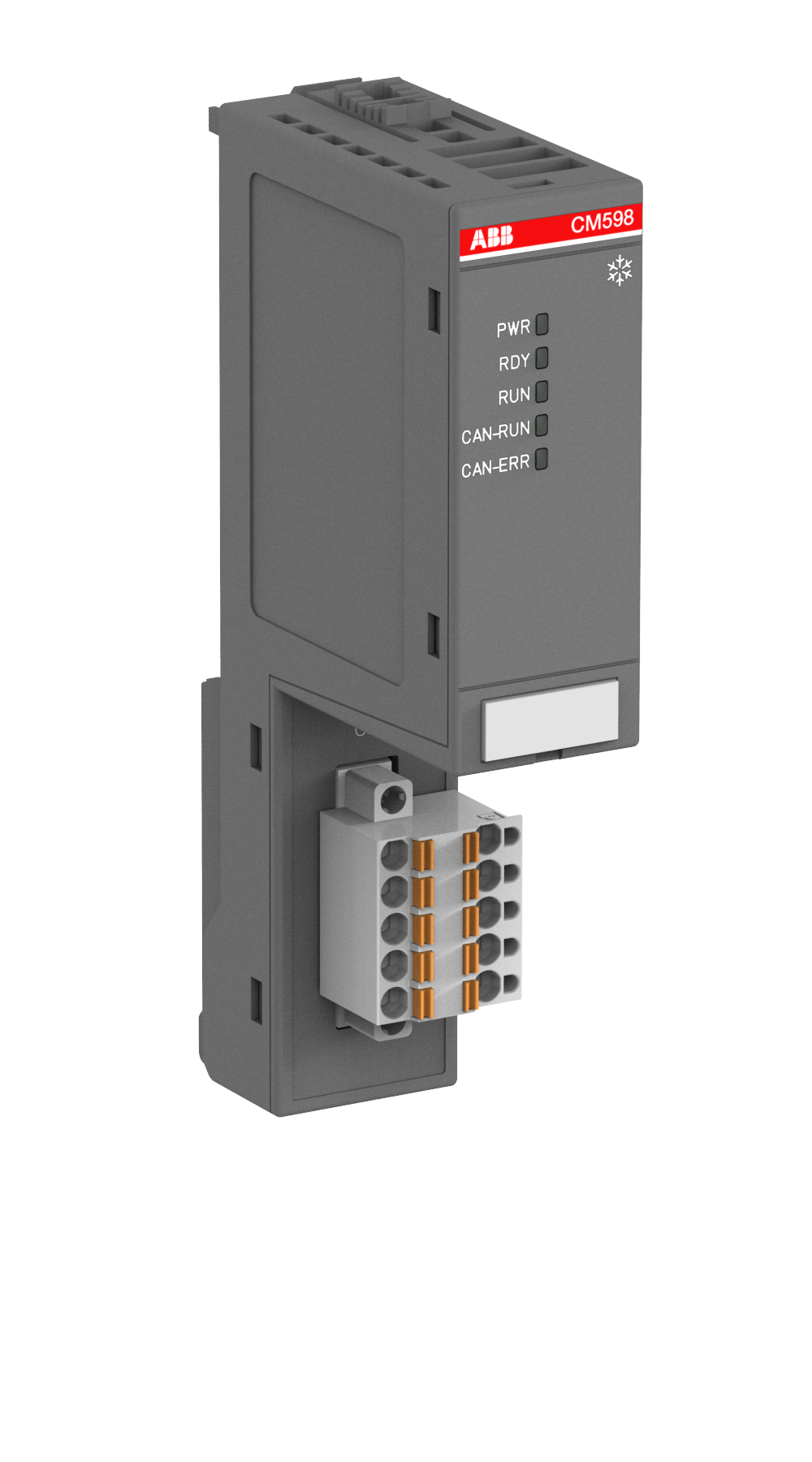

ABB 1SAP373800R0001 CM598-CN-XC CANopen Master 1 CAN Interface PLC Communication Module

% $-667.00
ABB 1SAP373800R0001 CM598-CN-XC PLC Communication Module – CANopen master, 1 CAN port
ABB 1SAP373800R0001 CM598-CN-XC PLC Communication Module – CANopen master, 1 CAN port

ABB 1SAP373800R0001 CM598-CN-XC CANopen Master 1 CAN Interface PLC Communication Module

Brand: ABB
Reference No: 1SAP373800R0001
Catalog No: CM598-CN-XC
Series: Communication modules
Tariff Code (HS): 851762
Communication: CANopen master, 1 CAN interface, 1 Mbit/s
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$667.00

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB CM598-CN-XC (order code 1SAP373800R0001) is an AC500-XC communication module that adds a CANopen master interface over one CAN port at up to 1 Mbit/s. Weighing 0.095 kg, it lets an AC500-XC CPU run its own CANopen network, scanning CANopen slave devices from other manufacturers or the matching slave-mode module in this family.

Technical Specifications

Order code 1SAP373800R0001
Type code CM598-CN-XC
Brand ABB
Series AC500-XC – Communication modules
EAN 4013614506260
Function CANopen master
Communication Interface Serial
Hardware Interfaces 1x CAN
Data Transmission Rate 1000 kbit/s
Net Weight 0.095 kg
Net Depth / Length 62 mm
Net Height 135 mm
Net Width 28 mm
Gross Weight 0.139 kg

Selection Notes

'CN' plus 'master' positions this module as the CANopen scanner on its single CAN port at up to 1 Mbit/s, polling slave devices rather than answering to one — the module to add when the AC500-XC CPU itself must run and scan a CANopen network. When the AC500-XC CPU needs to join someone else's CANopen network as a slave instead, the slave-mode communication module in this same family is the correct choice.

Technical Details

Short Description
ABB CM598-CN-XC communication module: CANopen master, 1 CAN interface, 1 Mbit/s.
Catalog No
CM598-CN-XC
Delivery Date (Days)
30 days
Model Number
CM598-CN-XC
Tariff Code
851762
