ABB 1SAP373700R0001 CM597-ETH-XC Modbus TCP 2x Ethernet PLC Communication Module

% $-667.00

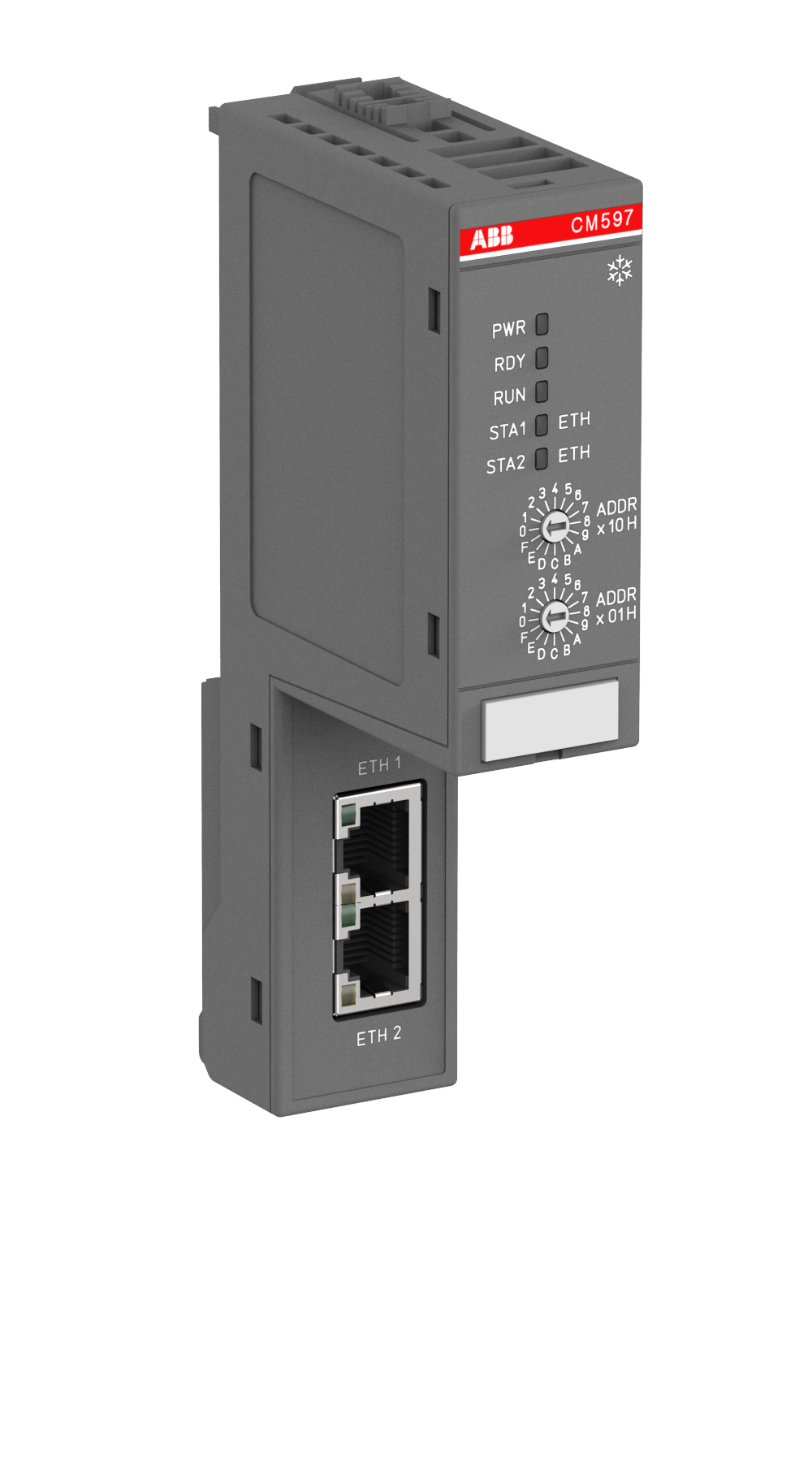

ABB 1SAP373700R0001 CM597-ETH-XC Modbus TCP PLC communication module
ABB 1SAP373700R0001 CM597-ETH-XC Modbus TCP PLC communication module

ABB 1SAP373700R0001 CM597-ETH-XC Modbus TCP 2x Ethernet PLC Communication Module

Brand: ABB
Reference No: 1SAP373700R0001
Catalog No: CM597-ETH-XC
Series: Communication modules
Tariff Code (HS): 851762
Communication: TCP/IP, UDP, Modbus TCP, 2x Ethernet (switch)
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$667.00

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB 1SAP373700R0001 (CM597-ETH-XC) is an AC500-XC communication module that gives the PLC two switched Ethernet ports running TCP/IP, UDP and Modbus TCP at up to 100 Mbit/s. The built-in switch lets the module daisy-chain to the next Ethernet device without a separate switch. Degree of protection is IP20.

Technical Specifications

Order code 1SAP373700R0001
Type code CM597-ETH-XC
Brand ABB
Series Communication modules
Function Protocols: TCP/IP, UDP, Modbus TCP
Ethernet ports 2 (switched)
Data transmission rate 100 Mbit/s (100000 kbit/s)
Degree of protection IP20
Net weight 0.102 kg
Gross weight 0.136 kg
Dimensions (L x H x W) 62 x 135 x 28 mm
EAN 4013614493577

Selection Notes

Pick this module for a Modbus TCP link rather than PROFINET: it speaks raw TCP/IP, UDP and Modbus TCP, not the PROFINET IO stack that the CM579-PNIO-XC and CM589-PNIO-XC modules run. The two switched Ethernet ports mean one cable in from the network and one cable out to the next Ethernet node, so no additional switch is needed in the cabinet.

Technical Details

Short Description
ABB 1SAP373700R0001 (CM597-ETH-XC) AC500-XC Modbus TCP module, 2x switched Ethernet, IP20.
Mounting Type
Terminal unit (AC500-XC backplane)
Protection Type
IP20
Catalog No
CM597-ETH-XC
Delivery Date (Days)
30 days
Model Number
CM597-ETH-XC
Tariff Code
851762
