ABB 1SAP372900R0011 CM589-PNIO-XC PROFINET IO Device PLC Communication Module

% $-526.13

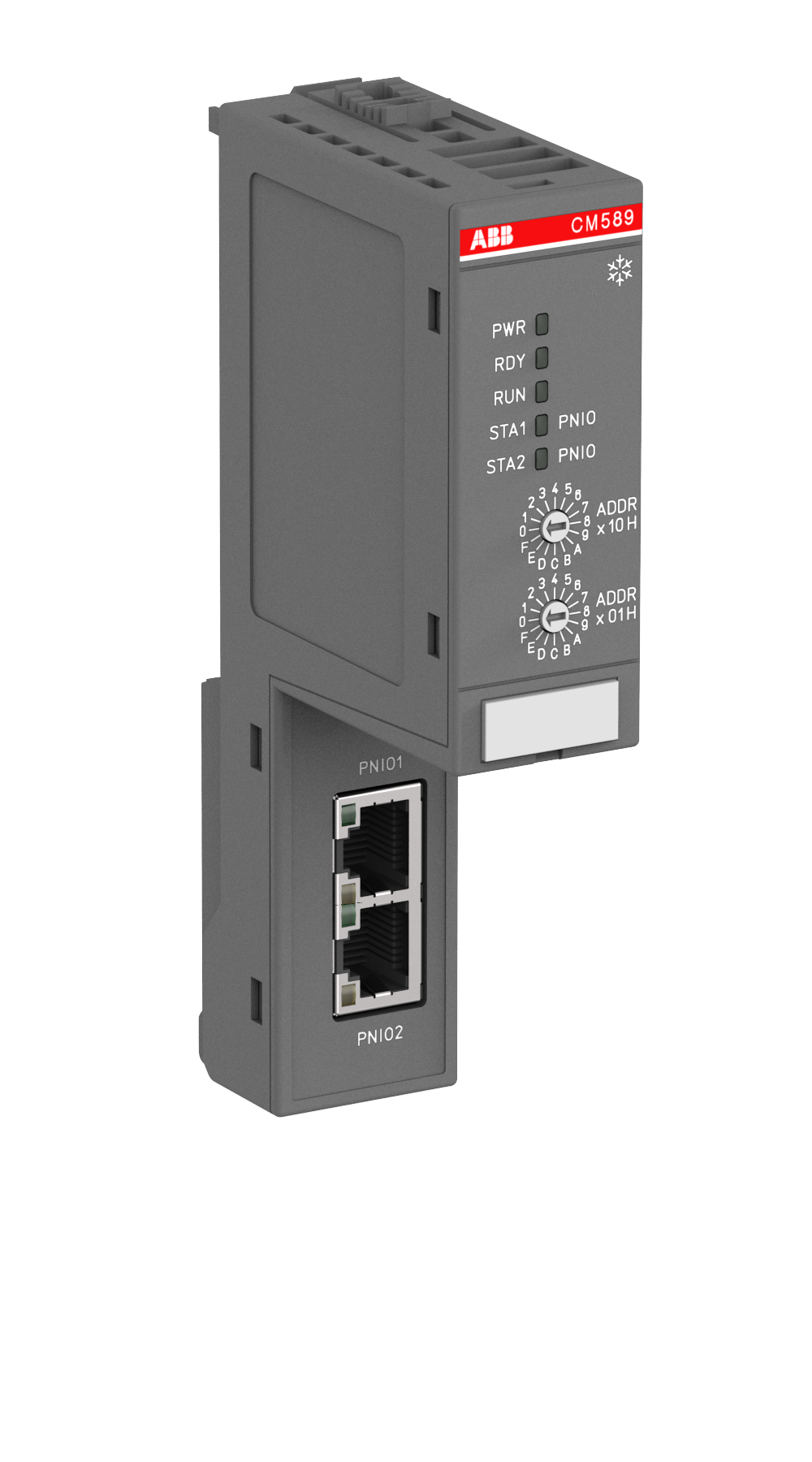

ABB 1SAP372900R0011 CM589-PNIO-XC PROFINET IO device PLC module
ABB 1SAP372900R0011 CM589-PNIO-XC PROFINET IO device PLC module

ABB 1SAP372900R0011 CM589-PNIO-XC PROFINET IO Device PLC Communication Module

Brand: ABB
Reference No: 1SAP372900R0011
Catalog No: CM589-PNIO-XC
Series: Communication modules
Tariff Code (HS): 851762
Communication: PROFINET IO RT device, 2x Ethernet (switch)
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$526.13

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

With the ABB 1SAP372900R0011 (CM589-PNIO-XC) communication module fitted, an AC500-XC PLC becomes a PROFINET IO RT device that a separate PROFINET controller scans over the module's two switched Ethernet ports, running at up to 100 Mbit/s. The module's degree of protection is IP20, matching the other CM5xx-XC communication modules in this series.

Technical Specifications

Order code 1SAP372900R0011
Type code CM589-PNIO-XC
Brand ABB
Series Communication modules
Function PROFINET IO RT device
Ethernet ports 2 (switched)
Data transmission rate 100 Mbit/s (100000 kbit/s)
Degree of protection IP20
Net weight 0.103 kg
Gross weight 0.136 kg
Dimensions (L x H x W) 62 x 135 x 28 mm
EAN 4016779921671

Selection Notes

Fit this module when the AC500-XC needs to report into another PLC's PROFINET controller as a subordinate device; if the AC500-XC itself must act as the controller scanning other PROFINET devices, the CM579-PNIO-XC module does that job instead. Hardware-wise the two are identical (2 switched Ethernet ports, 100 Mbit/s, IP20) — only the PROFINET role differs.

Technical Details

Short Description
ABB 1SAP372900R0011 (CM589-PNIO-XC) AC500-XC PROFINET IO RT device, 2x Ethernet, IP20.
Mounting Type
Terminal unit (AC500-XC backplane)
Protection Type
IP20
Catalog No
CM589-PNIO-XC
Delivery Date (Days)
30 days
Model Number
CM589-PNIO-XC
Tariff Code
851762
