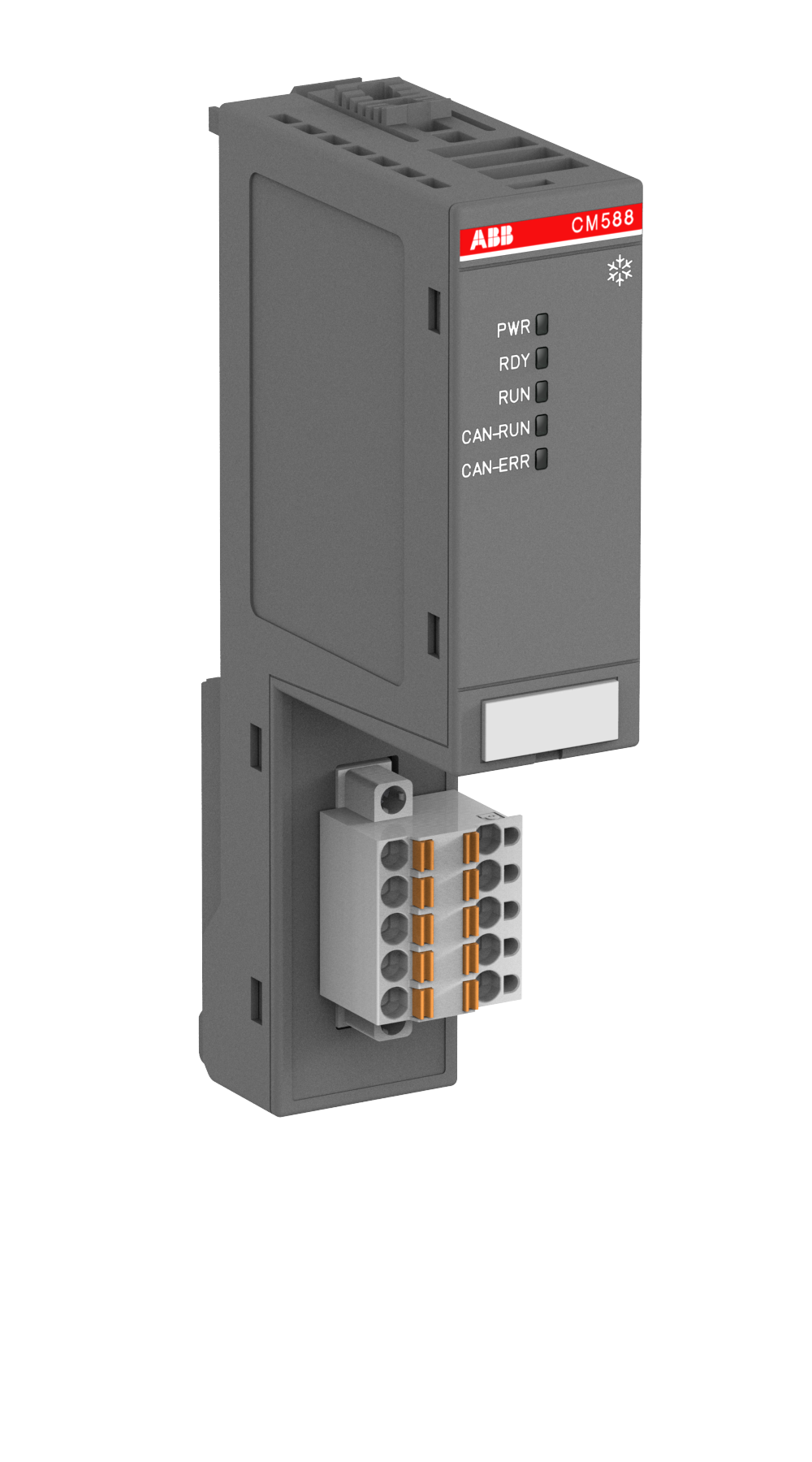

ABB 1SAP372800R0001 CM588-CN-XC CANopen Slave 1 CAN Interface PLC Communication Module

% $-425.50
ABB 1SAP372800R0001 CM588-CN-XC PLC Communication Module – CANopen slave, 1 CAN port
ABB 1SAP372800R0001 CM588-CN-XC PLC Communication Module – CANopen slave, 1 CAN port

ABB 1SAP372800R0001 CM588-CN-XC CANopen Slave 1 CAN Interface PLC Communication Module

Brand: ABB
Reference No: 1SAP372800R0001
Catalog No: CM588-CN-XC
Series: Communication modules
Tariff Code (HS): 851762
Communication: CANopen slave, 1 CAN interface, 1 Mbit/s
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$425.50

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB CM588-CN-XC (order code 1SAP372800R0001) is an AC500-XC communication module that adds a CANopen slave interface over one CAN port at up to 1 Mbit/s. IP20 rated and weighing 0.095 kg, it lets an AC500-XC CPU join an existing CANopen network as a slave device under an external master.

Technical Specifications

Order code 1SAP372800R0001
Type code CM588-CN-XC
Brand ABB
Series AC500-XC – Communication modules
EAN 4016779864817
Function CANopen slave
Communication Interface Serial
Hardware Interfaces 1x CAN
Data Transmission Rate 1000 kbit/s
Degree of Protection IP20
Ambient Air Temperature (Operation) -30...+70 degrees C
Ambient Air Temperature (Storage) -40...+85 degrees C
Net Weight 0.095 kg
Net Depth / Length 62 mm
Net Height 135 mm
Net Width 28 mm
Gross Weight 0.139 kg

Selection Notes

'CN' plus 'slave' positions this module as a CANopen node that answers to an external CAN master at up to 1 Mbit/s over its single CAN port — the module to add when the AC500-XC CPU itself must be scanned by another controller's CANopen network. When the AC500-XC CPU needs to be the CANopen master instead, the master-mode communication module in this same family is the correct choice.

Technical Details

Short Description
ABB CM588-CN-XC communication module: CANopen slave, 1 CAN interface, 1 Mbit/s, IP20.
Protection Type
IP20
Catalog No
CM588-CN-XC
Delivery Date (Days)
30 days
Model Number
CM588-CN-XC
Tariff Code
851762
