ABB 1SAP372200R0001 CM582-DP-XC PROFIBUS slave PLC communication module

ABB 1SAP372200R0001 CM582-DP-XC PROFIBUS Slave RS485 PLC Communication Module

Name: ABB 1SAP372200R0001 CM582-DP-XC PROFIBUS Slave RS485 PLC Communication Module
Brand: ABB
SKU: 1SAP372200R0001
Price: 526.13 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: ABB

Reference No: 1SAP372200R0001

Catalog No: CM582-DP-XC

Series: Communication modules

Tariff Code (HS): 851762

Communication: PROFIBUS DP slave, 1x RS485

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$526.13

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

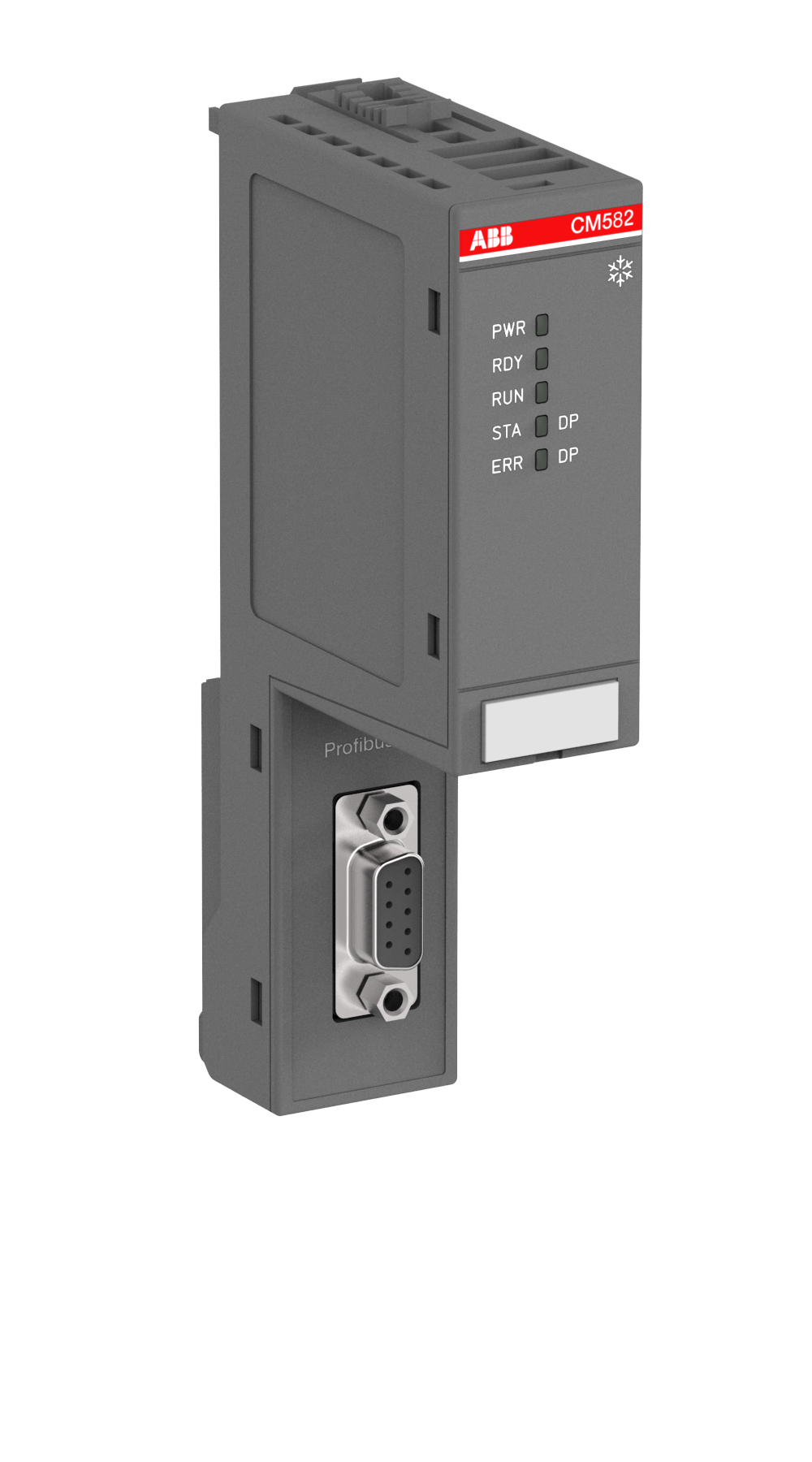

ABB 1SAP372200R0001 (CM582-DP-XC) is an AC500-XC communication module that adds PROFIBUS DP slave functionality to the PLC through one RS485 serial port, with data transfer up to 12 Mbit/s. It lets an AC500 CPU act as a slave device on a PROFIBUS DP network run by a higher-level controller or SCADA system. Degree of protection is IP20.

Technical Specifications

Order code	1SAP372200R0001
Type code	CM582-DP-XC
Brand	ABB
Series	Communication modules
Function	PROFIBUS slave
Communication interface	RS485 (1 serial port)
Data transmission rate	12 Mbit/s (12000 kbit/s)
Degree of protection	IP20
Net weight	0.101 kg
Gross weight	0.131 kg
Dimensions (L x H x W)	62 x 135 x 28 mm
EAN	4016779878272

Selection Notes

Pick this module when the AC500-XC CPU needs to join a PROFIBUS DP network as a slave reporting to an existing master, not as the master itself; for that role use the CM592-DP-XC master module instead. Its single RS485 port and 12 Mbit/s ceiling suit standard PROFIBUS DP cabling; if the network is PROFINET rather than PROFIBUS, the CM589-PNIO-XC or CM579-PNIO-XC Ethernet modules are the correct choice instead.

Technical Details

Short Description

ABB 1SAP372200R0001 (CM582-DP-XC) AC500-XC PROFIBUS DP slave module, RS485, 12 Mbit/s, IP20.

Mounting Type

Terminal unit (AC500-XC backplane)

Protection Type

IP20

Catalog No

CM582-DP-XC

Delivery Date (Days)

30 days

Model Number

CM582-DP-XC

Tariff Code

851762
