ABB 1SAP341000R0378 PM5650-2ETH-XC AC500-XC CPU 80MB 2x Ethernet Programmable Logic Controller

% $-2,432.25

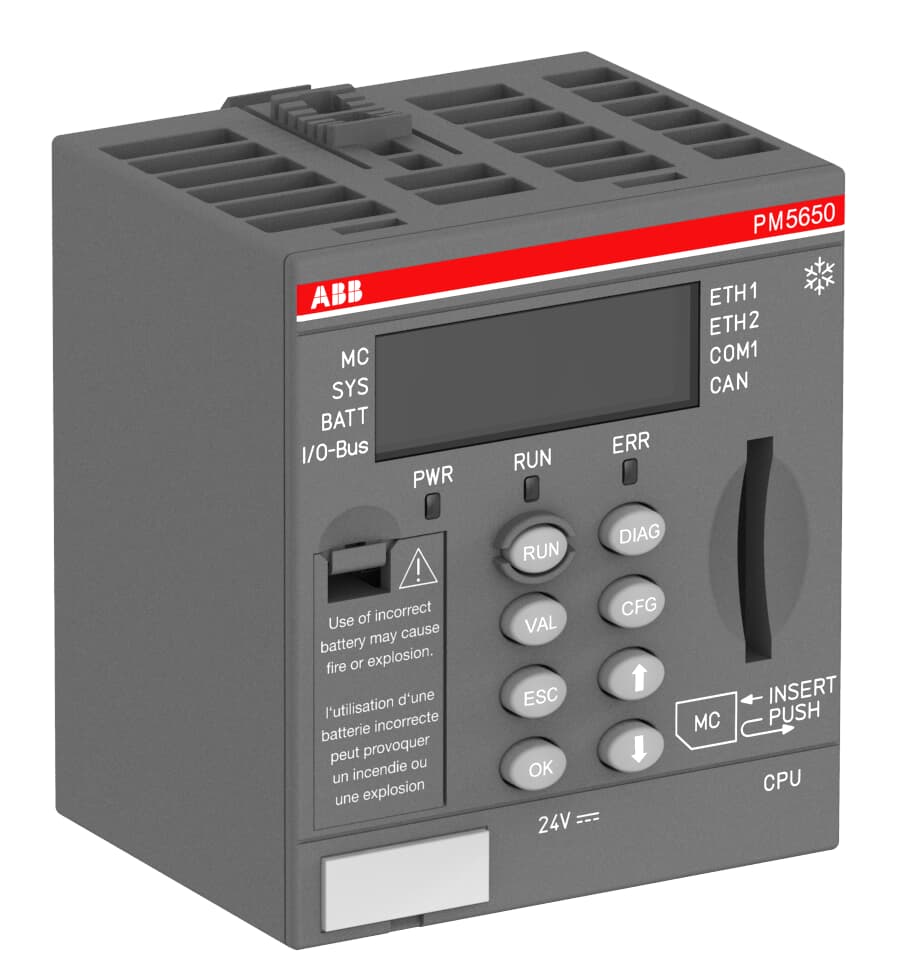

ABB 1SAP341000R0378 PM5650-2ETH-XC AC500-XC programmable logic controller CPU
ABB 1SAP341000R0378 PM5650-2ETH-XC AC500-XC programmable logic controller CPU

ABB 1SAP341000R0378 PM5650-2ETH-XC AC500-XC CPU 80MB 2x Ethernet Programmable Logic Controller

Brand: ABB
Reference No: 1SAP341000R0378
Catalog No: PM5650-2ETH-XC
Series: CPUs
Tariff Code (HS): 853710
Communication: 2x Ethernet, RS232/485, CAN
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$2,432.25

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

Stepping up from the entry PM5630, the ABB 1SAP341000R0378 (PM5650-2ETH-XC) is an AC500-XC processor module with 80 MB of program memory, two Ethernet ports, RS232/485 serial, a CAN interface and an onboard display, all running on 24 V DC within a 20.4-28.8 V DC supply window. It carries no onboard digital I/O.

Technical Specifications

Order code 1SAP341000R0378
Type code PM5650-2ETH-XC
Brand ABB
Series CPUs (AC500-XC)
Program memory 80 MB
Memory size (PIS raw value) 369256 kB
Memory type (user data) RAM
Interfaces 2x Ethernet, RS232/485, CAN
Display Onboard
Digital configurable I/Os (onboard) 0
Rated voltage 24 V DC
Supply voltage range 20.4-28.8 V DC
Controller processing time 0.00001 ms/instruction
Net weight 0.135 kg
Gross weight 0.158 kg
Dimensions (L x H x W) 62 x 76 x 67.5 mm
EAN 4013614570957

Selection Notes

At 80 MB, PM5650-2ETH-XC sits between the 8 MB PM5630-2ETH-XC and the 160 MB PM5670/PM5675 CPUs, a fit for programs and data logging that outgrow the entry module without needing the largest memory in the range. Its instruction processing time (0.00001 ms) is roughly twice as fast as the PM5630's, so it also suits applications with tighter scan-time requirements. Like its siblings it has no onboard digital I/O and needs a separate S500 I/O module plus terminal unit for field wiring.

Technical Details

Short Description
ABB 1SAP341000R0378 (PM5650-2ETH-XC) AC500-XC CPU, 80 MB, 2x Ethernet, RS232/485, CAN, 24 V DC.
Mounting Type
DIN-Rail (terminal unit)
Catalog No
PM5650-2ETH-XC
Delivery Date (Days)
30 days
Model Number
PM5650-2ETH-XC
Tariff Code
853710
