ABB 1SAP331000R0378 PM5630-2ETH-XC AC500-XC CPU 8MB 2x Ethernet Programmable Logic Controller

% $-1,152.88

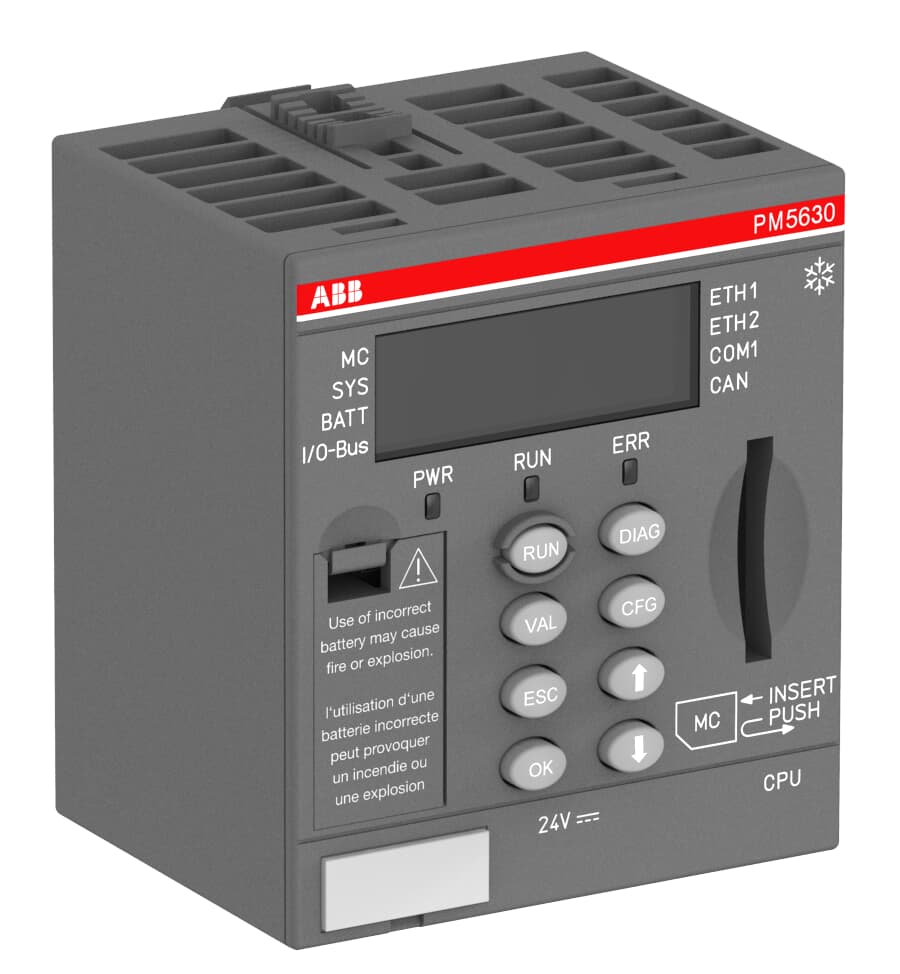

ABB 1SAP331000R0378 PM5630-2ETH-XC AC500-XC programmable logic controller CPU
ABB 1SAP331000R0378 PM5630-2ETH-XC AC500-XC programmable logic controller CPU

ABB 1SAP331000R0378 PM5630-2ETH-XC AC500-XC CPU 8MB 2x Ethernet Programmable Logic Controller

Brand: ABB
Reference No: 1SAP331000R0378
Catalog No: PM5630-2ETH-XC
Series: CPUs
Tariff Code (HS): 853710
Communication: 2x Ethernet, RS232/485, CAN
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$1,152.88

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SAP331000R0378 (PM5630-2ETH-XC) is an AC500-XC processor module, the entry CPU in the extreme-conditions AC500 line, offering 8 MB of program memory with two Ethernet ports, an RS232/485 serial port and a CAN interface built in, plus an onboard display. It runs on 24 V DC, 20.4-28.8 V DC accepted.

Technical Specifications

Order code 1SAP331000R0378
Type code PM5630-2ETH-XC
Brand ABB
Series CPUs (AC500-XC)
Program memory 8 MB
Memory size (PIS raw value) 39256 kB
Memory type (user data) RAM
Interfaces 2x Ethernet, RS232/485, CAN
Display Onboard
Digital configurable I/Os (onboard) 0
Rated voltage 24 V DC
Supply voltage range 20.4-28.8 V DC
Controller processing time 0.00002 ms/instruction
Net weight 0.135 kg
Gross weight 0.158 kg
Dimensions (L x H x W) 62 x 76 x 67.5 mm
EAN 4013614570940

Selection Notes

PM5630-2ETH-XC is the smallest-memory CPU in this AC500-XC lineup at 8 MB, suited to programs that fit comfortably under that ceiling; the PM5650-2ETH-XC (80 MB), PM5670-2ETH-XC (160 MB) and PM5675-2ETH-XC (160 MB plus 8 GB flash) step up for larger logic or extensive data logging. It has no onboard digital I/O, so it needs a matching S500 I/O module and terminal unit for any field wiring.

Technical Details

Short Description
ABB 1SAP331000R0378 (PM5630-2ETH-XC) AC500-XC CPU, 8 MB, 2x Ethernet, RS232/485, CAN, 24 V DC.
Mounting Type
DIN-Rail (terminal unit)
Catalog No
PM5630-2ETH-XC
Delivery Date (Days)
30 days
Model Number
PM5630-2ETH-XC
Tariff Code
853710
