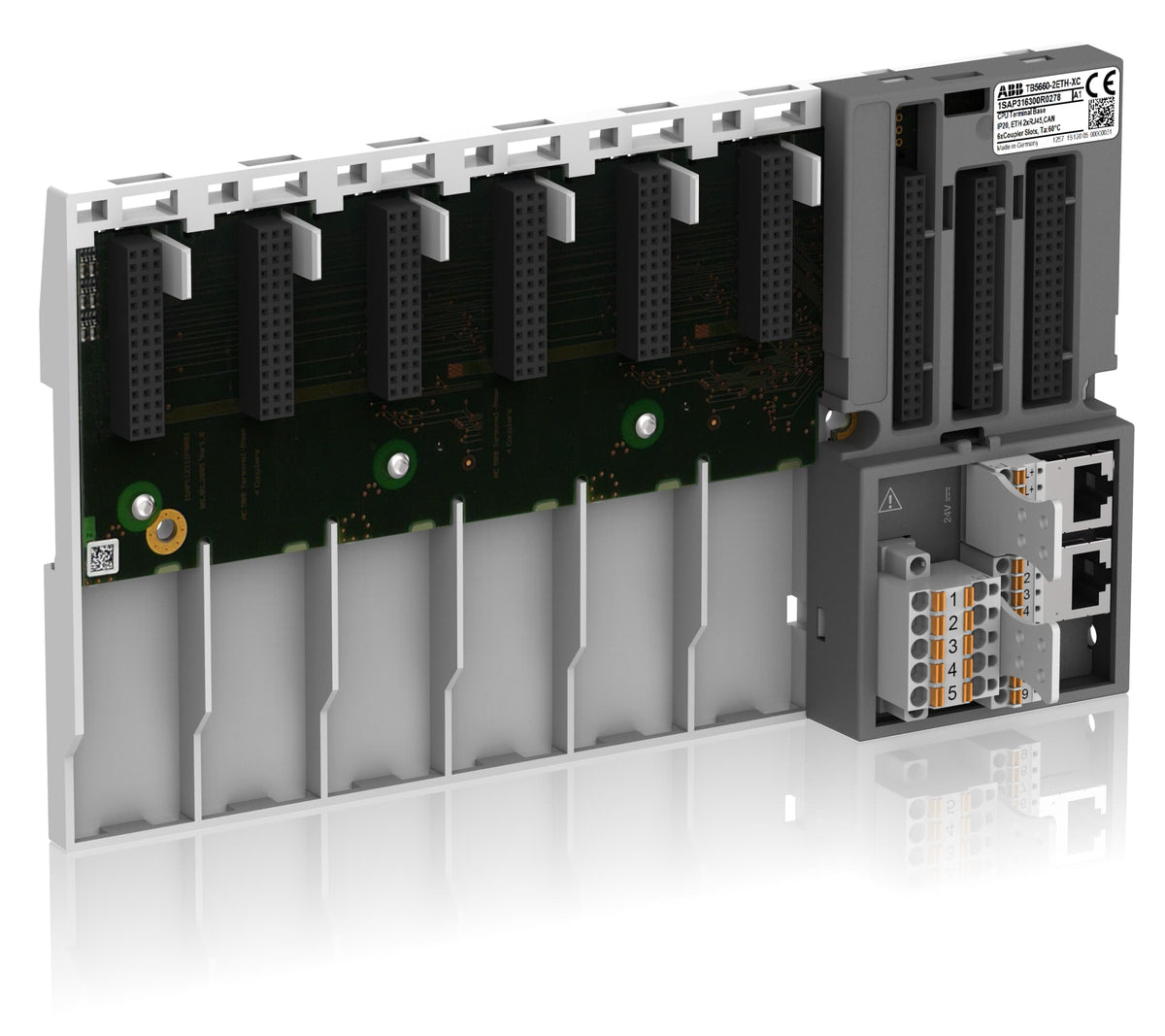

ABB 1SAP316300R0278 TB5660-2ETH-XC AC500-XC Terminal Base 6-Slot 2x Ethernet PLC Accessory

% $-230.00
ABB 1SAP316300R0278 TB5660-2ETH-XC AC500-XC terminal base PLC accessory
ABB 1SAP316300R0278 TB5660-2ETH-XC AC500-XC terminal base PLC accessory

ABB 1SAP316300R0278 TB5660-2ETH-XC AC500-XC Terminal Base 6-Slot 2x Ethernet PLC Accessory

Brand: ABB
Reference No: 1SAP316300R0278
Catalog No: TB5660-2ETH-XC
Series: CPUs
Tariff Code (HS): 853890
Communication: 2x Ethernet, 1x RS232/485, 1x CAN
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$230.00

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

At the top of the range, the ABB 1SAP316300R0278 (TB5660-2ETH-XC) is an AC500-XC terminal base for AC500 V3 PLC CPUs with six slots for communication modules, plus two Ethernet interfaces, one RS232/485 serial port and one CAN interface. It weighs 0.314 kg, spans 235.5 mm wide, and is rated IP20.

Technical Specifications

Order code 1SAP316300R0278
Type code TB5660-2ETH-XC
Brand ABB
Series CPUs (AC500-XC)
Function Terminal base for AC500 V3, 6 communication-module slots, 2x Ethernet, 1 serial, 1 CAN
Communication-module slots 6
Input voltage type DC
Degree of protection IP20
Net weight 0.314 kg
Gross weight 0.397 kg
Dimensions (L x H x W) 28 x 135 x 235.5 mm
EAN 4013614508981

Selection Notes

TB5660-2ETH-XC is the largest base in the TB56xx-XC range, for jobs running six CM5xx-XC communication modules on one CPU at once; anything below six modules fits on the TB5610, TB5620 or TB5640 base and takes up less panel width. Its 235.5 mm width is 56 mm wider than the 4-slot TB5640, matching the same 28 mm-per-slot increment seen across the smaller bases.

Technical Details

Short Description
ABB 1SAP316300R0278 (TB5660-2ETH-XC) AC500-XC terminal base, 6 comm-module slots, IP20.
Mounting Type
Terminal base (DIN-Rail)
Protection Type
IP20
Catalog No
TB5660-2ETH-XC
Delivery Date (Days)
30 days
Model Number
TB5660-2ETH-XC
Tariff Code
853890
