ABB 1SAP314300R0278 TB5640-2ETH-XC AC500-XC Terminal Base 4-Slot 2x Ethernet PLC Accessory

% $-253.00

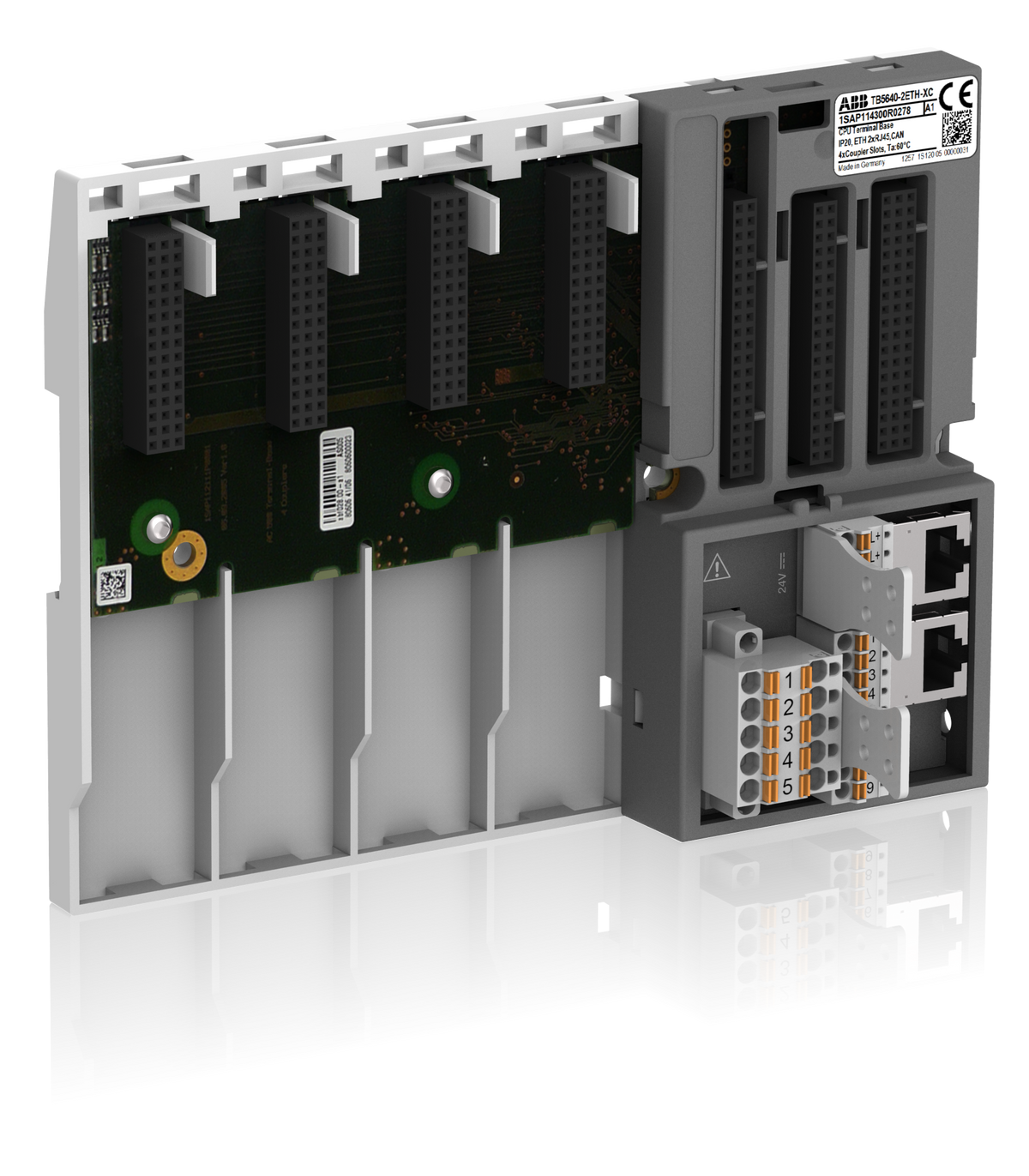

ABB 1SAP314300R0278 TB5640-2ETH-XC AC500-XC terminal base PLC accessory
ABB 1SAP314300R0278 TB5640-2ETH-XC AC500-XC terminal base PLC accessory

ABB 1SAP314300R0278 TB5640-2ETH-XC AC500-XC Terminal Base 4-Slot 2x Ethernet PLC Accessory

Brand: ABB
Reference No: 1SAP314300R0278
Catalog No: TB5640-2ETH-XC
Series: CPUs
Tariff Code (HS): 853890
Communication: 2x Ethernet, 1x RS232/485, 1x CAN
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$253.00

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SAP314300R0278 (TB5640-2ETH-XC) is an AC500-XC terminal base for AC500 V3 PLC CPUs with four slots for communication modules, alongside two Ethernet interfaces, one RS232/485 serial port and one CAN interface built in on the base itself. It weighs 0.242 kg, spans 179.5 mm wide, and is rated IP20.

Technical Specifications

Order code 1SAP314300R0278
Type code TB5640-2ETH-XC
Brand ABB
Series CPUs (AC500-XC)
Function Terminal base for AC500 V3, 4 communication-module slots, 2x Ethernet, 1 serial, 1 CAN
Communication-module slots 4
Input voltage type DC
Degree of protection IP20
Net weight 0.242 kg
Gross weight 0.323 kg
Dimensions (L x H x W) 28 x 135 x 179.5 mm
EAN 4013614522529

Selection Notes

TB5640-2ETH-XC covers applications running four CM5xx-XC communication modules on one CPU, for example mixed PROFIBUS, PROFINET and Modbus TCP links in the same cell; two modules or fewer fit on the shorter TB5610 or TB5620, while a sixth module requires stepping up to the TB5660. At 179.5 mm the base is noticeably wider than the 2-slot TB5620 (123.5 mm), a jump of 56 mm (2 x 28 mm) because it skips the 3-slot step.

Technical Details

Short Description
ABB 1SAP314300R0278 (TB5640-2ETH-XC) AC500-XC terminal base, 4 comm-module slots, IP20.
Mounting Type
Terminal base (DIN-Rail)
Protection Type
IP20
Catalog No
TB5640-2ETH-XC
Delivery Date (Days)
30 days
Model Number
TB5640-2ETH-XC
Tariff Code
853890
