ABB 1SAP312300R0278 TB5620-2ETH-XC AC500-XC Terminal Base 2-Slot 2x Ethernet PLC Accessory

% $-212.75
ABB 1SAP312300R0278 TB5620-2ETH-XC AC500-XC terminal base PLC accessory
ABB 1SAP312300R0278 TB5620-2ETH-XC AC500-XC terminal base PLC accessory

ABB 1SAP312300R0278 TB5620-2ETH-XC AC500-XC Terminal Base 2-Slot 2x Ethernet PLC Accessory

Brand: ABB
Reference No: 1SAP312300R0278
Catalog No: TB5620-2ETH-XC
Series: CPUs
Tariff Code (HS): 853890
Communication: 2x Ethernet, 1x RS232/485, 1x CAN
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$212.75

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

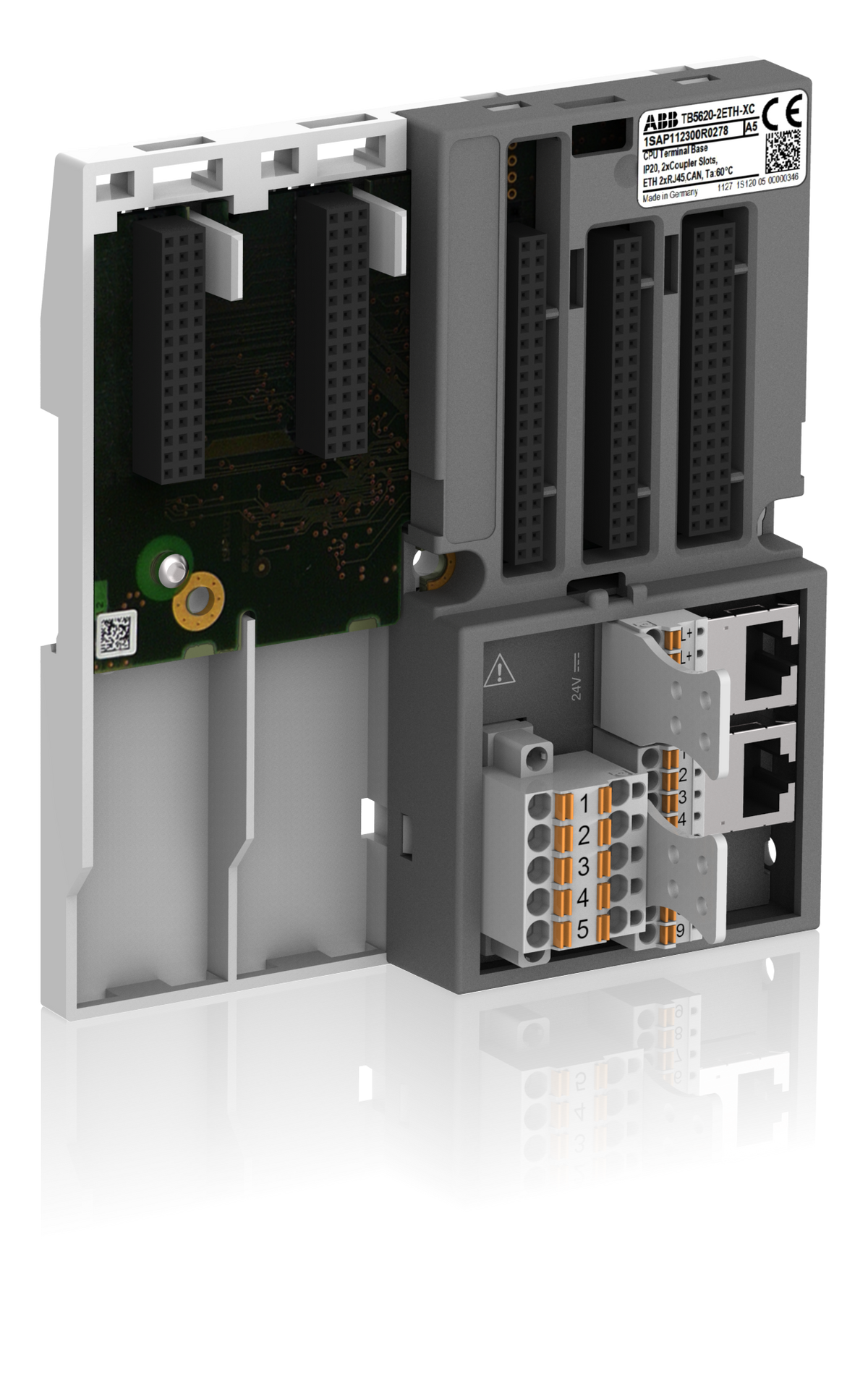

With two slots available for communication modules, the ABB 1SAP312300R0278 (TB5620-2ETH-XC) is an AC500-XC terminal base for AC500 V3 PLC CPUs, built in with two Ethernet interfaces, one RS232/485 serial port and one CAN interface. It weighs 0.188 kg, measures 123.5 mm wide across the base, and is rated IP20.

Technical Specifications

Order code 1SAP312300R0278
Type code TB5620-2ETH-XC
Brand ABB
Series CPUs (AC500-XC)
Function Terminal base for AC500 V3, 2 communication-module slots, 2x Ethernet, 1 serial, 1 CAN
Communication-module slots 2
Input voltage type DC
Degree of protection IP20
Net weight 0.188 kg
Gross weight 0.256 kg
Dimensions (L x H x W) 28 x 135 x 123.5 mm
EAN 4013614508967

Selection Notes

TB5620-2ETH-XC fits applications that need two CM5xx-XC communication modules at once, for example a PROFIBUS and a PROFINET link run side by side from the same CPU; a single-protocol job only needs the one-slot TB5610, while four or six simultaneous modules call for the TB5640 or TB5660 base. The base width grows by roughly 28 mm per slot across the range, so it is also a quick way to judge panel space before ordering.

Technical Details

Short Description
ABB 1SAP312300R0278 (TB5620-2ETH-XC) AC500-XC terminal base, 2 comm-module slots, IP20.
Mounting Type
Terminal base (DIN-Rail)
Protection Type
IP20
Catalog No
TB5620-2ETH-XC
Delivery Date (Days)
30 days
Model Number
TB5620-2ETH-XC
Tariff Code
853890
