ABB 1SAP310300R0278 TB5600-2ETH-XC AC500-XC Terminal Base 0-Slot 2x Ethernet PLC Accessory

% $-138.00
ABB 1SAP310300R0278 TB5600-2ETH-XC AC500-XC terminal base PLC accessory
ABB 1SAP310300R0278 TB5600-2ETH-XC AC500-XC terminal base PLC accessory

ABB 1SAP310300R0278 TB5600-2ETH-XC AC500-XC Terminal Base 0-Slot 2x Ethernet PLC Accessory

Brand: ABB
Reference No: 1SAP310300R0278
Catalog No: TB5600-2ETH-XC
Series: CPUs
Tariff Code (HS): 853890
Communication: 2x Ethernet, 1x RS232/485, 1x CAN
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$138.00

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

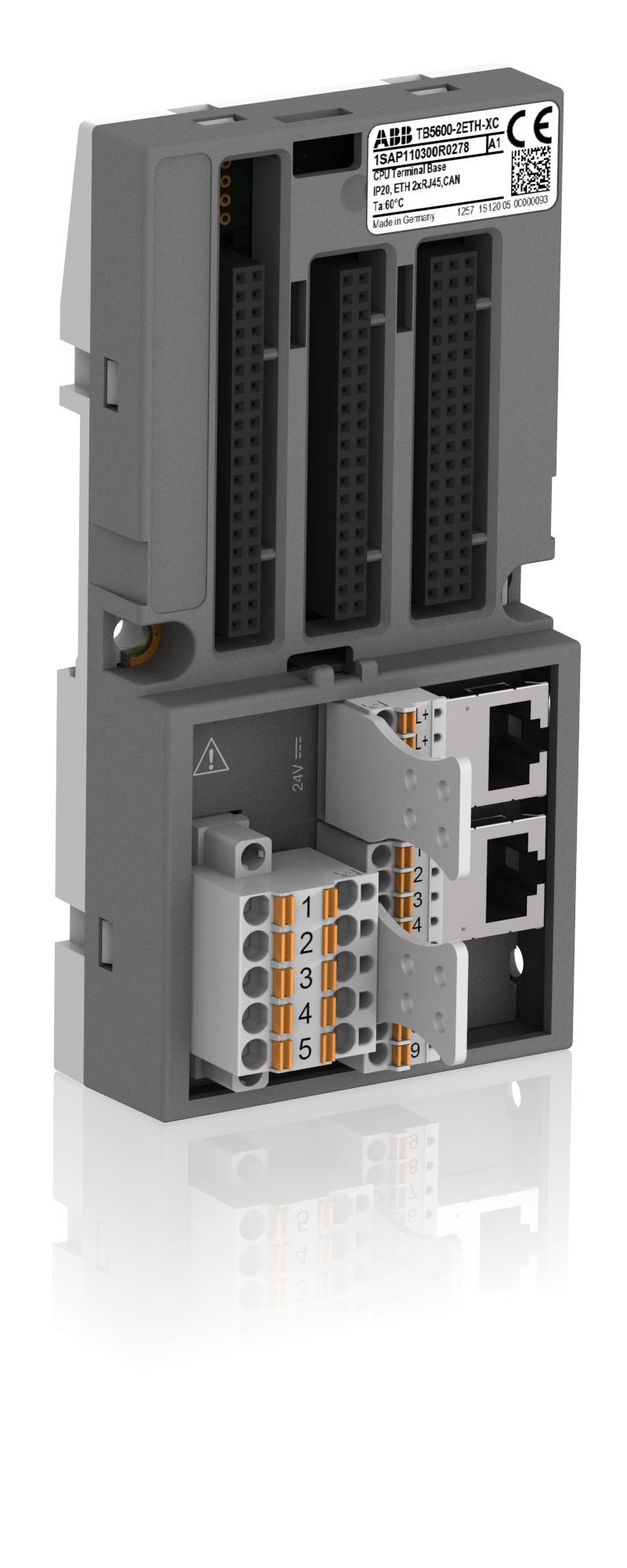

The ABB 1SAP310300R0278 (TB5600-2ETH-XC) is an AC500-XC terminal base for AC500 V3 CPUs, with no slot for a communication module, carrying two Ethernet interfaces, one RS232/485 serial port and one CAN interface. It is the base the CPU module clips into and that mounts the field wiring terminals, rated IP20.

Technical Specifications

Order code 1SAP310300R0278
Type code TB5600-2ETH-XC
Brand ABB
Series CPUs (AC500-XC)
Function Terminal base for AC500 V3, no communication-module slot, 2x Ethernet, 1 serial, 1 CAN
Communication-module slots 0
Input voltage type DC
Degree of protection IP20
Net weight 0.131 kg
Gross weight 0.2 kg
Dimensions (L x H x W) 28 x 135 x 67.5 mm
EAN 4013614508929

Selection Notes

TB5600-2ETH-XC is the no-slot base in this range, so it fits a PM56xx-XC CPU on its own without any CM5xx communication module attached; if the application needs PROFIBUS, PROFINET or Modbus TCP connectivity beyond the CPU's built-in Ethernet and serial ports, choose the TB5610, TB5620, TB5640 or TB5660 base instead, sized to the number of modules required. At 67.5 mm wide it is also the narrowest base in the family, the width growing by roughly 28 mm per added slot on the larger variants.

Technical Details

Short Description
ABB 1SAP310300R0278 (TB5600-2ETH-XC) AC500-XC terminal base, 0 comm-module slots, IP20.
Mounting Type
Terminal base (DIN-Rail)
Protection Type
IP20
Catalog No
TB5600-2ETH-XC
Delivery Date (Days)
30 days
Model Number
TB5600-2ETH-XC
Tariff Code
853890
