ABB 1SAP286100R0001 SM560-S-FD-4 4 PROFIsafe Networks SIL 3 Safety PLC

% $-2,596.13

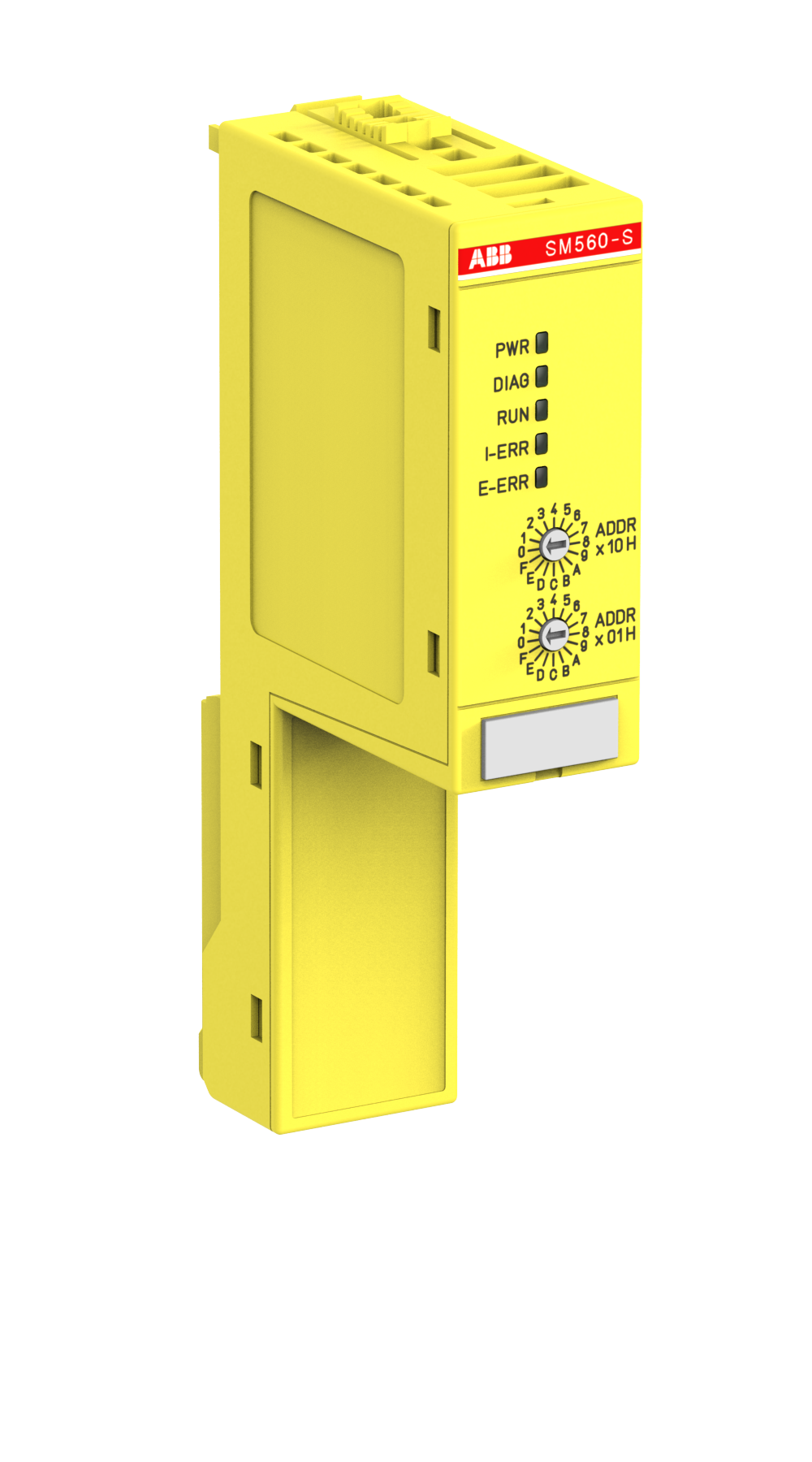

ABB 1SAP286100R0001 SM560-S-FD-4 Safety PLC – SIL 3, 4 PROFIsafe networks
ABB 1SAP286100R0001 SM560-S-FD-4 Safety PLC – SIL 3, 4 PROFIsafe networks

ABB 1SAP286100R0001 SM560-S-FD-4 4 PROFIsafe Networks SIL 3 Safety PLC

Brand: ABB
Reference No: 1SAP286100R0001
Catalog No: SM560-S-FD-4
Series: CPUs
Tariff Code (HS): 853710
Communication: F-Device, 4 PROFIsafe networks
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$2,596.13

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB SM560-S-FD-4 (order code 1SAP286100R0001) is an AC500-S safety processor module rated up to SIL 3, with F-Device functionality for four PROFIsafe networks. It holds 1000 kB of RAM, IP20 protection, and weighs 0.087 kg, suiting applications that need several independent PROFIsafe safety segments from one CPU.

Technical Specifications

Order code 1SAP286100R0001
Type code SM560-S-FD-4
Brand ABB
Series AC500-S – CPUs
EAN 4013614510236
Function Safety related module up to SIL 3 with F-Device functionality for 4 PROFIsafe networks
Safety Integrity Level (SIL) 2
Memory Size 1000 kB
Memory Type (User Data) RAM
Controller Processing Time 0.00005 ms
Number of Digital Configurable I/Os 0
Degree of Protection IP20
Net Weight 0.087 kg
Net Depth / Length 62 mm
Net Height 135 mm
Net Width 28 mm
Gross Weight 0.12 kg

Selection Notes

FD-4 marks F-Device support for four independent PROFIsafe networks, so this module suits a line with several separate safety segments that each need their own PROFIsafe connection to the safety CPU. A single-segment application only needs the FD-1 variant; an installation running outside 0...+60 degrees C needs the XC-rated version of this FD-4 module instead.

Technical Details

Short Description
ABB SM560-S-FD-4 safety processor module, SIL 3, F-Device for 4 PROFIsafe networks, IP20.
Protection Type
IP20
Catalog No
SM560-S-FD-4
Delivery Date (Days)
30 days
Model Number
SM560-S-FD-4
Tariff Code
853710
