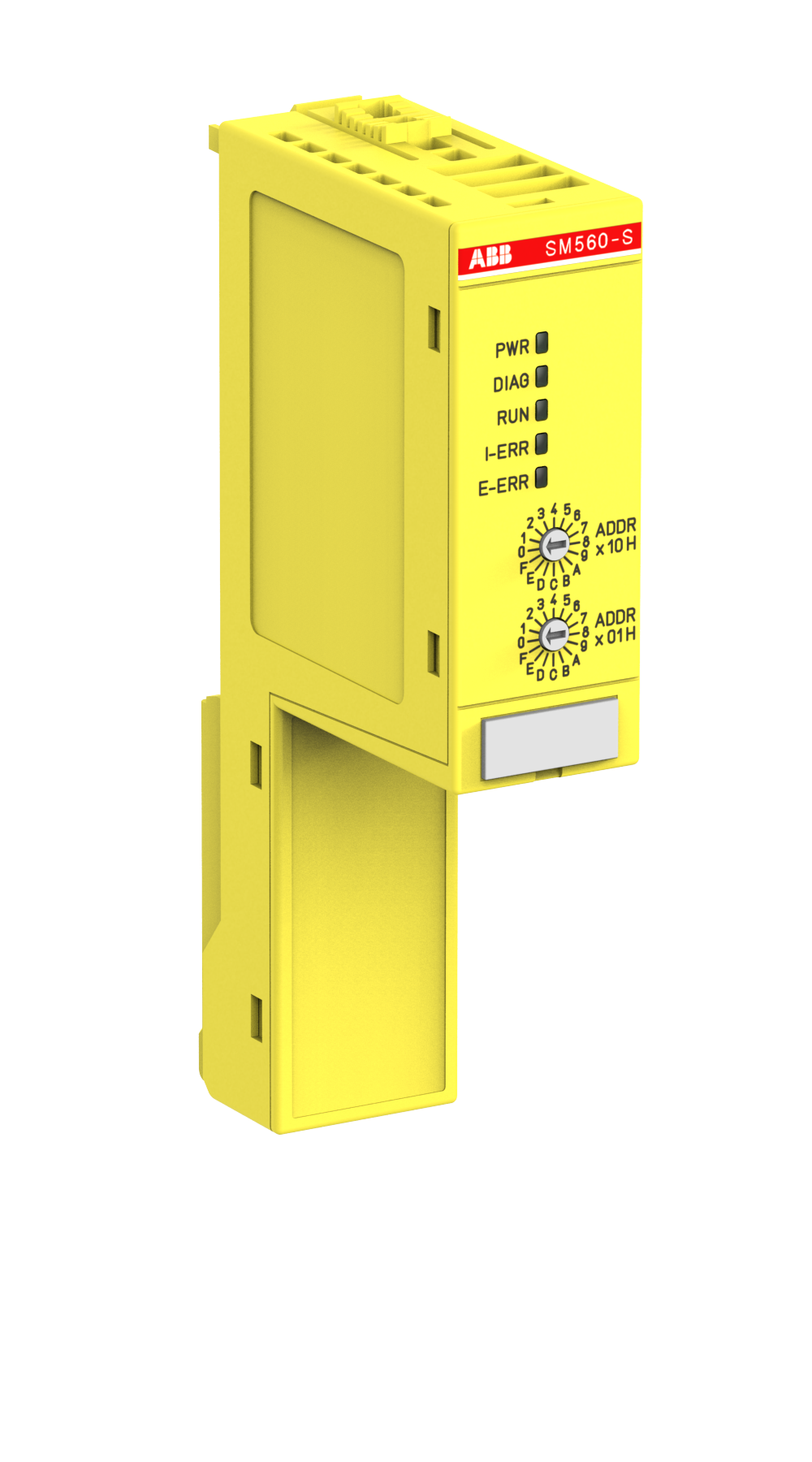

ABB 1SAP286000R0001 SM560-S-FD-1 SIL3 PROFIsafe F-Device Safety Processor Safety PLC

% $-1,204.63
ABB 1SAP286000R0001 SM560-S-FD-1 AC500-S safety processor, PROFIsafe F-Device
ABB 1SAP286000R0001 SM560-S-FD-1 AC500-S safety processor, PROFIsafe F-Device

ABB 1SAP286000R0001 SM560-S-FD-1 SIL3 PROFIsafe F-Device Safety Processor Safety PLC

Brand: ABB
Reference No: 1SAP286000R0001
Catalog No: SM560-S-FD-1
Series: CPUs
Tariff Code (HS): 853710
Communication: PROFIsafe (F-Device, 1 network)
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$1,204.63

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SAP286000R0001 (SM560-S-FD-1) is an AC500-S safety processor module rated for safety-related control up to SIL3, with built-in F-Device functionality for one PROFIsafe network. It carries 2300 kB of RAM user memory, a controller processing time of 0.00005 ms per instruction, and IP20 protection, weighing 0.087 kg net.

Technical Specifications

Order code 1SAP286000R0001
Type code SM560-S-FD-1
Brand ABB
Series AC500-S CPUs
EAN 4013614510212
Function Safety related module up to SIL 3 with F-Device functionality for 1 PROFIsafe network
Safety integrity level (SIL) up to SIL3
PROFIsafe networks (F-Device) 1
Memory size 2300 kB
Memory type (user data) RAM
Controller processing time 0.00005 ms
Number of digital configurable I/Os 0
Degree of protection IP20
Dimensions (L x H x W) 62 x 135 x 28 mm
Net weight 0.087 kg
Gross weight 0.12 kg

Selection Notes

SM560-S-FD-1 extends the base SM560-S with F-Device functionality for one PROFIsafe network, so it fits stations where the safety CPU itself must act as a PROFIsafe slave to a higher-level safety controller rather than only running local safety logic. The slightly larger 2300 kB memory leaves headroom for the added PROFIsafe stack alongside the safety program. Where no PROFIsafe network integration is needed, the plain SM560-S covers the same SIL3 function without that layer.

Technical Details

Short Description
AC500-S safety processor, up to SIL3, PROFIsafe F-Device (1 network), 2300 kB.
Mounting Type
AC500-S terminal base (safety CPU slot)
Protection Type
IP20
Catalog No
SM560-S-FD-1
Delivery Date (Days)
30 days
Model Number
SM560-S-FD-1
Tariff Code
853710
