ABB 1SAP284100R0001 DX581-S 8SDI 8SDO SIL3 24VDC Safety PLC I/O Module

% $-526.13

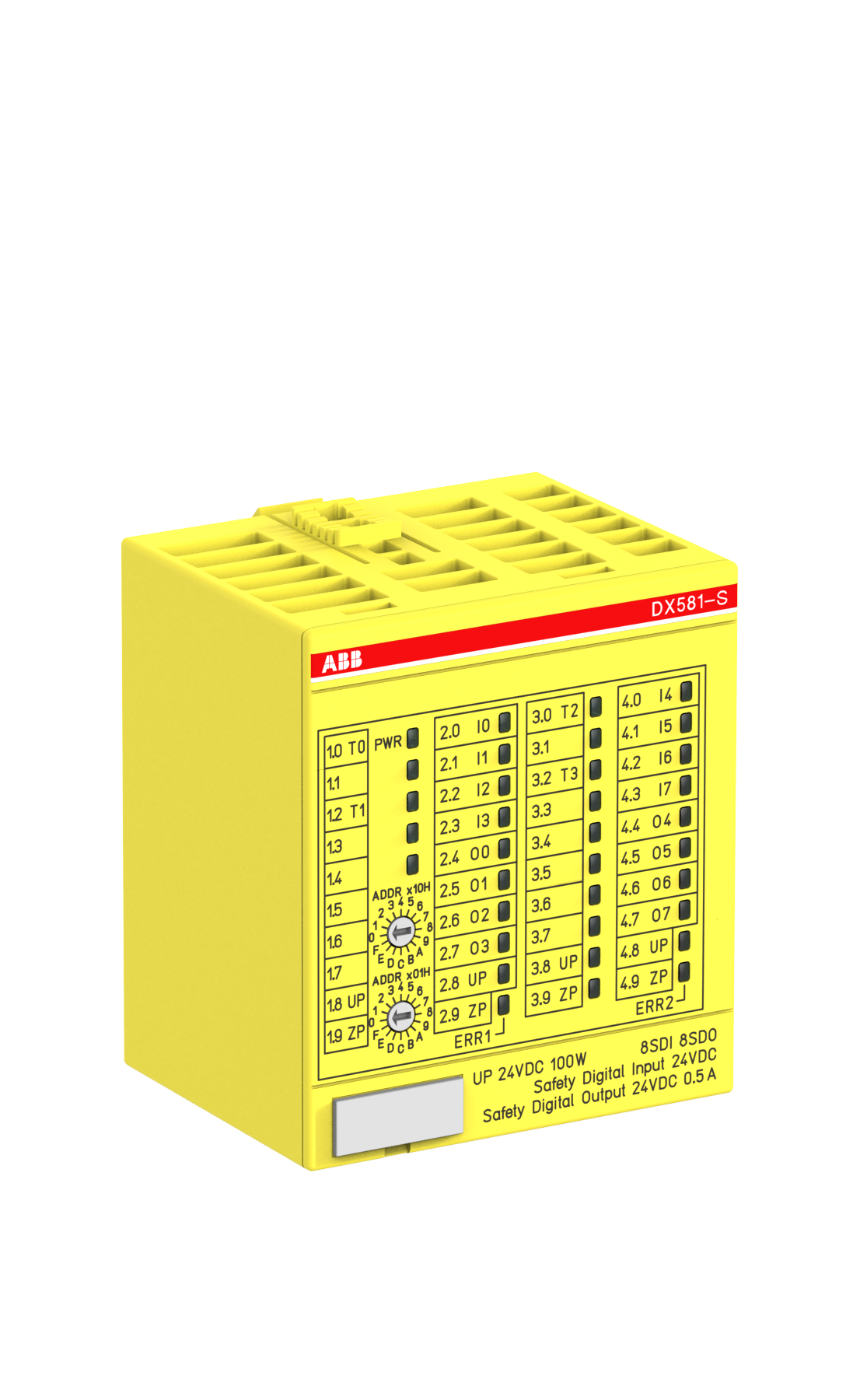

ABB 1SAP284100R0001 DX581-S safety digital I/O module, 8SDI 8SDO
ABB 1SAP284100R0001 DX581-S safety digital I/O module, 8SDI 8SDO

ABB 1SAP284100R0001 DX581-S 8SDI 8SDO SIL3 24VDC Safety PLC I/O Module

Brand: ABB
Reference No: 1SAP284100R0001
Catalog No: DX581-S
Series: S500 I/O modules
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$526.13

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SAP284100R0001 (DX581-S) is an S500-S safety digital input/output module combining 8 safety digital inputs (SIL2, or 4 at SIL3) with 8 safety digital outputs (SIL2/3) at 24 V DC, 0.5 A, wired 1-wire with 4 pulse outputs for line testing. Each input draws 7 mA and accepts 0-30 V with a 1-500 ms delay. Net weight is 0.13 kg.

Technical Specifications

Order code 1SAP284100R0001
Type code DX581-S
Brand ABB
Series S500 I/O modules (AC500-S)
EAN 4016779681803
Function 8 SDI (SIL2) / 4 SDI (SIL3), 8 SDO (SIL2/3), 24VDC, 1-wire, 4 pulse outputs
Digital inputs 8 (SIL2) / 4 (SIL3)
Digital outputs 8
Output type Transistor
Output voltage type DC
Output current 0.5 A
Output voltage range 20.4-28.8 V
Input current 7 mA
Maximum input voltage 0-30 V
Delay time 1-500 ms
Supply voltage 20.4-28.8 V DC
Safety integrity level (SIL) SIL2/SIL3
Degree of protection IP20
Dimensions (L x H x W) 62 x 76 x 67.5 mm
Net weight 0.13 kg
Gross weight 0.159 kg

Selection Notes

DX581-S combines safety inputs and outputs on one module, so it suits compact safety loops such as a guard-door interlock that both reads a switch and drives a contactor coil, instead of pairing two separate single-function modules. The 8 SDO transistor outputs are rated 0.5 A each, which covers small contactors and relay coils directly but not larger loads. Choose the DX581-S-XC variant instead when the cabinet needs the extended -30 to +70 C range.

Technical Details

Short Description
S500-S safety digital I/O module, 8SDI/4SDI SIL3, 8SDO 0.5A, 24VDC, 1-wire.
Mounting Type
AC500-S safety terminal base
Protection Type
IP20
Catalog No
DX581-S
Delivery Date (Days)
30 days
Model Number
DX581-S
Tariff Code
853710
