ABB 1SAP282000R0001 AI581-S SIL3 4AI 4-20mA 14-bit Safety PLC I/O Module

% $-560.63

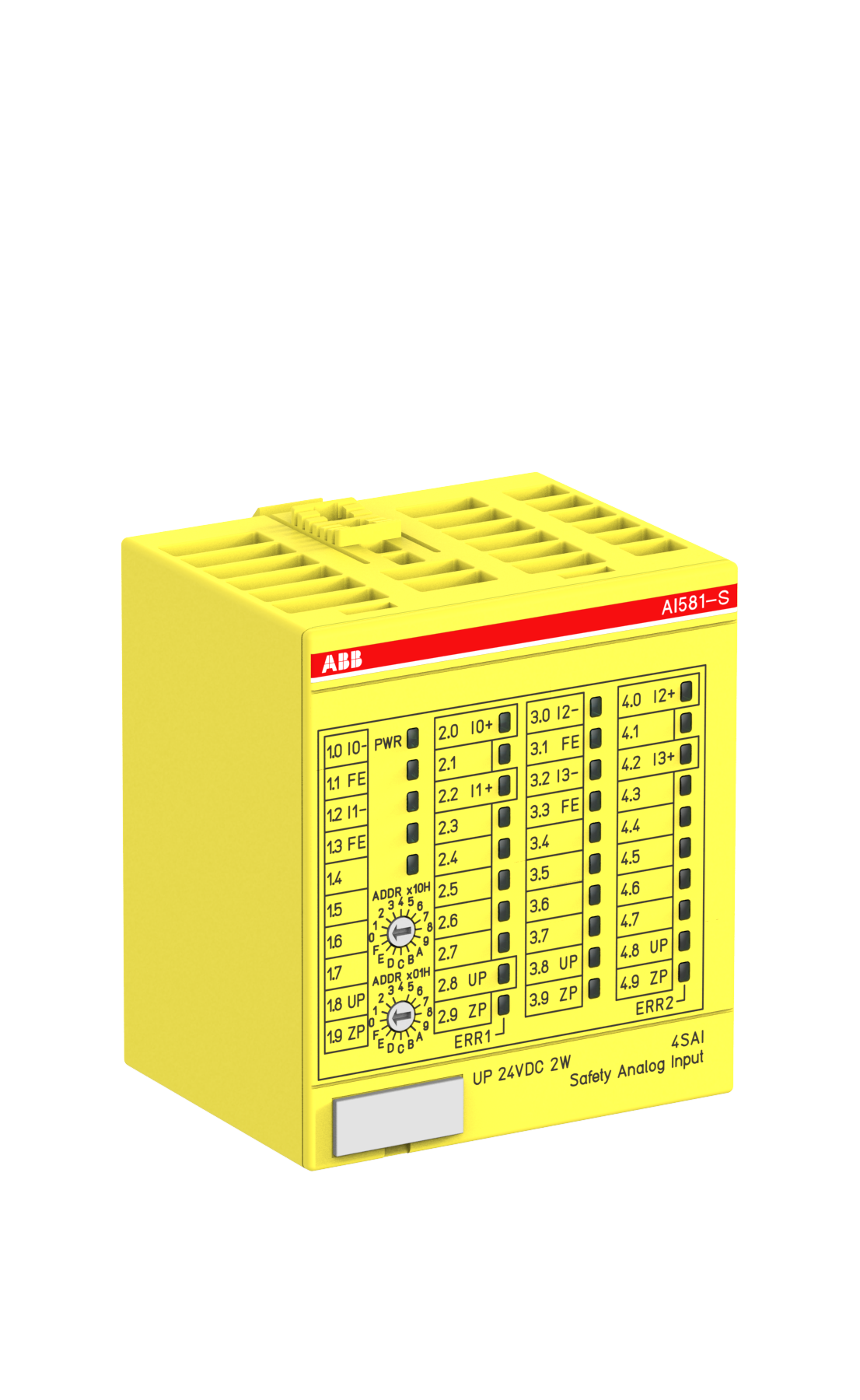

ABB 1SAP282000R0001 AI581-S safety analog input module, 4-20mA
ABB 1SAP282000R0001 AI581-S safety analog input module, 4-20mA

ABB 1SAP282000R0001 AI581-S SIL3 4AI 4-20mA 14-bit Safety PLC I/O Module

Brand: ABB
Reference No: 1SAP282000R0001
Catalog No: AI581-S
Series: S500 I/O modules
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$560.63

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SAP282000R0001 (AI581-S) is an S500-S safety analog input module with 4 channels rated to SIL2/SIL3, each accepting a 2-wire 4-20 mA signal at 14-bit resolution. It runs on a 24 V DC supply and carries IP20 housing protection, fitting onto an AC500-S safety terminal base. Net weight is 0.125 kg.

Technical Specifications

Order code 1SAP282000R0001
Type code AI581-S
Brand ABB
Series S500 I/O modules (AC500-S)
EAN 4016779681780
Function Safety, 4SAI, 4 SIL2/SIL3, 4-20mA input, 14-bit, 24VDC, 2-wire
Analog inputs 4
Resolution 14-bit
Safety integrity level (SIL) SIL2/SIL3
Degree of protection IP20 (housing)
Dimensions (L x H x W) 62 x 76 x 67.5 mm
Net weight 0.125 kg
Gross weight 0.155 kg

Selection Notes

AI581-S brings 4-20 mA analog sensing into a SIL2/SIL3 safety loop, so it fits applications such as pressure or level transmitters feeding an emergency shutdown function rather than standard process monitoring. The 14-bit resolution on each of the 4 channels is fixed, so the only real choice against its sibling is environment: pick the AI581-S-XC variant instead when the installation needs the extended -30 to +70 C operating range.

Technical Details

Short Description
S500-S safety analog input module, 4x 4-20mA, SIL2/SIL3, 14-bit, 24VDC, IP20.
Mounting Type
AC500-S safety terminal base
Protection Type
IP20 (housing)
Catalog No
AI581-S
Delivery Date (Days)
30 days
Model Number
AI581-S
Tariff Code
853710
