ABB 1SAP250500R0001 AC522 4-Channel Configurable AI/AO 13-bit PLC I/O Module

% $-431.25
ABB 1SAP250500R0001 AC522 PLC I/O Module - 4-Channel Configurable AI/AO
ABB 1SAP250500R0001 AC522 PLC I/O Module - 4-Channel Configurable AI/AO

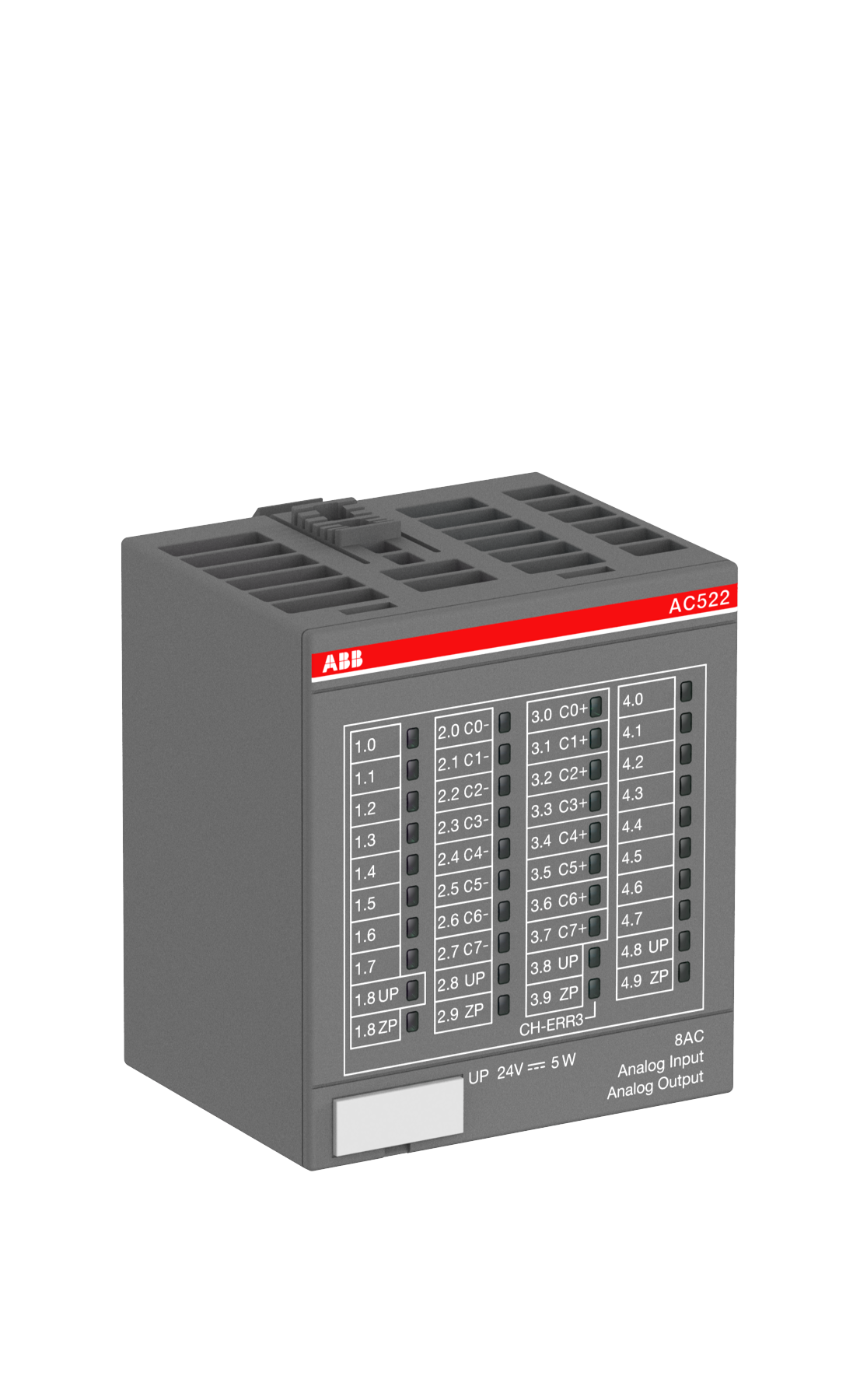

ABB 1SAP250500R0001 AC522 4-Channel Configurable AI/AO 13-bit PLC I/O Module

Brand: ABB
Reference No: 1SAP250500R0001
Catalog No: AC522
Series: S500 I/O modules
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$431.25

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SAP250500R0001 (AC522) is an S500 analog input/output module for the AC500 PLC platform, with 4 configurable channels supporting AI U/I/RTD/DI or AO U/I and 4 further channels supporting AI U/I/RTD or AO U, giving up to 8 configurable AI/AO points at 13-bit resolution. It uses a 1-wire connection and carries IP20 housing protection.

Technical Specifications

Order code 1SAP250500R0001
Type code AC522
Brand ABB
Series S500 I/O modules
EAN 4013614555114
Configuration 4 channels: AI U, I, RTD, DI or AO U, I; 4 channels: AI U, I, RTD or AO U
Number of Analog Configurable I/Os 8
Input Signal U, I, RTD
Output Signal U, I
Resolution Analog Input 13 bit, Analog Output 13 bit
Degree of Protection Housing IP20
Net Weight 0.128 kg
Gross Weight 0.152 kg
Dimensions (D x H x W) 62 x 76 x 67.5 mm

Selection Notes

The AC522's 4+4 configurable channel layout (8 total AI/AO points) at 13-bit resolution suits applications needing a mix of analog sensing and control on one module rather than dedicated single-type I/O cards. Each of the first 4 channels accepts AI voltage, current, RTD or digital input, or AO voltage/current output, while the second group of 4 omits the digital-input option — check which channels the control program assigns before wiring sensor types that need the full AI U/I/RTD/DI set. The 1-wire connection and IP20 housing follow standard S500 I/O module practice, which requires a TU5xx terminal unit alongside it on the DIN rail.

Technical Details

Short Description
ABB AC522 S500 analog I/O module, 4+4 configurable AI/AO channels, 13-bit, IP20.
Protection Type
IP20
Catalog No
AC522
Delivery Date (Days)
30 days
Model Number
AC522
Tariff Code
853710
