ABB 1SAP245200R0001 DX522 8 DI 24V DC 8 DO Relay 230V AC 3A S500 PLC I/O Module

% $-192.63
ABB 1SAP245200R0001 DX522 S500 PLC I/O module - 8 DI 24V DC, 8 DO relay 230V AC
ABB 1SAP245200R0001 DX522 S500 PLC I/O module - 8 DI 24V DC, 8 DO relay 230V AC

ABB 1SAP245200R0001 DX522 8 DI 24V DC 8 DO Relay 230V AC 3A S500 PLC I/O Module

Brand: ABB
Reference No: 1SAP245200R0001
Catalog No: DX522
Series: S500 I/O modules
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$192.63

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

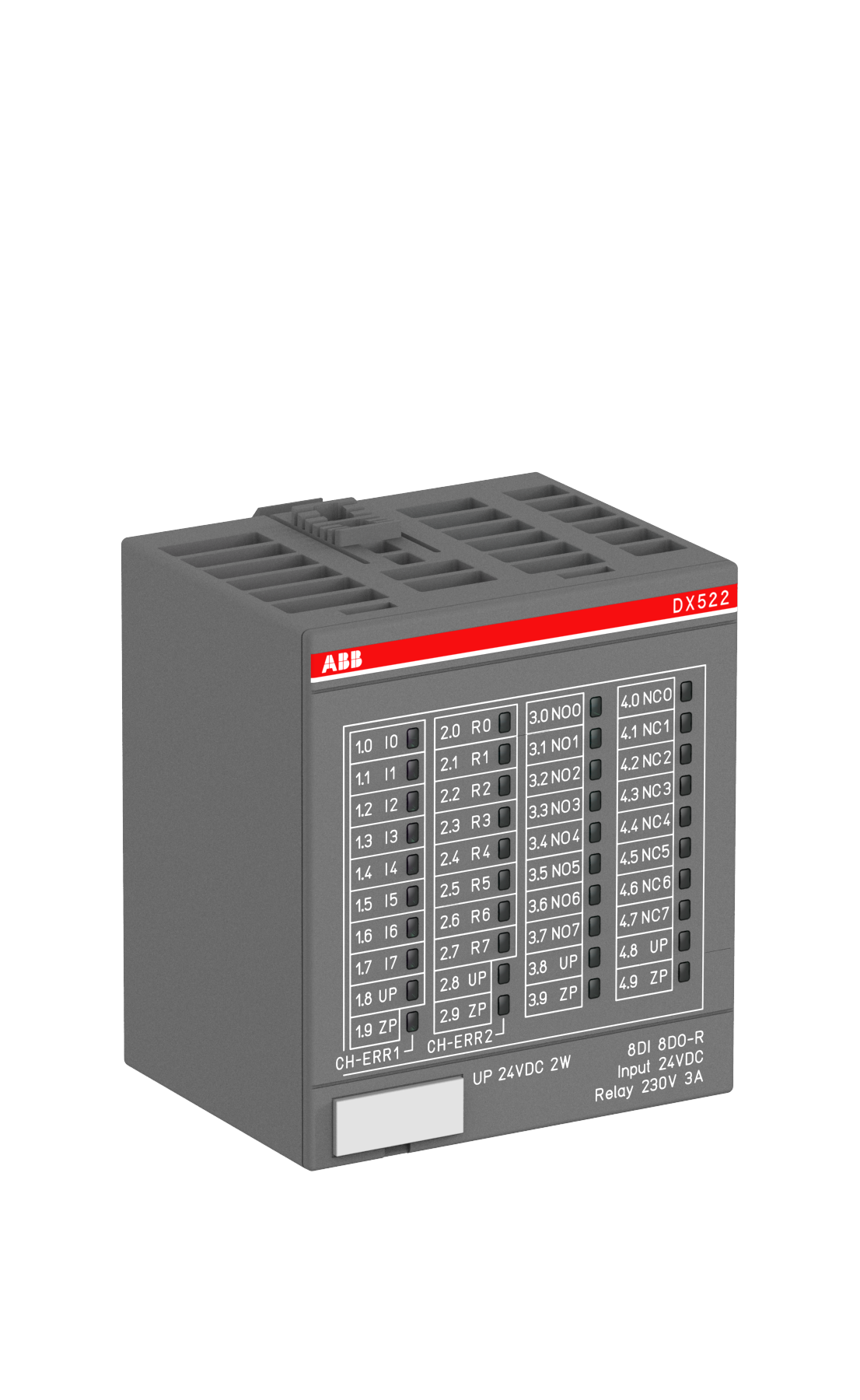

The ABB 1SAP245200R0001 (DX522) is an S500 digital input/output module for the AC500 PLC platform, combining 8 digital inputs rated 24V DC with 8 relay digital outputs rated 230V AC at 3A. It mounts on the system DIN-rail and connects via 2- or 3-wire sensor wiring, giving a compact way to add mixed digital I/O to an existing AC500 CPU without a separate remote station.

Technical Specifications

Order code 1SAP245200R0001
Type code DX522
Brand ABB
Series S500 I/O modules (AC500)
EAN 4016779649186
Digital Inputs 8
Digital Outputs 8
Input Voltage Type DC
Input Current 5 mA
Maximum Input Voltage 0-30 V
Output Type Relay
Output Voltage Type AC
Output Current 3 A
Output Voltage Maximum 195.5-276 V
Delay Time 0.1-32 ms
Supply Voltage 20.4-28.8 V DC
Degree of Protection IP20
Net Weight 0.177 kg
Dimensions (L x H x W) 62 x 76 x 67.5 mm

Selection Notes

DX522 provides 8 relay outputs rather than 4, so it suits applications switching eight independent 230V AC loads directly from a 24V DC-input field without an extra relay bank. It shares its 67.5 mm module width and screw-style wiring with the lower-output-count S500 I/O module that accepts 115-230V AC inputs instead of 24V DC, so swapping between the two only changes the input stage. Choose DX522 specifically when the field inputs are 24V DC sensors and the number of loads to switch exceeds four.

Technical Details

Short Description
ABB DX522 S500 digital I/O module: 8 DI 24V DC inputs, 8 relay DO outputs 230V AC 3A, IP20, for AC500 PLC expansion.
Protection Type
IP20
Catalog No
DX522
Delivery Date (Days)
30 days
Model Number
DX522
Tariff Code
853710
