ABB 1SAP240700R0001 DO524 32DO 24VDC 0.5A 1-Wire AC500 S500 PLC I/O Module

% $-244.38

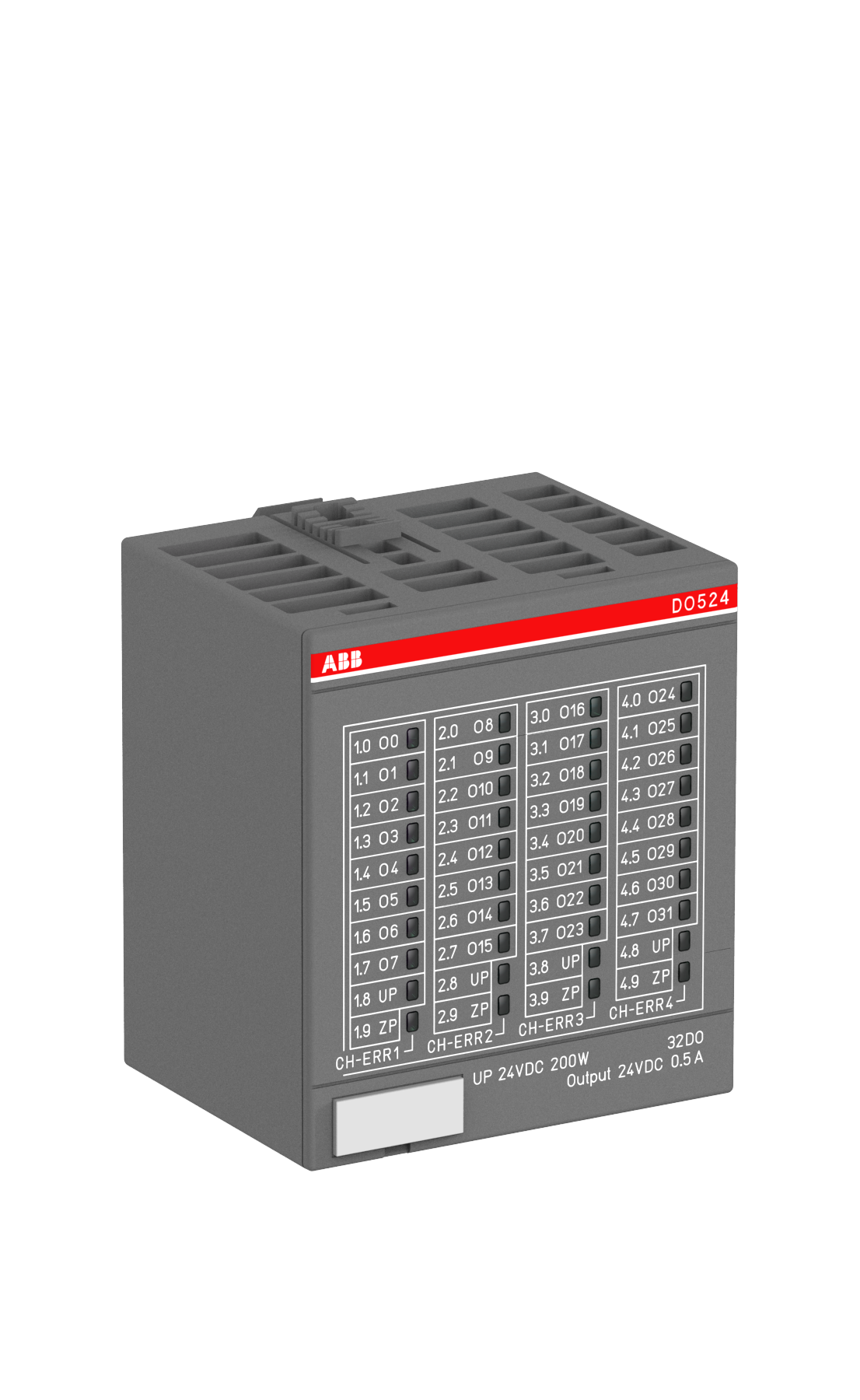

ABB 1SAP240700R0001 DO524 PLC I/O Module - 32DO Transistor 24V DC 0.5A
ABB 1SAP240700R0001 DO524 PLC I/O Module - 32DO Transistor 24V DC 0.5A

ABB 1SAP240700R0001 DO524 32DO 24VDC 0.5A 1-Wire AC500 S500 PLC I/O Module

Brand: ABB
Reference No: 1SAP240700R0001
Catalog No: DO524
Series: S500 I/O modules
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$244.38

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SAP240700R0001 (DO524) is an AC500 S500 digital output module with 32 transistor DO channels at 24 V DC 0.5 A wired one-wire per point. The high channel density drives many 24 V DC loads such as indicator lamps, solenoid valves or small relays from a single module without stacking several smaller output cards.

Technical Specifications

Order code 1SAP240700R0001
Type code DO524
Brand ABB
Series AC500 S500 I/O Modules
EAN 4013614482717
Digital Outputs 32, transistor, 24 V DC 0.5 A
Output Voltage Range 20.4-28.8 V
Supply Voltage 20.4-28.8 V DC
Degree of Protection IP20
Net Weight 0.106 kg
Dimensions (L x H x W) 62 x 76 x 67.5 mm
Gross Weight 0.13 kg
Wiring 1-wire

Selection Notes

DO524's 32 transistor DO channels at 0.5 A each suit driving many small 24 V DC loads, such as indicator lamps or PLC-to-PLC signaling, from one module rather than four 8-channel ones. Move to the 2 A sibling variant when individual loads exceed 0.5 A, since this module's per-channel rating will not cover them.

Technical Details

Short Description
ABB DO524 AC500 S500 digital output module: 32 transistor DO 24V DC 0.5A, one-wire, IP20.
Protection Type
IP20
Catalog No
DO524
Delivery Date (Days)
30 days
Model Number
DO524
Tariff Code
853710
