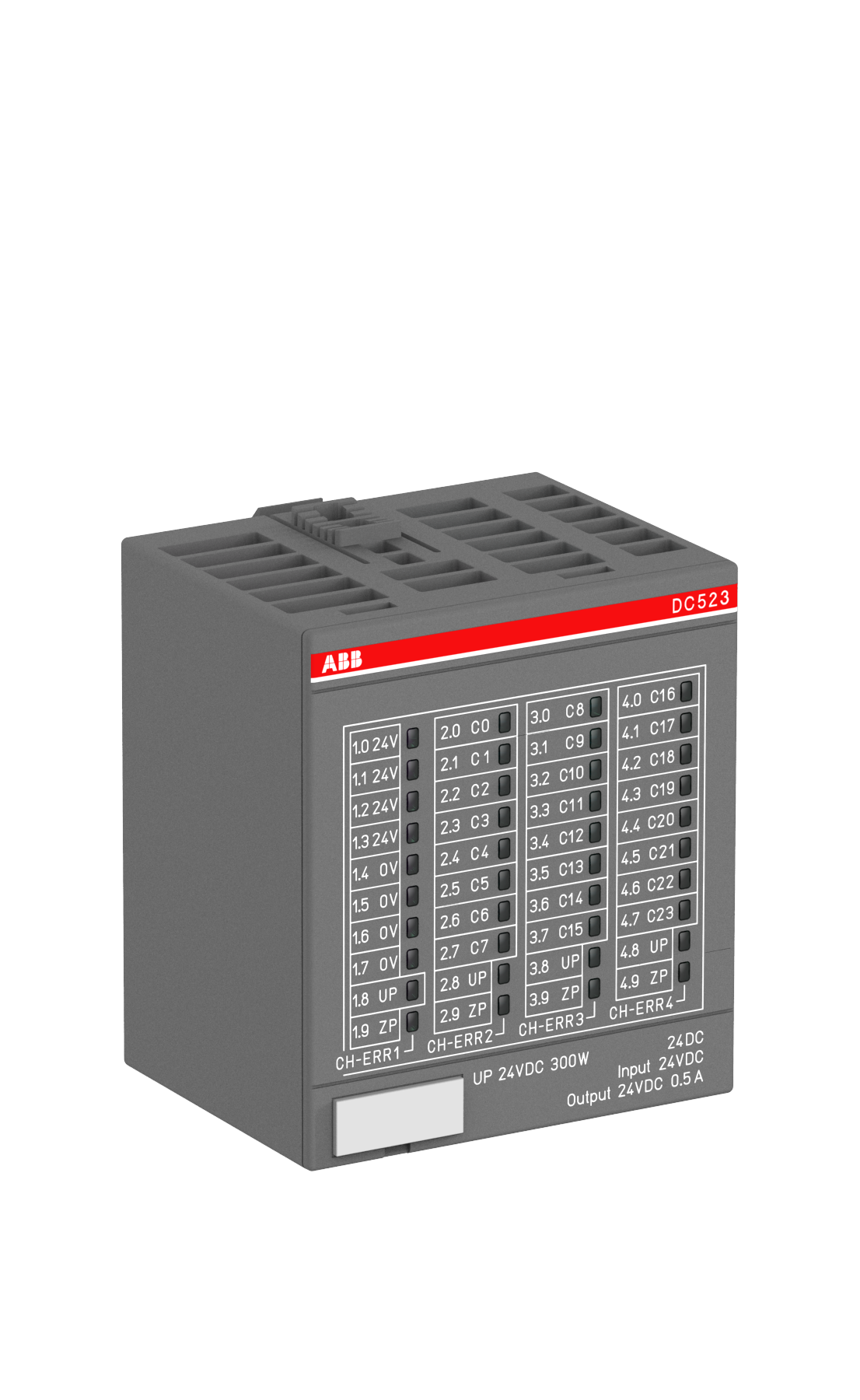

ABB 1SAP240500R0001 DC523 24 Configurable DIO 24VDC 0.5A PLC I/O Module

% $-230.00
ABB 1SAP240500R0001 DC523 PLC I/O Module - 24 Configurable DI/DO 24V DC
ABB 1SAP240500R0001 DC523 PLC I/O Module - 24 Configurable DI/DO 24V DC

ABB 1SAP240500R0001 DC523 24 Configurable DIO 24VDC 0.5A PLC I/O Module

Brand: ABB
Reference No: 1SAP240500R0001
Catalog No: DC523
Series: S500 I/O modules
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$230.00

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SAP240500R0001 (DC523) is an AC500 S500 digital I/O module with 24 channels configurable as inputs or outputs at 24 V DC 0.5 A, plus 4 auxiliary 0 V and 4 auxiliary 24 V DC terminals for powering field sensors directly from the module. With more configurable channels than the smaller sibling, it suits stations needing a higher discrete I/O count on one module.

Technical Specifications

Order code 1SAP240500R0001
Type code DC523
Brand ABB
Series AC500 S500 I/O Modules
EAN 4016779655989
Configurable Digital I/O 24, 24 V DC 0.5 A
Auxiliary Terminals 4 at 0 V, 4 at 24 V DC
Input Current 5 mA
Maximum Input Voltage 0-30 V
Output Voltage Range 20.4-28.8 V
Supply Voltage 20.4-28.8 V DC
Degree of Protection IP20
Ambient Temperature 0 to +60 degrees C operation, -40 to +70 degrees C storage
Net Weight 0.115 kg
Dimensions (L x H x W) 62 x 76 x 67.5 mm
Gross Weight 0.139 kg
Wiring 2-3 wire

Selection Notes

With 24 configurable DI/DO against the smaller sibling's 16, DC523 covers more discrete points per module when the station still needs the terminals' 4+4 auxiliary 0 V/24 V supply rather than a separate feed. Drop to the smaller variant instead when 16 channels are enough and rack space matters less than cost per channel.

Technical Details

Short Description
ABB DC523 AC500 S500 digital I/O module: 24 configurable DI/DO 24V DC 0.5A, 4 aux 0V, 4 aux 24V terminals, IP20.
Protection Type
IP20
Catalog No
DC523
Delivery Date (Days)
30 days
Model Number
DC523
Tariff Code
853710
