ABB 1SAP230900R0000 DO562 16DO Transistor 24VDC 0.5A eCo PLC I/O Module

% $-86.25
ABB 1SAP230900R0000 DO562 eCo PLC I/O Module - 16DO Transistor 24V DC 0.5A
ABB 1SAP230900R0000 DO562 eCo PLC I/O Module - 16DO Transistor 24V DC 0.5A

ABB 1SAP230900R0000 DO562 16DO Transistor 24VDC 0.5A eCo PLC I/O Module

Brand: ABB
Reference No: 1SAP230900R0000
Catalog No: DO562
Series: S500-eCo I/O modules
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$86.25

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

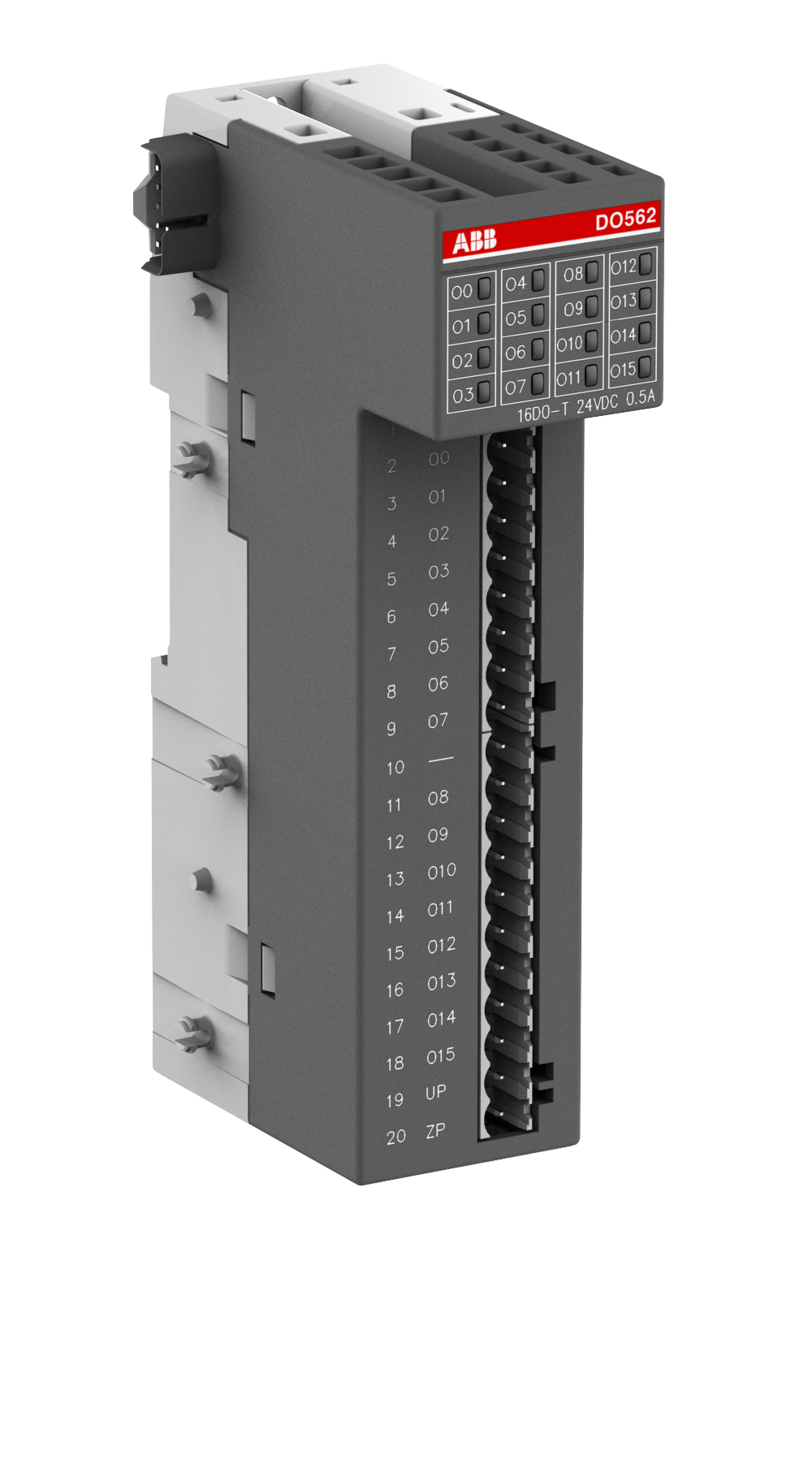

The ABB 1SAP230900R0000 (DO562) is an AC500-eCo digital output module with 16 transistor DO channels at 24 V DC 0.5 A on a pluggable connector. Doubling the channel count of the smaller eCo output module, it switches more 24 V DC loads per module while keeping the same 0.5 A per-channel rating.

Technical Specifications

Order code 1SAP230900R0000
Type code DO562
Brand ABB
Series AC500-eCo S500-eCo I/O Modules
EAN 4016779927581
Digital Outputs 16, transistor, 24 V DC 0.5 A
Output Voltage Range 20.4-28.8 V
Connection Type Pluggable
Supply Voltage 20.4-28.8 V DC
Degree of Protection IP20
Net Weight 0.16 kg
Dimensions (L x H x W) 75 x 135 x 34 mm
Gross Weight 0.219 kg
Wiring 1-wire

Selection Notes

DO562 doubles DO561's channel count to 16 while keeping the same 0.5 A transistor rating per point, covering more small 24 V DC loads on one eCo module. Drop to the 8-channel sibling variant instead when the station needs fewer output points and the extra channels would go unused.

Technical Details

Short Description
ABB DO562 AC500-eCo digital output module: 16 transistor DO 24V DC 0.5A, pluggable connector, IP20.
Protection Type
IP20
Catalog No
DO562
Delivery Date (Days)
30 days
Model Number
DO562
Tariff Code
853710
