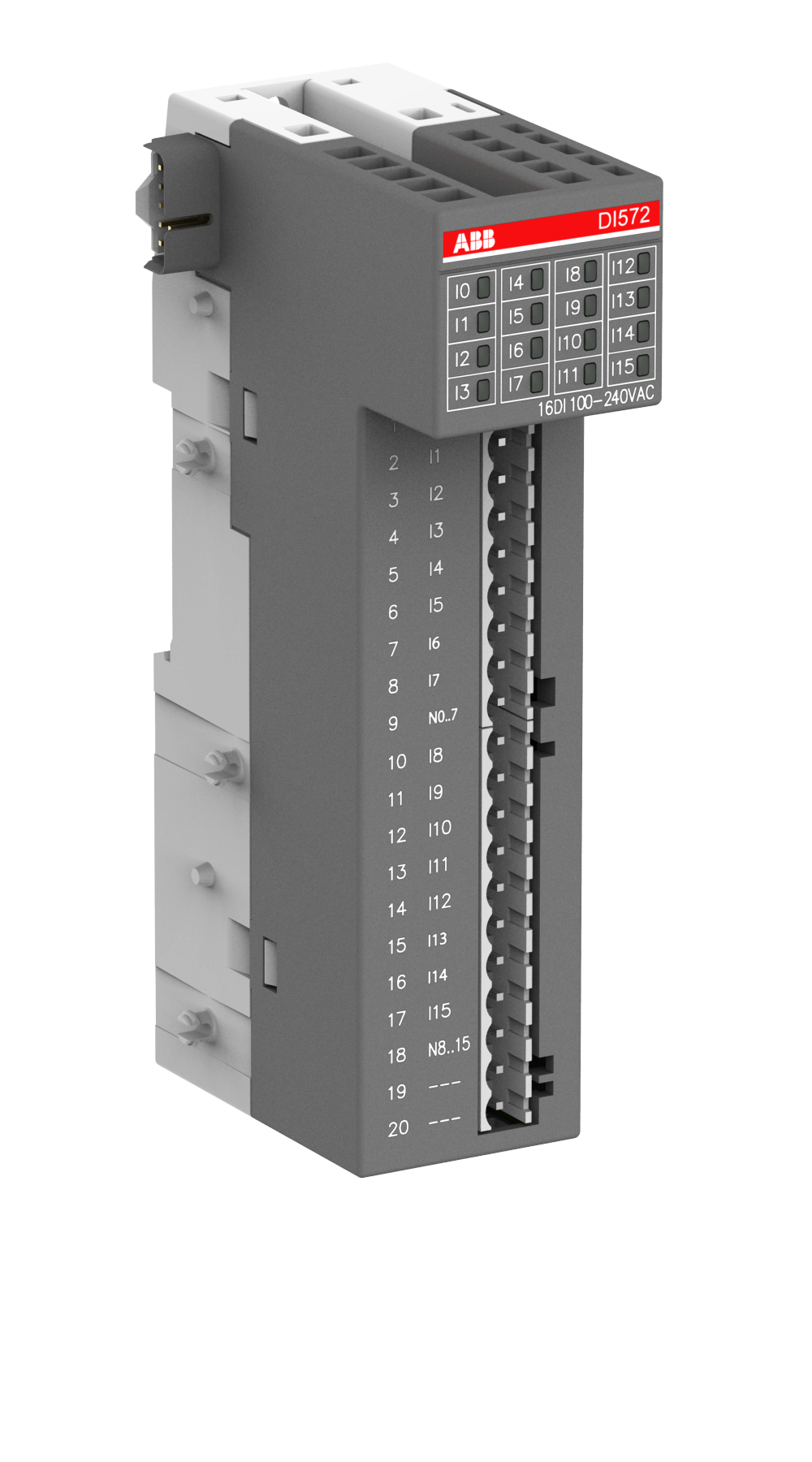

ABB 1SAP230500R0000 DI572 16DI 100-240VAC eCo PLC I/O Module

% $-132.25
ABB 1SAP230500R0000 DI572 eCo PLC I/O Module - 16DI 100-240V AC
ABB 1SAP230500R0000 DI572 eCo PLC I/O Module - 16DI 100-240V AC

ABB 1SAP230500R0000 DI572 16DI 100-240VAC eCo PLC I/O Module

Brand: ABB
Reference No: 1SAP230500R0000
Catalog No: DI572
Series: S500-eCo I/O modules
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$132.25

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SAP230500R0000 (DI572) is an AC500-eCo digital input module with 16 DI channels rated 100-240 V AC on a pluggable connector. With twice the channel count of the 8-point AC input module, it reads more mains-level signals per module while keeping the same direct 100-240 V AC input range.

Technical Specifications

Order code 1SAP230500R0000
Type code DI572
Brand ABB
Series AC500-eCo S500-eCo I/O Modules
EAN 4013614501449
Digital Inputs 16, 100-240 V AC
Delay Time 24 ms
Input Current 8 mA
Maximum Input Voltage 0-264 V
Connection Type Pluggable
Degree of Protection IP20
Net Weight 0.135 kg
Dimensions (L x H x W) 75 x 135 x 34 mm
Gross Weight 0.222 kg
Wiring 1-wire

Selection Notes

DI572 covers 16 channels at the same 100-240 V AC level as its 8-channel sibling, so stations with more mains-level discrete sensors avoid splitting them across two modules. Use the smaller sibling variant instead when only a handful of AC inputs are needed and module count should stay low.

Technical Details

Short Description
ABB DI572 AC500-eCo digital input module: 16 DI 100-240V AC, pluggable connector, IP20.
Protection Type
IP20
Catalog No
DI572
Delivery Date (Days)
30 days
Model Number
DI572
Tariff Code
853710
