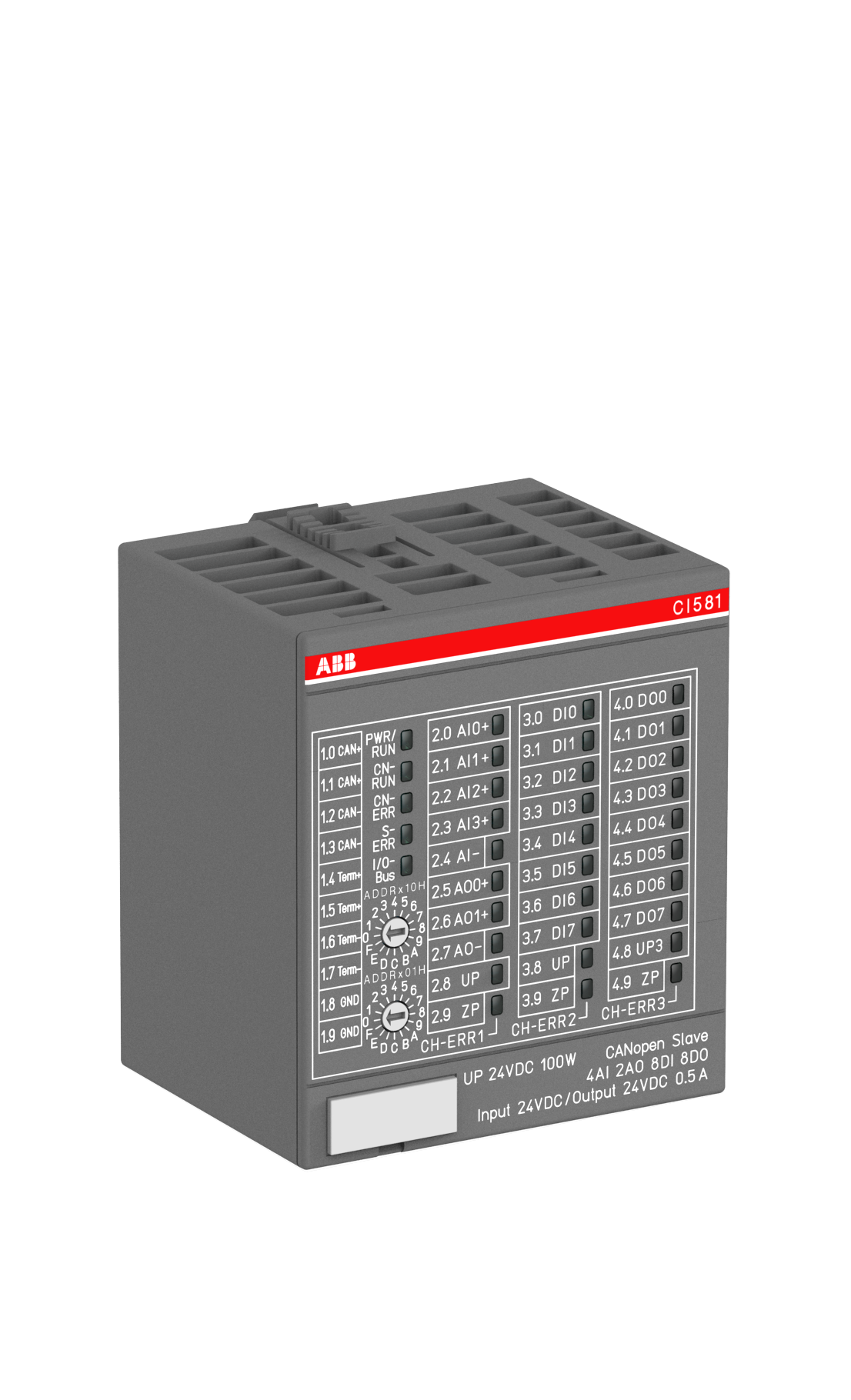

ABB 1SAP228100R0001 CI581-CN CANopen Slave 4AI 2AO 8DI 8DO Remote I/O Module

% $-460.00
ABB 1SAP228100R0001 CI581-CN CANopen Remote I/O Module - 4AI 2AO 8DI 8DO
ABB 1SAP228100R0001 CI581-CN CANopen Remote I/O Module - 4AI 2AO 8DI 8DO

ABB 1SAP228100R0001 CI581-CN CANopen Slave 4AI 2AO 8DI 8DO Remote I/O Module

Brand: ABB
Reference No: 1SAP228100R0001
Catalog No: CI581-CN
Series: Communication interface modules
Tariff Code (HS): 853710
Communication: CANopen slave
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$460.00

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SAP228100R0001 (CI581-CN) is a CANopen slave interface module for the AC500 S500 I/O system, combining 4 analog inputs (U, I, RTD), 2 analog outputs (U, I), 8 digital inputs and 8 digital outputs rated 24 V DC 0.5 A in one module. The station is extendable by up to 10 additional S500 I/O modules on the same CANopen node, keeping mixed signal types on a single bus address.

Technical Specifications

Order code 1SAP228100R0001
Type code CI581-CN
Brand ABB
Series AC500 S500 Communication Interface Modules
EAN 4016779866262
Protocol CANopen slave
Analog Inputs 4 (U, I, RTD)
Analog Outputs 2 (U, I)
Digital Inputs 8, 24 V DC
Digital Outputs 8, 24 V DC 0.5 A
Input Current 5 mA
Output Voltage Range 20.4-28.8 V DC
Supply Voltage 20.4-28.8 V DC
Degree of Protection IP20
Net Weight 0.137 kg
Dimensions (L x H x W) 62 x 76 x 67.5 mm
Gross Weight 0.161 kg
Extendable By up to 10 S500 I/O modules

Selection Notes

CI581-CN puts mixed analog and digital I/O on one CANopen address: 4 AI plus 2 AO handle sensor and setpoint signals while the 8 DI/8 DO block covers switching duties, so a station with both signal types needs only one node instead of two. Pick the all-digital sibling variant instead when the application has no analog channels and needs extra configurable digital points in their place.

Technical Details

Short Description
ABB CI581-CN CANopen slave interface module: 4 AI, 2 AO, 8 DI, 8 DO 24V DC, extendable by up to 10 S500 I/O modules.
Protection Type
IP20
Catalog No
CI581-CN
Delivery Date (Days)
30 days
Model Number
CI581-CN
Tariff Code
853710
