ABB 1SAP224200R0001 CI542-DP PROFIBUS 8DI 8DO 8 Configurable DIO Remote I/O Module

% $-324.88
ABB 1SAP224200R0001 CI542-DP PROFIBUS S500 Remote I/O Module
ABB 1SAP224200R0001 CI542-DP PROFIBUS S500 Remote I/O Module

ABB 1SAP224200R0001 CI542-DP PROFIBUS 8DI 8DO 8 Configurable DIO Remote I/O Module

Brand: ABB
Reference No: 1SAP224200R0001
Catalog No: CI542-DP
Series: Communication interface modules
Tariff Code (HS): 853710
Communication: PROFIBUS DP slave, RS-485
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$324.88

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

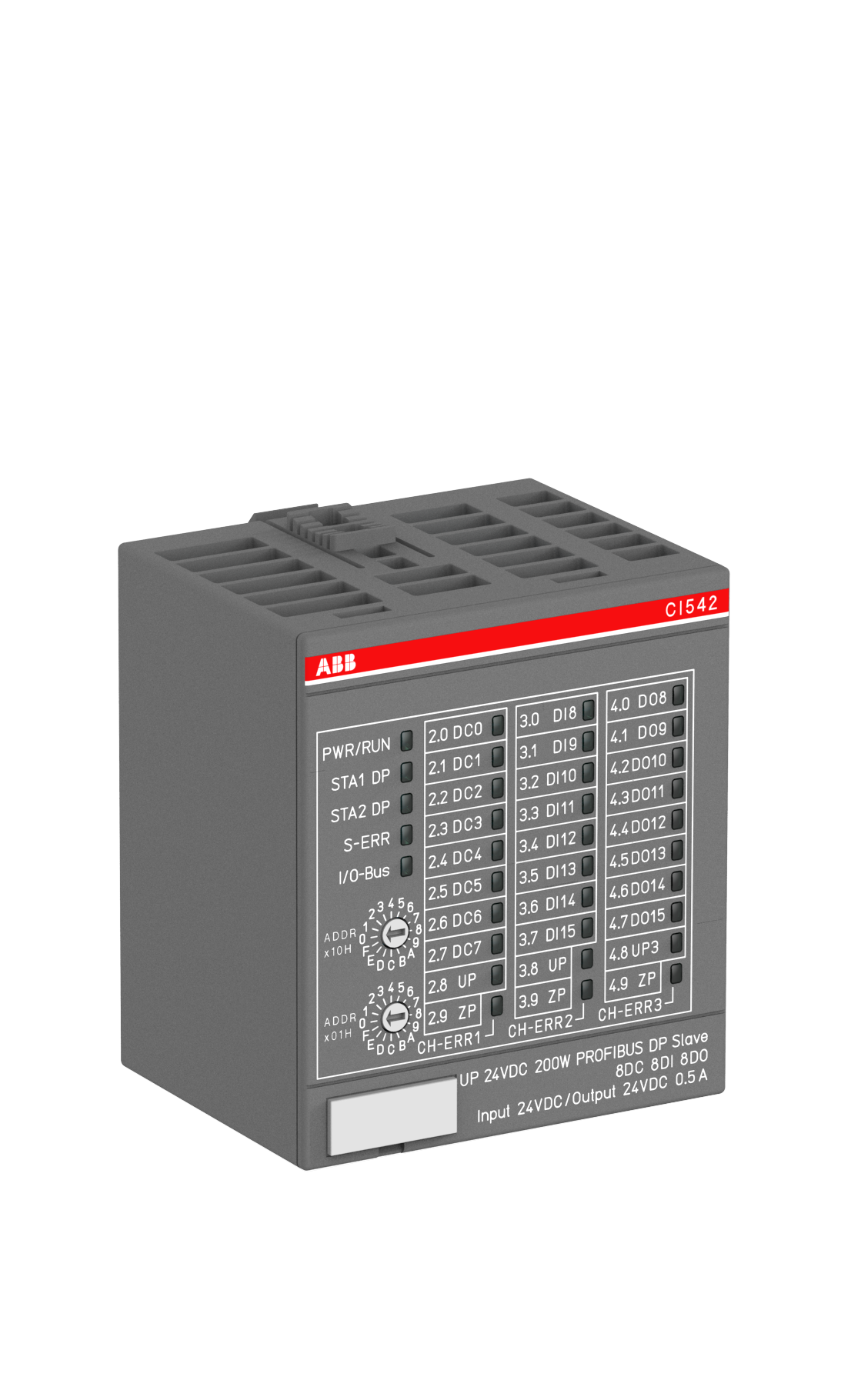

ABB's 1SAP224200R0001 (CI542-DP) is the digital-only PROFIBUS slave interface module in the S500 range, connecting over RS-485 and carrying 8 digital inputs, 8 digital outputs, and 8 configurable DI/DO points with no onboard analog channels. It chains with up to 10 additional S500 I/O modules, draws a 20.4-28.8 V DC supply, and is rated IP20.

Technical Specifications

Order code 1SAP224200R0001
Type code CI542-DP
Brand ABB
Series Communication interface modules
EAN 4016779866255
Function PROFIBUS slave. 8 DI: 24VDC. 8 DO: 24VDC 0.5A. 8 configurable DI/DO: 24VDC 0.5A
Hardware Interface RS-485 (PROFIBUS DP slave)
Extendable With Up to 10 additional S500 I/O modules
Digital Inputs 8
Digital Outputs 8
Digital Configurable I/Os 8
Input Voltage Type DC
Input Voltage (Uin) 24 V DC
Input Current 5 mA
Input Delay Time 0.1 - 32 ms
Output Type Transistor
Output Voltage Type DC
Output Current 0.5 A
Output Voltage Range 20.4 - 28.8 V
Degree of Protection IP20
Supply Voltage 20.4 - 28.8 V DC
Net Weight 0.13 kg
Gross Weight 0.154 kg
Dimensions (L x H x W) 62 x 76 x 67.5 mm

Selection Notes

CI542-DP is the digital-only PROFIBUS version of this head-module family: 8 fixed DI, 8 fixed DO, and 8 configurable DI/DO over the RS-485 PROFIBUS port, with no onboard analog channels. It is the module to specify for a purely digital PROFIBUS DP station; where an analog signal needs to originate at the head module, the AI/AO-equipped PROFIBUS variant in this family handles that instead.

Technical Details

Short Description
ABB CI542-DP PROFIBUS interface module, 8 DI, 8 DO, 8 configurable DI/DO, RS-485, IP20.
Mounting Type
DIN-Rail module
Protection Type
IP20
Catalog No
CI542-DP
Delivery Date (Days)
30 days
Model Number
CI542-DP
Tariff Code
853710
