ABB 1SAP224100R0001 CI541-DP PROFIBUS 4AI 2AO 8DI 8DO Remote I/O Module

% $-460.00
ABB 1SAP224100R0001 CI541-DP PROFIBUS S500 Remote I/O Module
ABB 1SAP224100R0001 CI541-DP PROFIBUS S500 Remote I/O Module

ABB 1SAP224100R0001 CI541-DP PROFIBUS 4AI 2AO 8DI 8DO Remote I/O Module

Brand: ABB
Reference No: 1SAP224100R0001
Catalog No: CI541-DP
Series: Communication interface modules
Tariff Code (HS): 853710
Communication: PROFIBUS DP slave, RS-485
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$460.00

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

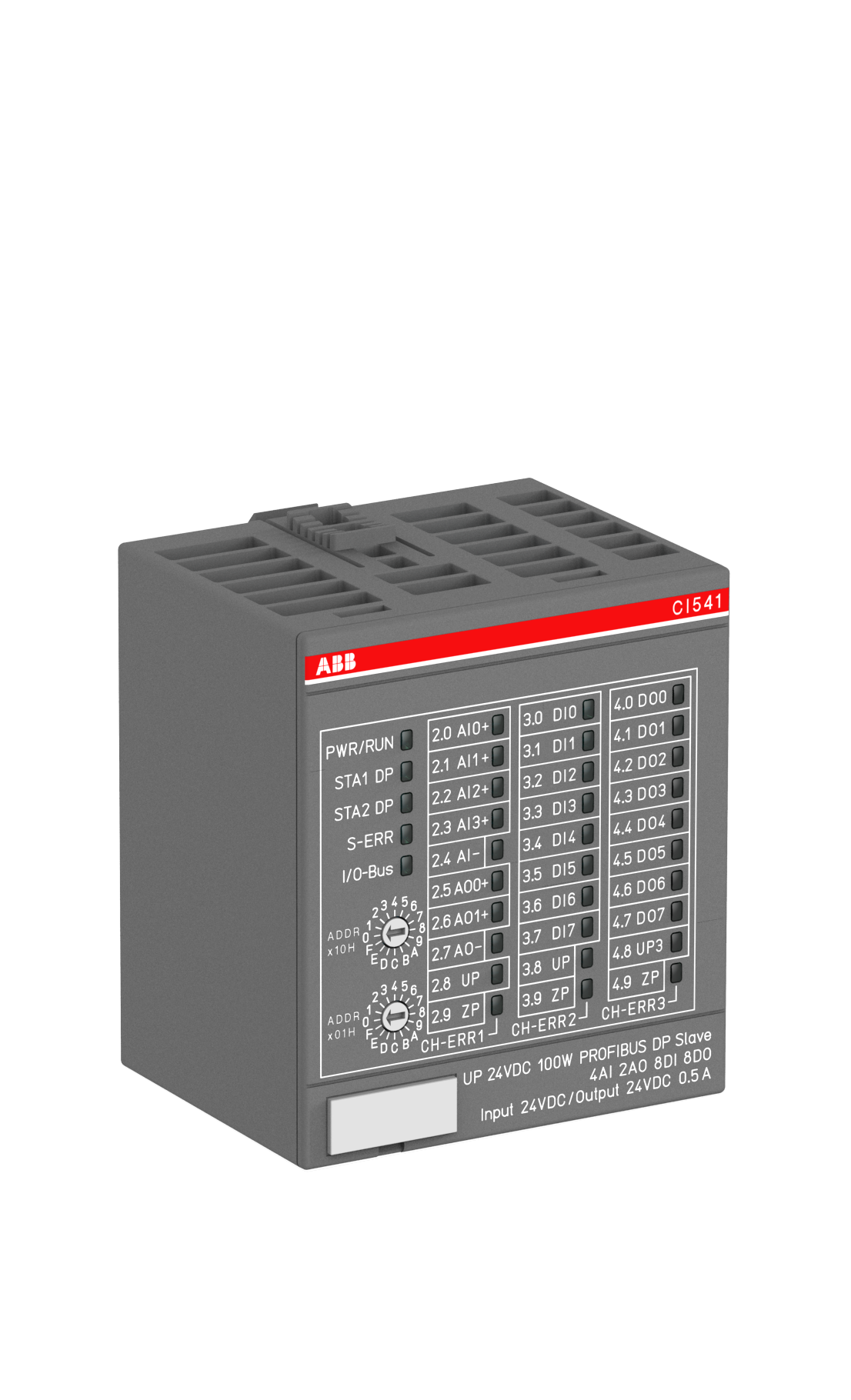

The ABB 1SAP224100R0001 (CI541-DP) is a PROFIBUS slave interface module for the S500 I/O system, connecting over an RS-485 port and carrying 4 analog inputs, 2 analog outputs, 8 digital inputs, and 8 digital outputs onboard. It extends with up to 10 further S500 I/O modules and runs on a 20.4-28.8 V DC supply inside an IP20 housing.

Technical Specifications

Order code 1SAP224100R0001
Type code CI541-DP
Brand ABB
Series Communication interface modules
EAN 4016779866248
Function PROFIBUS slave. 4 AI: U, I, RTD. 2 AO: U, I. 8 DI: 24VDC. 8 DO: 24VDC 0.5A
Hardware Interface RS-485 (PROFIBUS DP slave)
Extendable With Up to 10 additional S500 I/O modules
Analog Inputs 4
Analog Outputs 2
Digital Inputs 8
Digital Outputs 8
Input Voltage Type DC
Input Voltage (Uin) 24 V DC
Input Current 5 mA
Input Delay Time 0.1 - 32 ms
Output Type Transistor
Output Voltage Type DC
Output Current 0.5 A
Output Voltage Range 20.4 - 28.8 V
Degree of Protection IP20
Supply Voltage 20.4 - 28.8 V DC
Net Weight 0.134 kg
Gross Weight 0.158 kg
Dimensions (L x H x W) 62 x 76 x 67.5 mm

Selection Notes

CI541-DP matches the 4 AI, 2 AO, 8 DI, 8 DO onboard mix of the other analog-equipped head modules in this family but connects over PROFIBUS DP rather than an Ethernet-based protocol, using the module's RS-485 port instead of an Ethernet interface. That makes it the module to specify for plants standardized on PROFIBUS DP rather than PROFINET, EtherCAT, or Modbus TCP. Where the backbone is Ethernet-based instead, the corresponding Ethernet-protocol version of this module connects directly without a gateway.

Technical Details

Short Description
ABB CI541-DP PROFIBUS interface module, 4 AI, 2 AO, 8 DI, 8 DO, RS-485, IP20.
Mounting Type
DIN-Rail module
Protection Type
IP20
Catalog No
CI541-DP
Delivery Date (Days)
30 days
Model Number
CI541-DP
Tariff Code
853710
