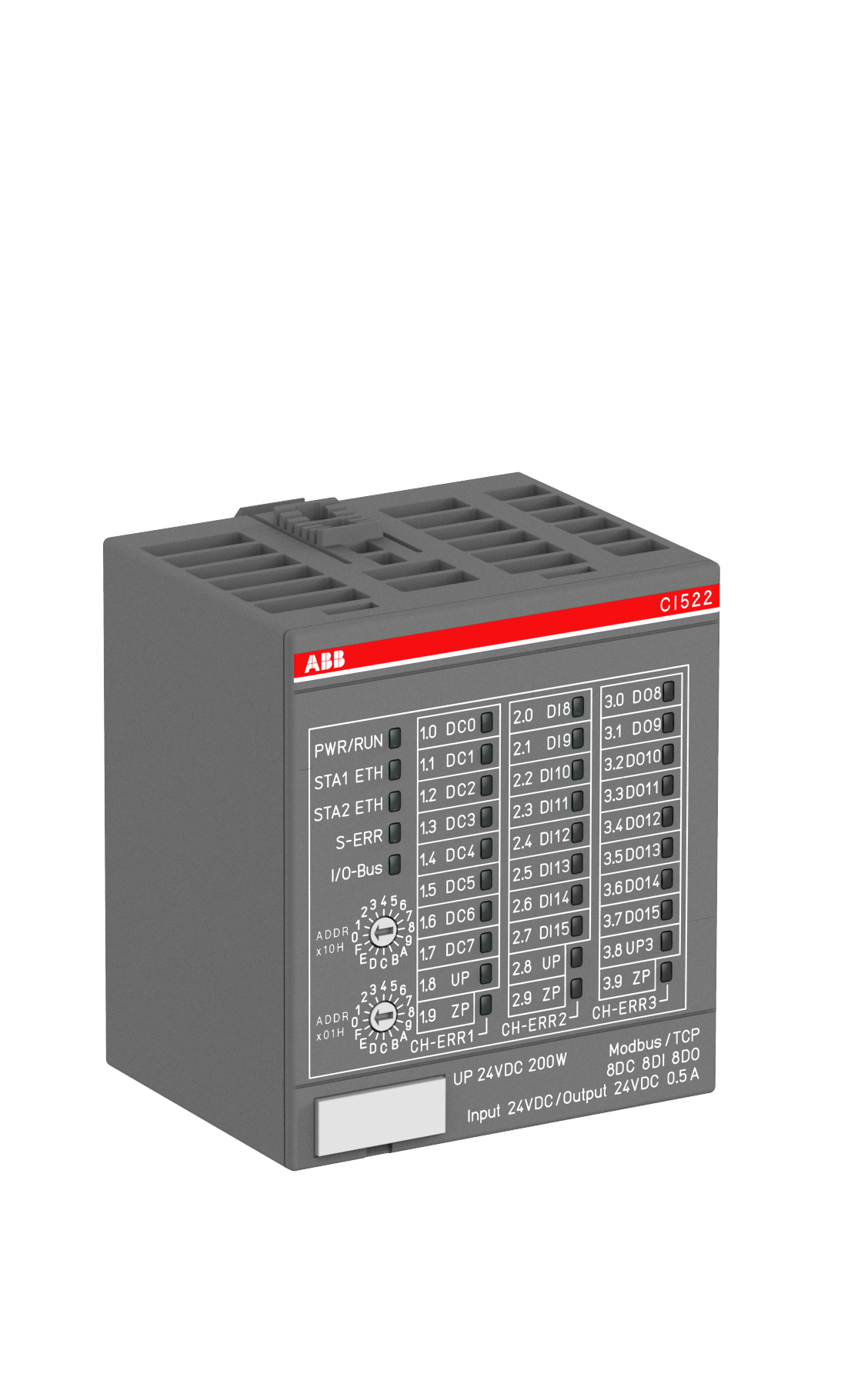

ABB 1SAP222200R0001 CI522-MODTCP Modbus TCP 8DI 8DO 8 Configurable DIO Remote I/O Module

% $-296.13
ABB 1SAP222200R0001 CI522-MODTCP Modbus TCP S500 Remote I/O Module
ABB 1SAP222200R0001 CI522-MODTCP Modbus TCP S500 Remote I/O Module

ABB 1SAP222200R0001 CI522-MODTCP Modbus TCP 8DI 8DO 8 Configurable DIO Remote I/O Module

Brand: ABB
Reference No: 1SAP222200R0001
Catalog No: CI522-MODTCP
Series: Communication interface modules
Tariff Code (HS): 853710
Communication: Modbus TCP server
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$296.13

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB's 1SAP222200R0001 (CI522-MODTCP) is the digital-only Modbus TCP server interface module in the S500 range, carrying 8 digital inputs, 8 digital outputs, and 8 configurable DI/DO points with no onboard analog channels. It extends with up to 10 additional S500 I/O modules and is housed to IP20 on a 20.4-28.8 V DC supply.

Technical Specifications

Order code 1SAP222200R0001
Type code CI522-MODTCP
Brand ABB
Series Communication interface modules
EAN 4013614485930
Function Modbus TCP server. 8 DI: 24VDC. 8 DO: 24VDC 0.5A. 8 configurable DI/DO: 24VDC 0.5A
Protocol Modbus TCP server
Extendable With Up to 10 additional S500 I/O modules
Digital Inputs 8
Digital Outputs 8
Digital Configurable I/Os 8
Input Voltage Type DC
Input Voltage (Uin) 24 V DC
Input Current 5 mA
Input Delay Time 0.1 - 32 ms
Output Type Transistor
Output Voltage Type DC
Output Current 0.5 A
Output Voltage Range 20.4 - 28.8 V
Degree of Protection IP20
Supply Voltage 20.4 - 28.8 V DC
Net Weight 0.133 kg
Gross Weight 0.157 kg
Dimensions (L x H x W) 62 x 76 x 67.5 mm

Selection Notes

Like the other digital-only head modules in this interface family, CI522-MODTCP replaces the onboard analog channels with 8 fixed DI, 8 fixed DO, and 8 configurable DI/DO, but over Modbus TCP rather than PROFINET or EtherCAT. It is the right pick for a purely digital Modbus TCP station; where any analog signal must originate at the head module, the AI/AO-equipped Modbus TCP variant in this family covers that instead.

Technical Details

Short Description
ABB CI522-MODTCP Modbus TCP interface module, 8 DI, 8 DO, 8 configurable DI/DO, IP20.
Mounting Type
DIN-Rail module
Protection Type
IP20
Catalog No
CI522-MODTCP
Delivery Date (Days)
30 days
Model Number
CI522-MODTCP
Tariff Code
853710
